0.3mm-3.0mmx500mm brass foil coil slitting machine
0.3mm-3.0mmx500mm brass foil coil slitting machine can process all kinds of cold-rolled and hot-rolled coil plates,brass coi, stainless steel, aluminum plates and various kinds of metal plates after electroplating or coating, and cut them into various fixed length plates with different specifications, and can be attached with trimming function .
Composed of coil car, double support un-coiler, pre-leveler, finish-leveler, length gauge, cut to length machine, stacker, servo driven system, etc. as well as pendulum middle bridge, pressing and guiding device and steering device.
The production line is characterized by high automation, high slitting accuracy, stable and reliable machine performance, and convenient operation and maintenance.
Main Technical Parameter :
| Type | BP1.2×1000 | BP2x1300 | BP3x1600 | BP4x1800 | BP6x2000 | BP8x2200 |
| Thickness Range | 0.11-1.2mm | 0.25-2.0mm | 0.3-3.0mm | 0.5-4.0mm | 0.8-6.0mm | 1.0-8.0mm |
| Max Width
(Customized) |
1000mm | 1300mm | 1600mm | 1800mm | 2000mm | 2200mm |
| Linear Speed | 0-60m/min | 0-60m/min | 0-60m/min | 0-60m/min | 0-40m/min | 0-40m/min |
| Cutting length
(Customized ) |
300-4000mm | 300-4000mm | 300-6000mm | 300-6000mm | 500-6000mm | 500-6000mm |
| Max Cutting pieces
(Adjustable) |
30pcs/min | 30pcs/min | 30pcs/min | 30pcs/min | 30pcs/min | 20pcs/min |
| Cutting length Precision | ±0.3 | ±0.3 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Max Coil Weight | 15Ton | 20Ton | 30Ton | 30Ton | 40Ton | 40Ton |
| Leveling Diameter | Φ60mm | Φ65mm | Φ85mm | Φ100mm | Φ120mm | Φ150mm |

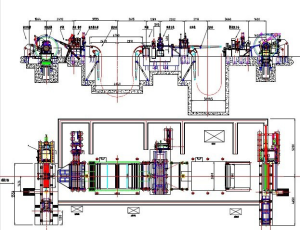

The Whole Line flowchart :
Coil loading car—-Decoiler—-coil head press, guide and shovel equipment—-Double pinch rollers—Centre aligner—-high-precision levelers( 23 rolls)—encoder —-hydraulic tracking cutting machine–pinch rolls for sheets dropping– plates-delivering roll table—-plates sending out device—-plates supporting table—plates piling up device–manual packing.
Specification:
| 0.3-3x500mm brass coil steel slitting machine | ||
| NO | NAME | TECHNICAL DATA |
| 1 | Raw material | Brass foil steel coil,HR normal carbon steel: S275JR.hot rolled carbon steel coil. |
| 2 | Coil width | 500mm |
| 3 | Thickness | 0.3-3mm |
| 4 | Max line speed | ≤150m/min, stop shear |
| 5 | Min cutting width | 10 mm |
| 6 | Occupation area of the line | 20m Length x 5m Width. |
| 7 | COIL ID | Φ100mm-Φ520mm(Φ100mm,400mm,500mm) |
| 8 | COIL OD | Ф1200mm. |
| 9 | Coil tower tolerance | ≤± 2mm |
| 10 | Maximum sickle bend with coil | ≤ 0.1M m/m |
| 11 | Cutting width tolerance | ± 0.05mm |
| 12 | Length | 2000mm-12000mm. |
| 13 | Coil weight | 4000kgs |
| 14 | Number of slitting strips | 0.1-0.5mm(≤25strips) |
| 15 | Width of coil | 20-450mm. |
0.3-3x500mm brass coil steel slitting machine sold to Korea customer.
