Angle steel roll forming machine
Angle steel roll forming machine produced by the angle steel forming equipment, commonly known as angle iron, is a long strip of steel with two sides perpendicular to each other and forming an angle shape. There are two types of angles: equal angle steel and unequal angle steel. The two sides of an equilateral angle steel have equal widths. Its specifications are based on edge width × Edge width × The thickness of the edge is expressed in millimeters.
Angle steel can be used to form various load-bearing components according to different structural requirements, and can also be used as a connection between components. Widely used in various building and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, and warehouses.
Drawing:(we can special design as customer request):
Flowchat：
Specification:
| NO | NAME | TECHNICAL DATA |
| 1 | Uncoiler | Automatic uncoiler or manual uncoiler. |
| 2 | Drive | Chain drive |
| 3 | Forming station | 12stations.according to customer drawing to design. |
| 4 | Punching | Hydraulic punching or merchnical press. |
| 5 | Machine structure | wall panel style or Torii archway |
| 6 | Cutting | Hydraulic post cutting |
| 7 | Out table | Manual or auto stacker. |
| 8 | Computer control system(PLC) | Panasonic or Simens. |
| 9 | Roller material | GCr15,Cr12,SKD11 quenching treatment:HRC58-62（optional） |
| 10 | Forming speed | 0-30m/min. |
| 11 | Raw material request: | Thickness:1-3mm,0.3-0.8mm or 3-6mm Q235,Q345 galvanized steel and hot rolled steel,stainless steel. |
| 12 | Main shaft diameter | Φ65 |
Customer case：
Steel angle roll forming machine sold to Mexico.
Steel angle punching&cutting machine sold to Saudi arabia.

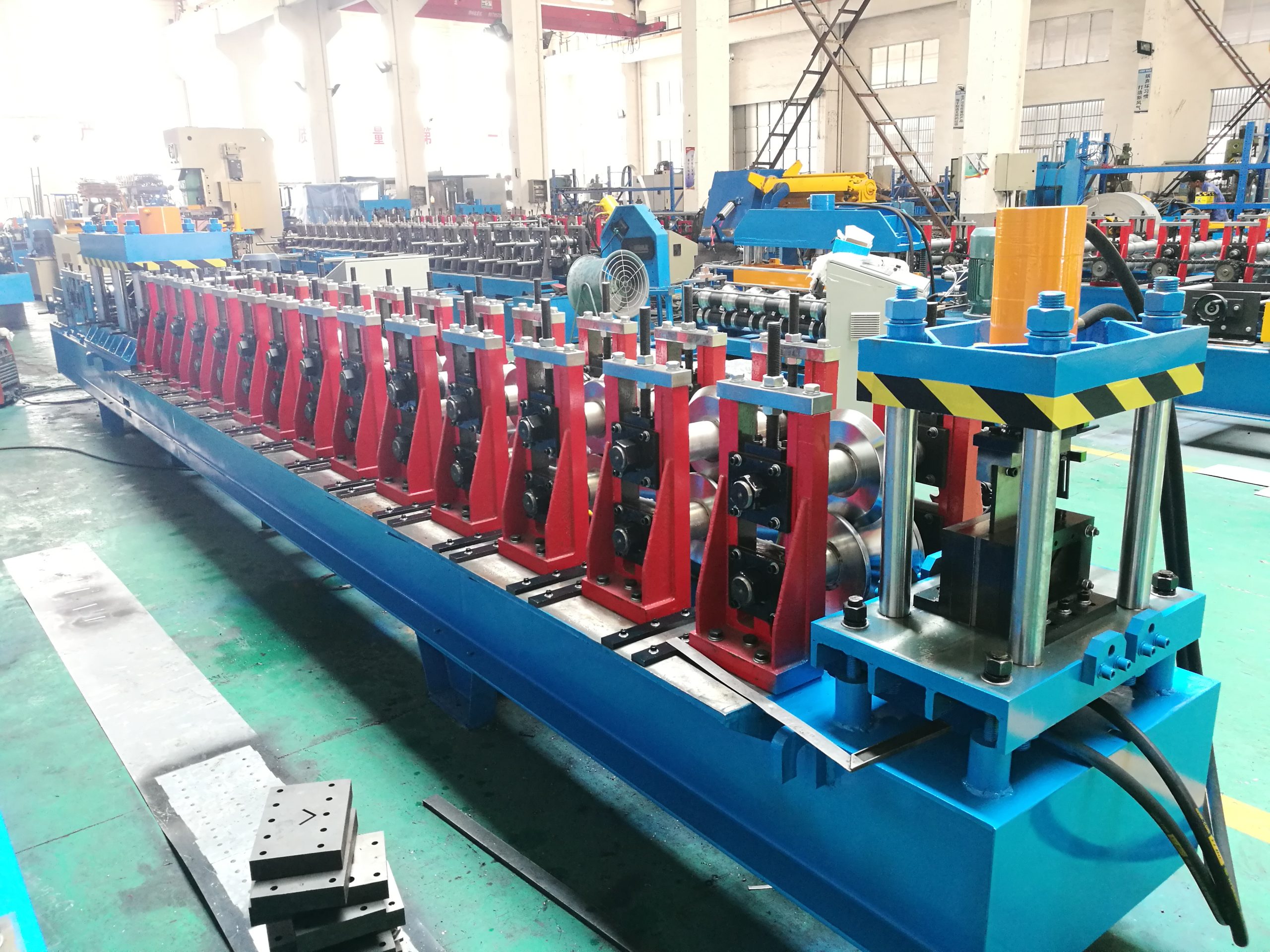

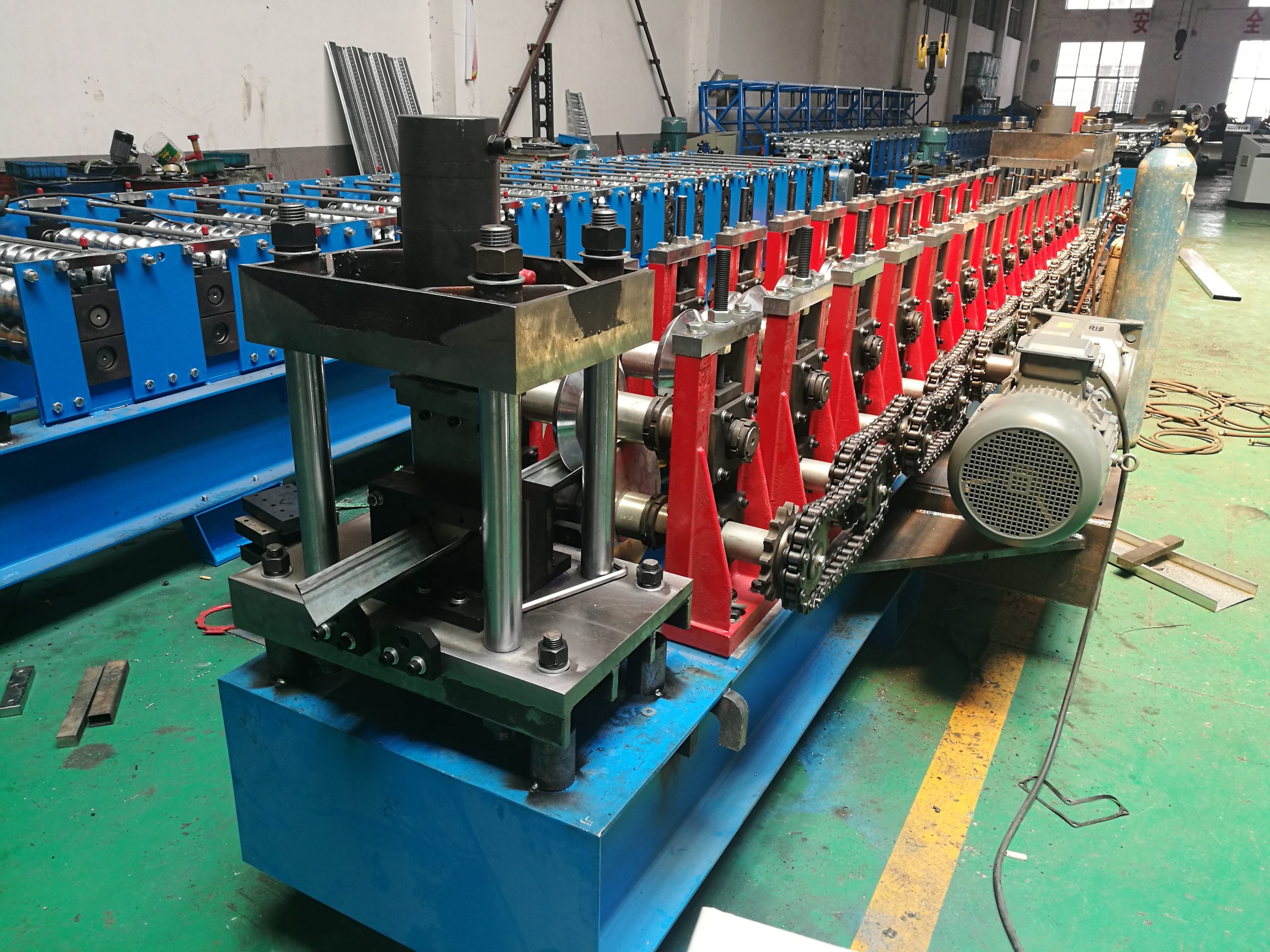

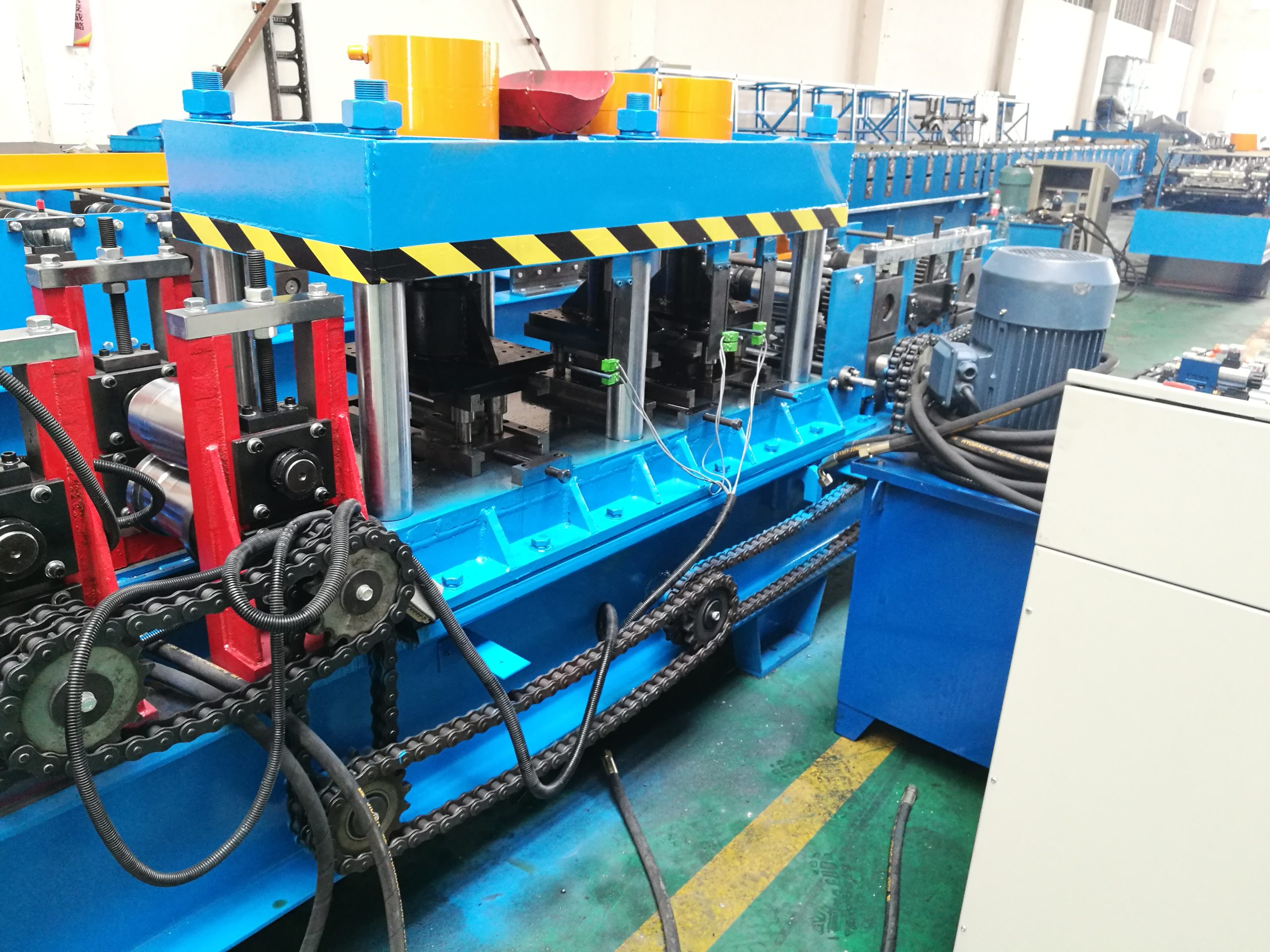

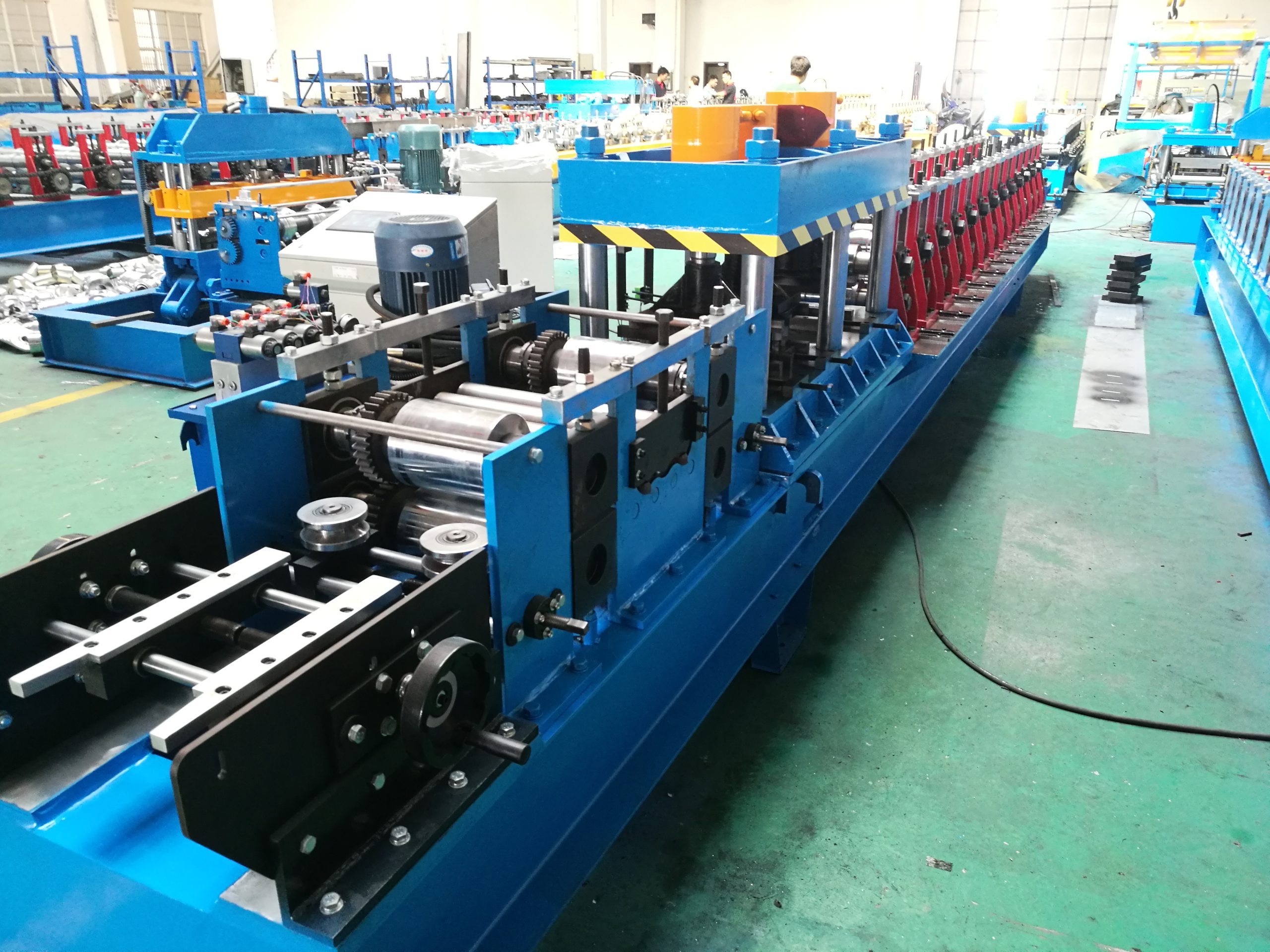

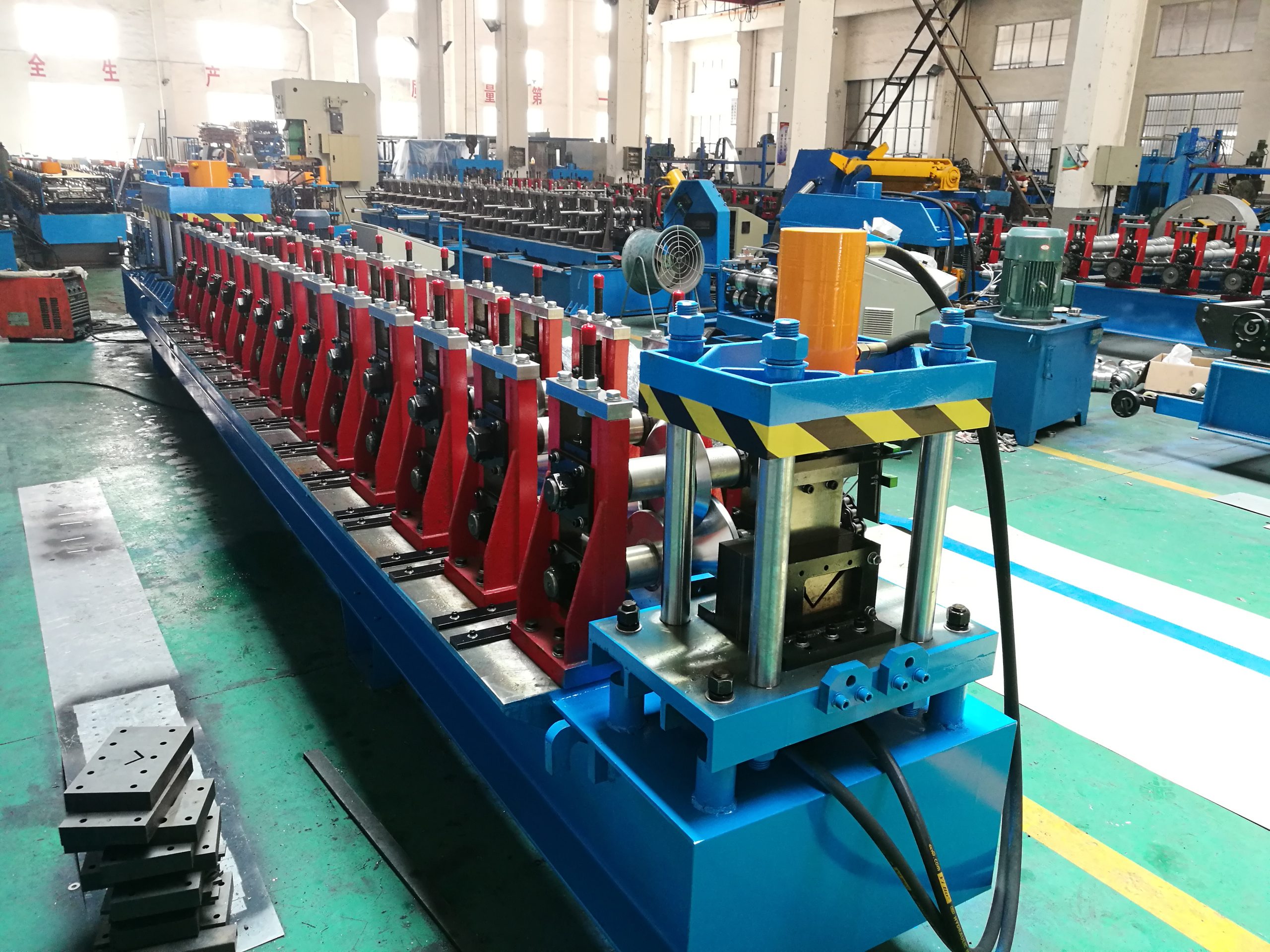

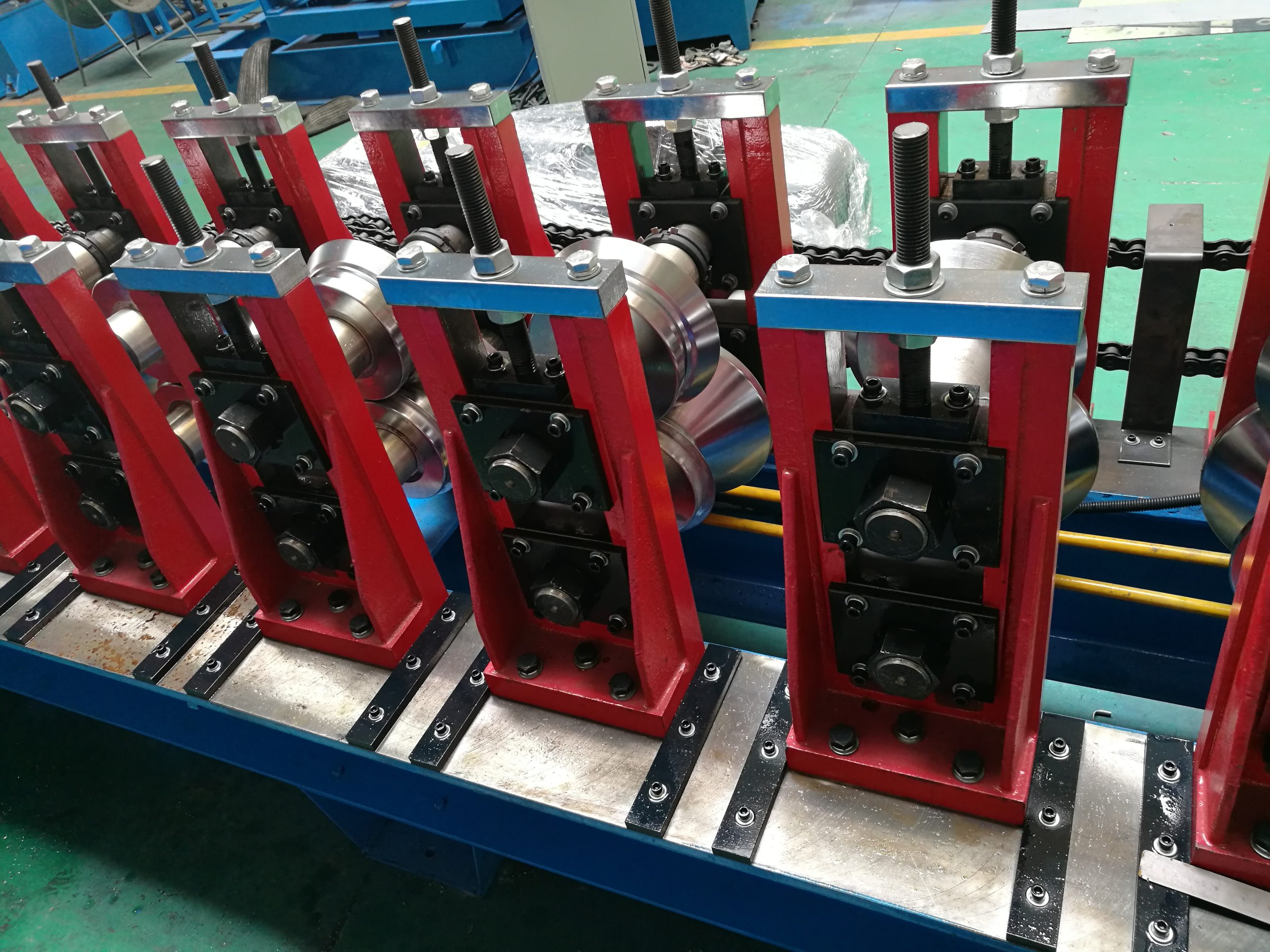

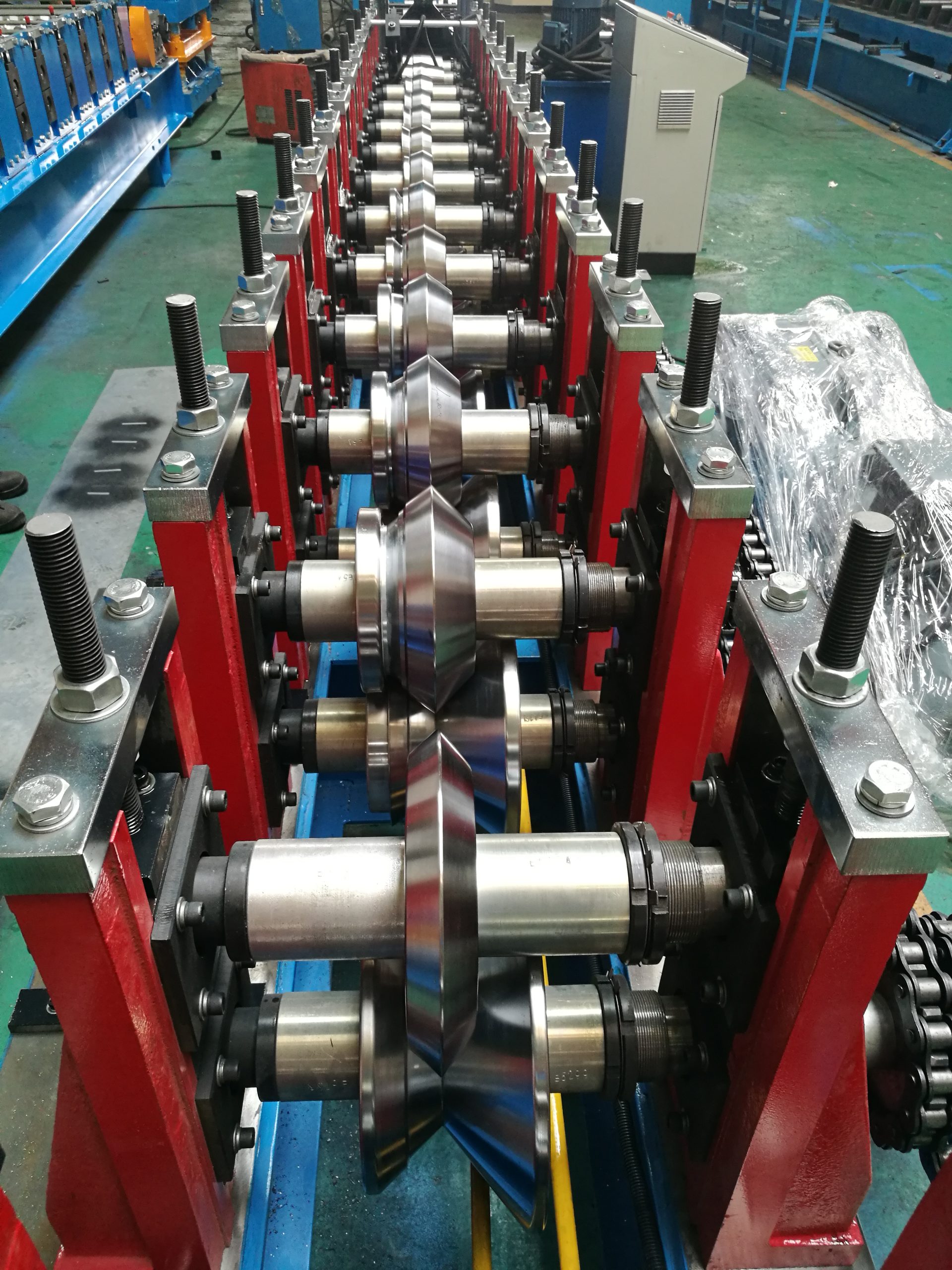

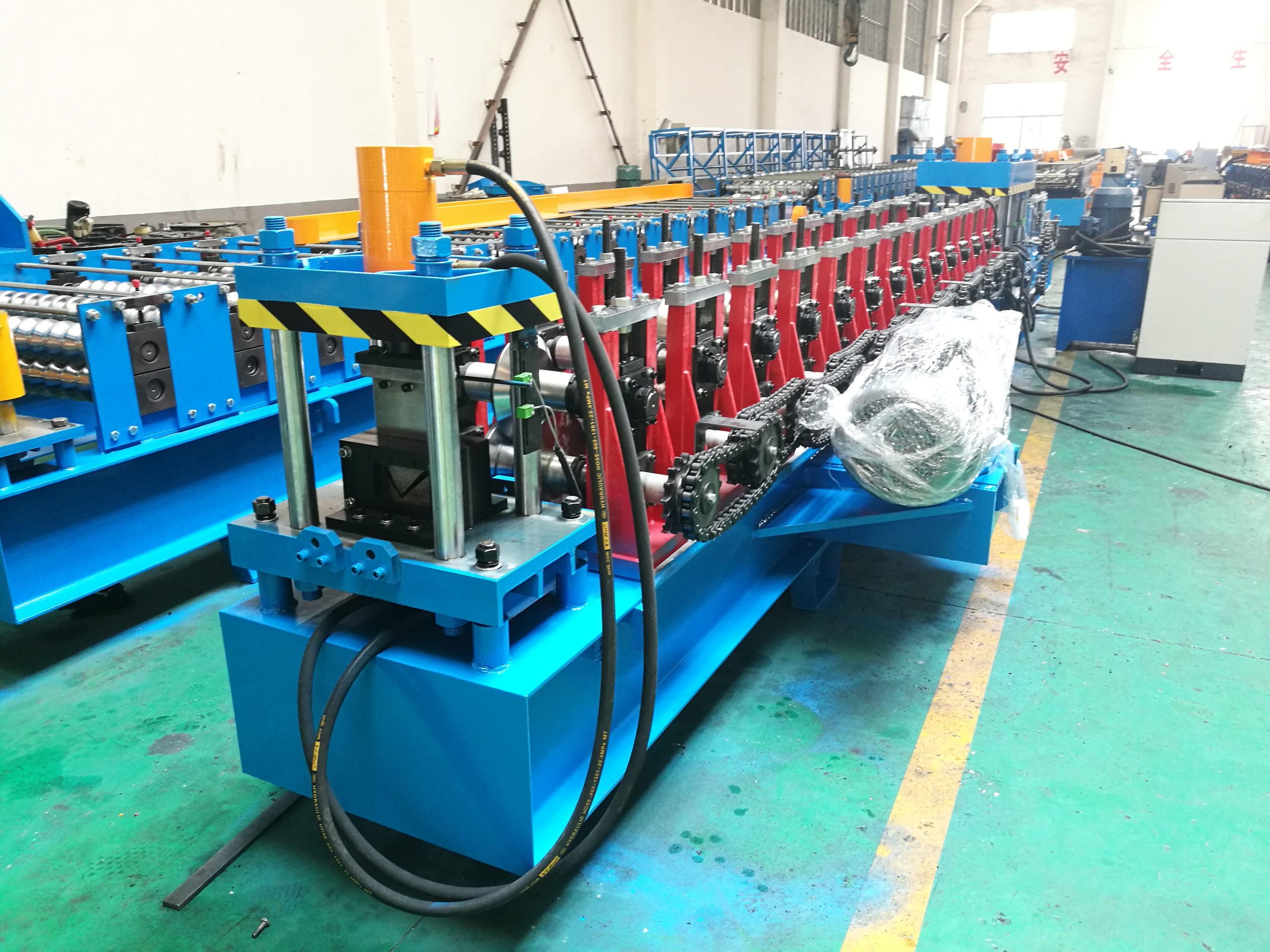

Angle steel roll forming machine components:
