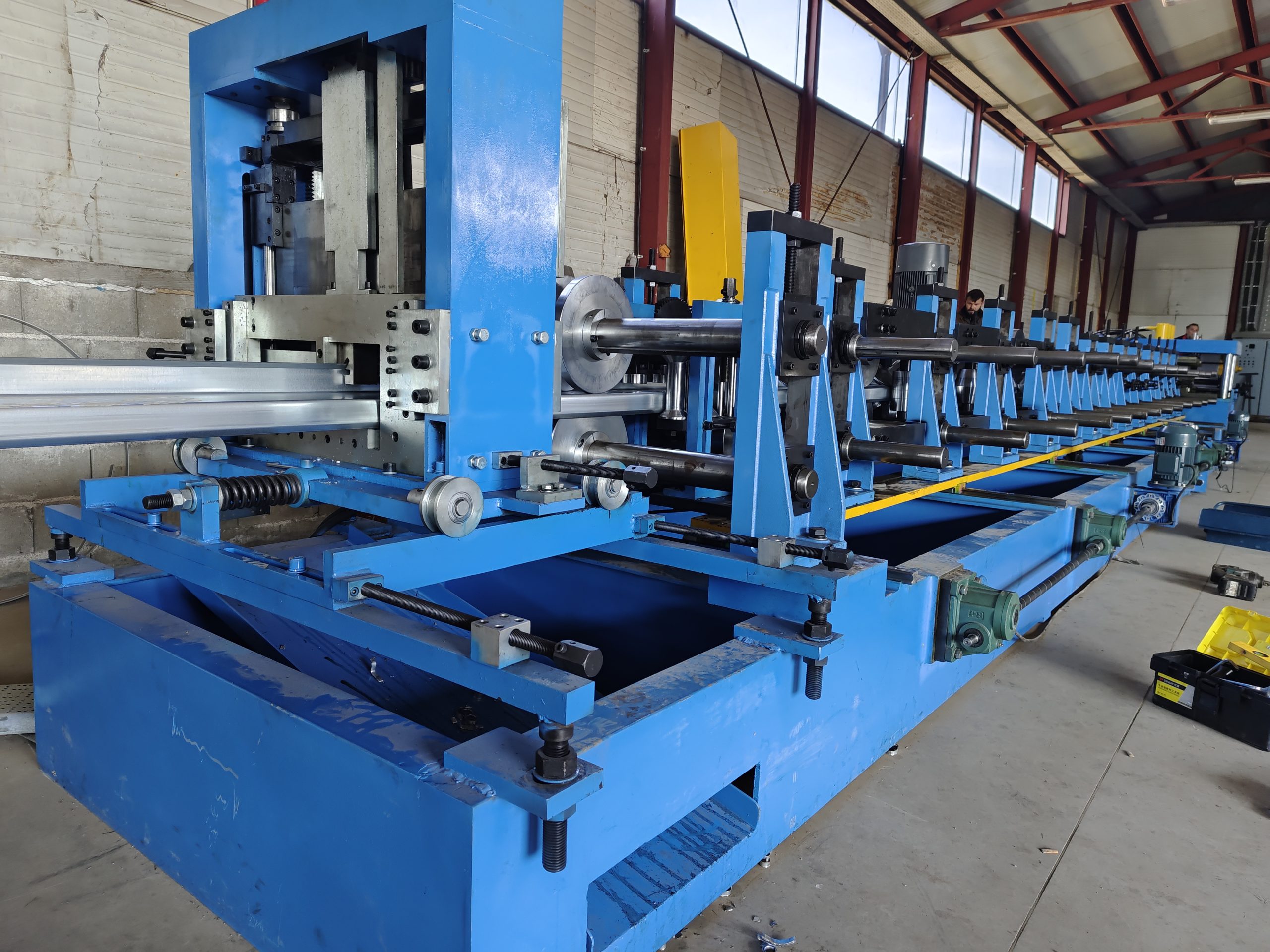

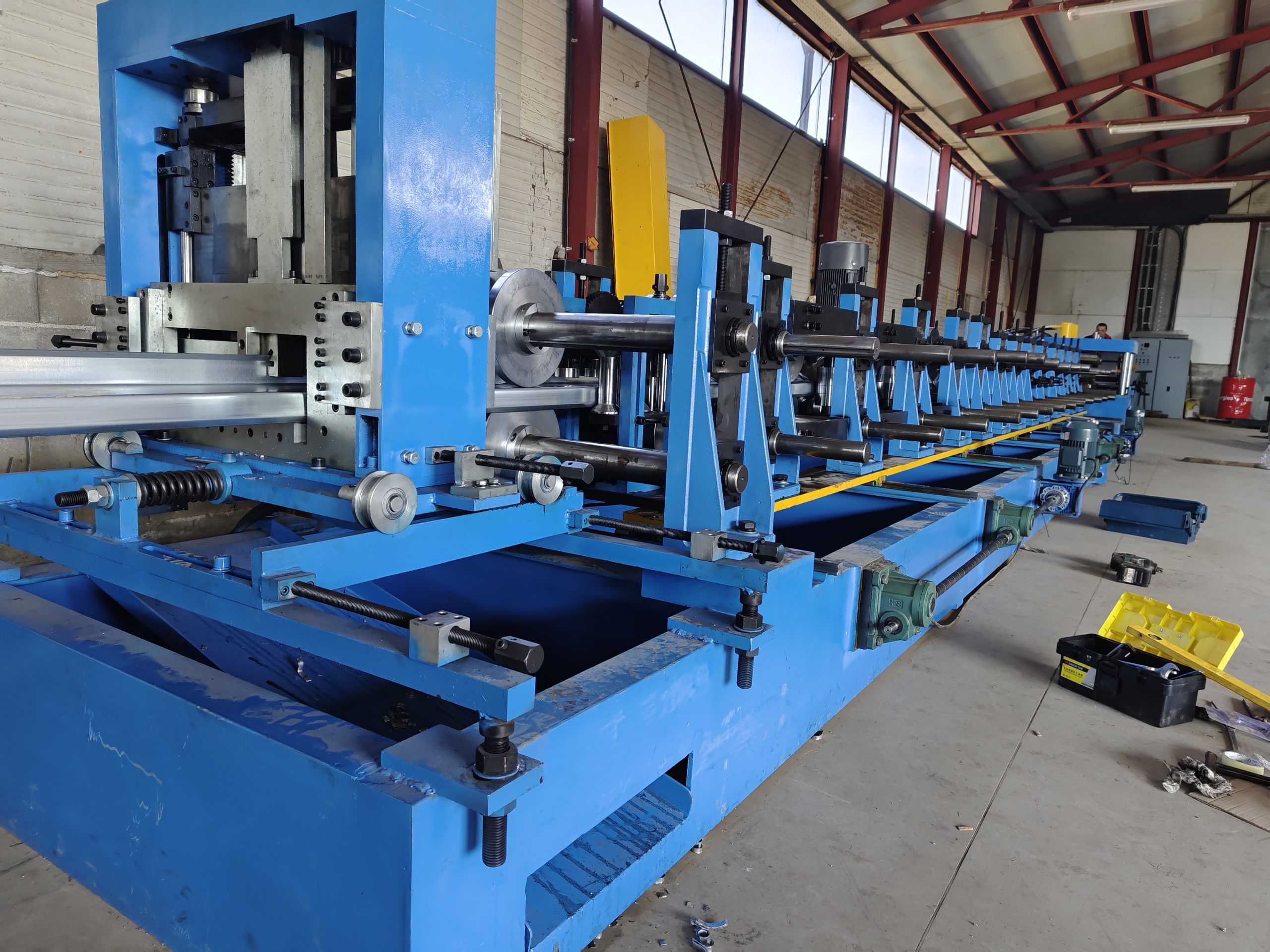

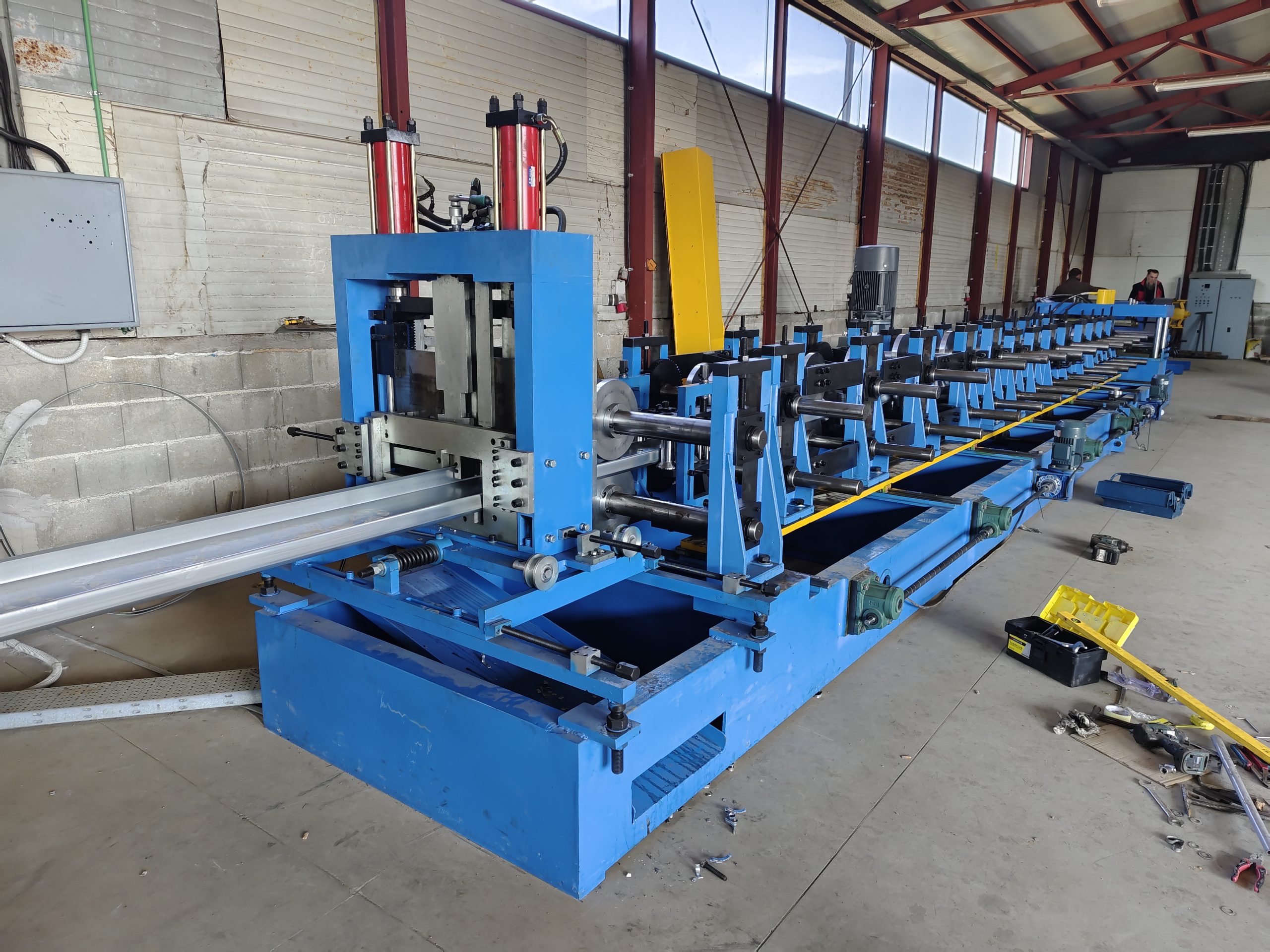

Automatic C purlin track cutting roll forming machine

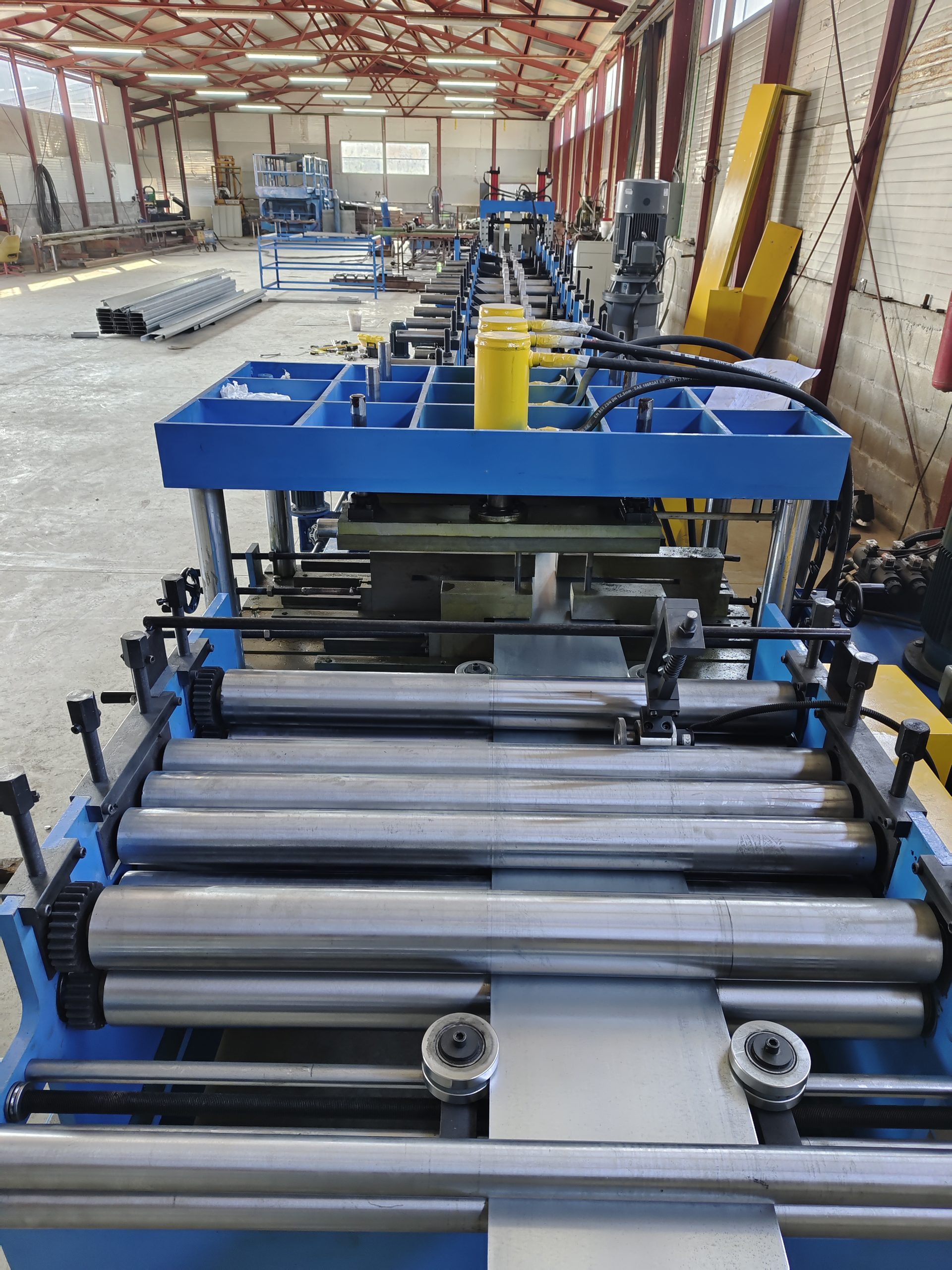

Automatic C purlin Roll Forming Machine(50mm-200mm):This machine can automaticly produce C shape and U shape in the same machine.this machine consists of:Decoiler-Guide feeding-Leveling and straighten Hydraulic cutting-Roll forming-Rectify rollers-Output table.
CUZ section steel is also known as cold-formed thin-walled section steel. In light steel structure buildings, this section steel is also called purlin,which is widely used in large industrial plants,workshops,warehouses and other light steel structure buildings.Our company’s professional manufacture high-quality C/Z/U/M Purlin Roll Forming Machine,We have experience of exporting our equipment to 40 countries all over the world like Argentina, Russia, Australia ,Saudi Arabia ,India,Philippines,ect.and won good reputation with good quality . we make different technical solutions according to the profile drawing and requirements of customers,and provide one to one services,our goal is “Honesty build the brand,quality wins the world”as the principle to cooperate with our customer.
Machine Drawing:
Layout of whole line:
Specification:
| NO | NAME | TECHNICAL DATA |
| 1 | Forming station | Normally 20stations or more.accroding to customer drawing to design. |
| 2 | Machine structure | wall panel style or cast iron rack system |
| 3 | Punching | You can without punching,or hydraulic punching or merchnical press. |

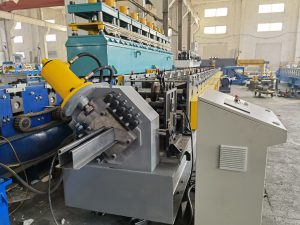

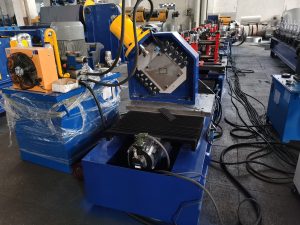

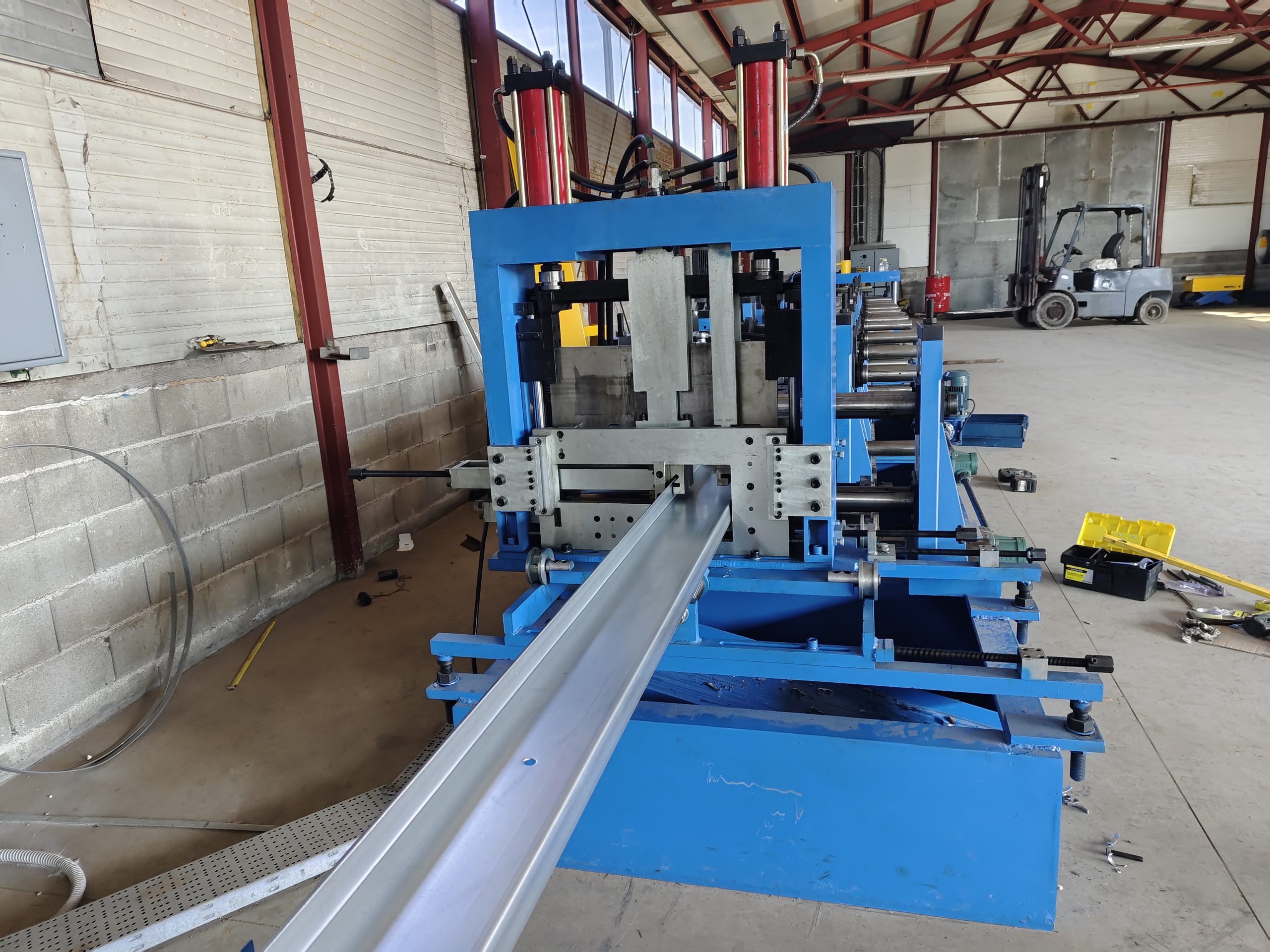

| 4 | Cutting | Hydraulic post cutting or fly shear or pre-cutting |

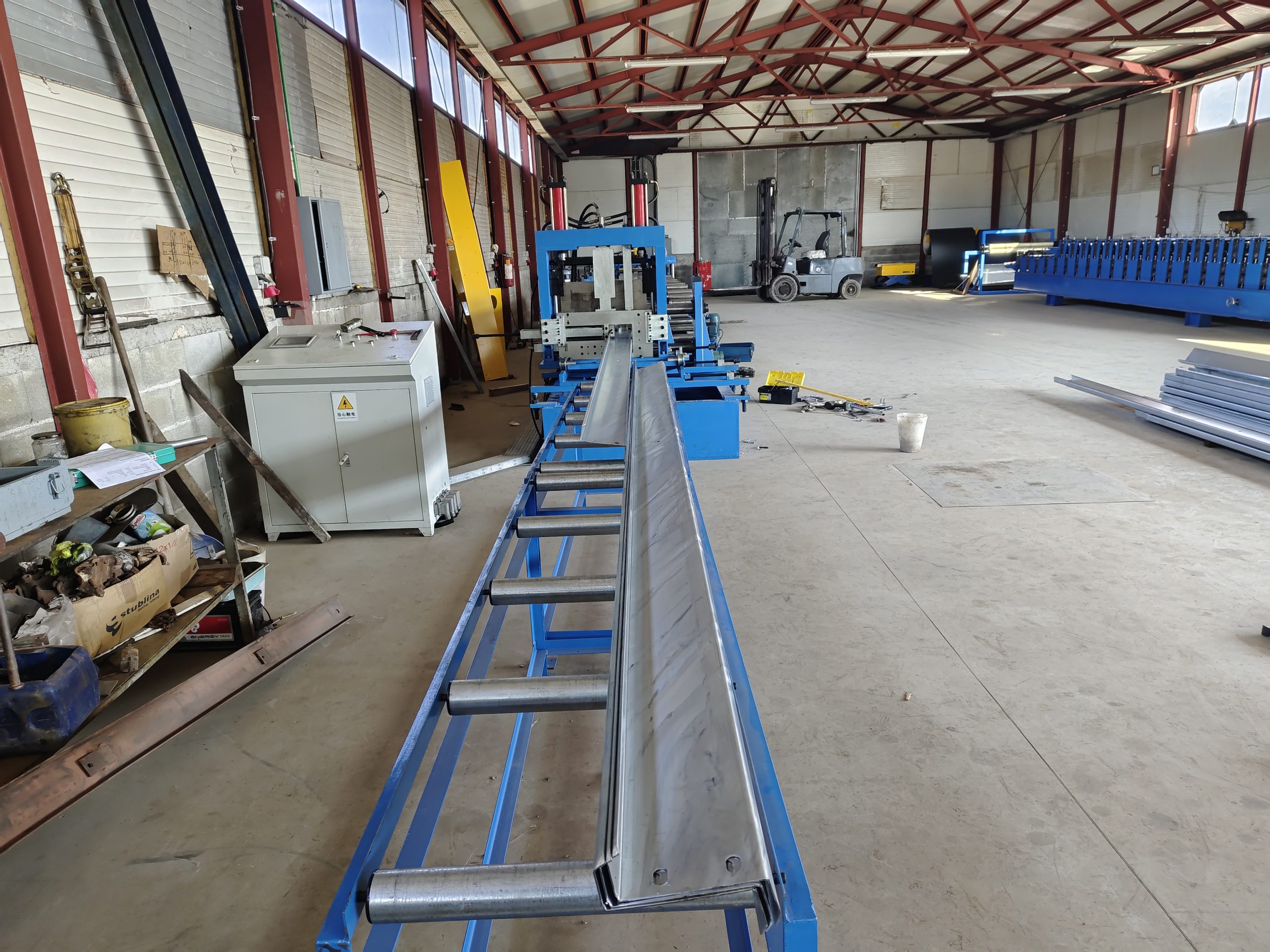

| 5 | Out table | Manual or automatic |
| 6 | Computer control system(PLC) | Panasonic or Simens |
| 7 | Roller material | GCr15,Cr12,SKD11 quenching treatment:HRC58-62（optional） |
| 8 | Driving | Chain drive or gearbox drive |
| 9 | Forming speed | 0-25m/min |
| 10 | Raw material request: | thickness 1.0-3.5mm,Q235,Q345 galvanized steel and hot rolled steel.max thickness we can make is 7mm. |
| 11 | How to adjust sizes? | The height and width can be adjusted automatic by PLC program.he gap between upper layer rollers and bottom layer rollers can be adjusted by screw according to different thickness sheet. |

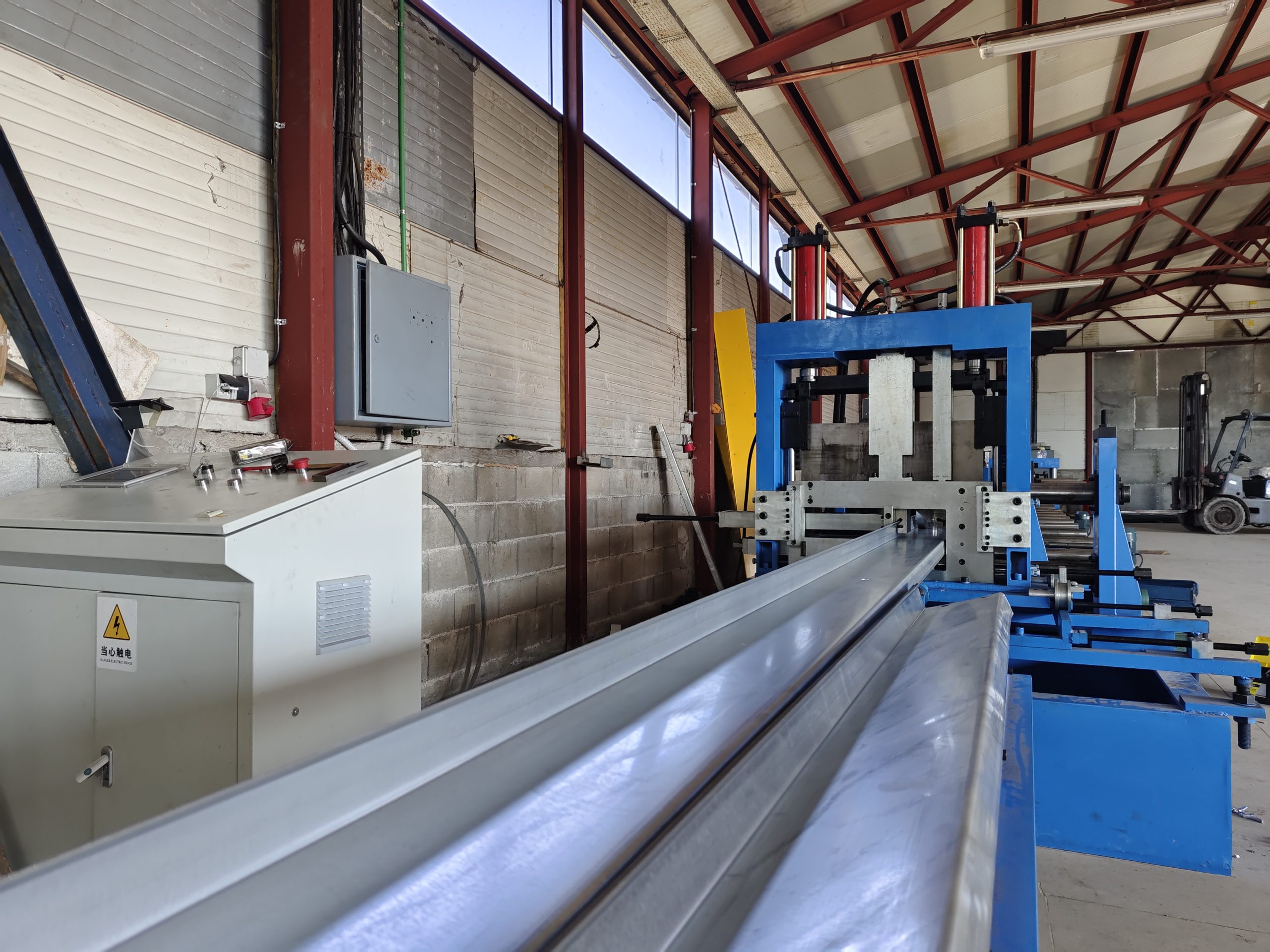

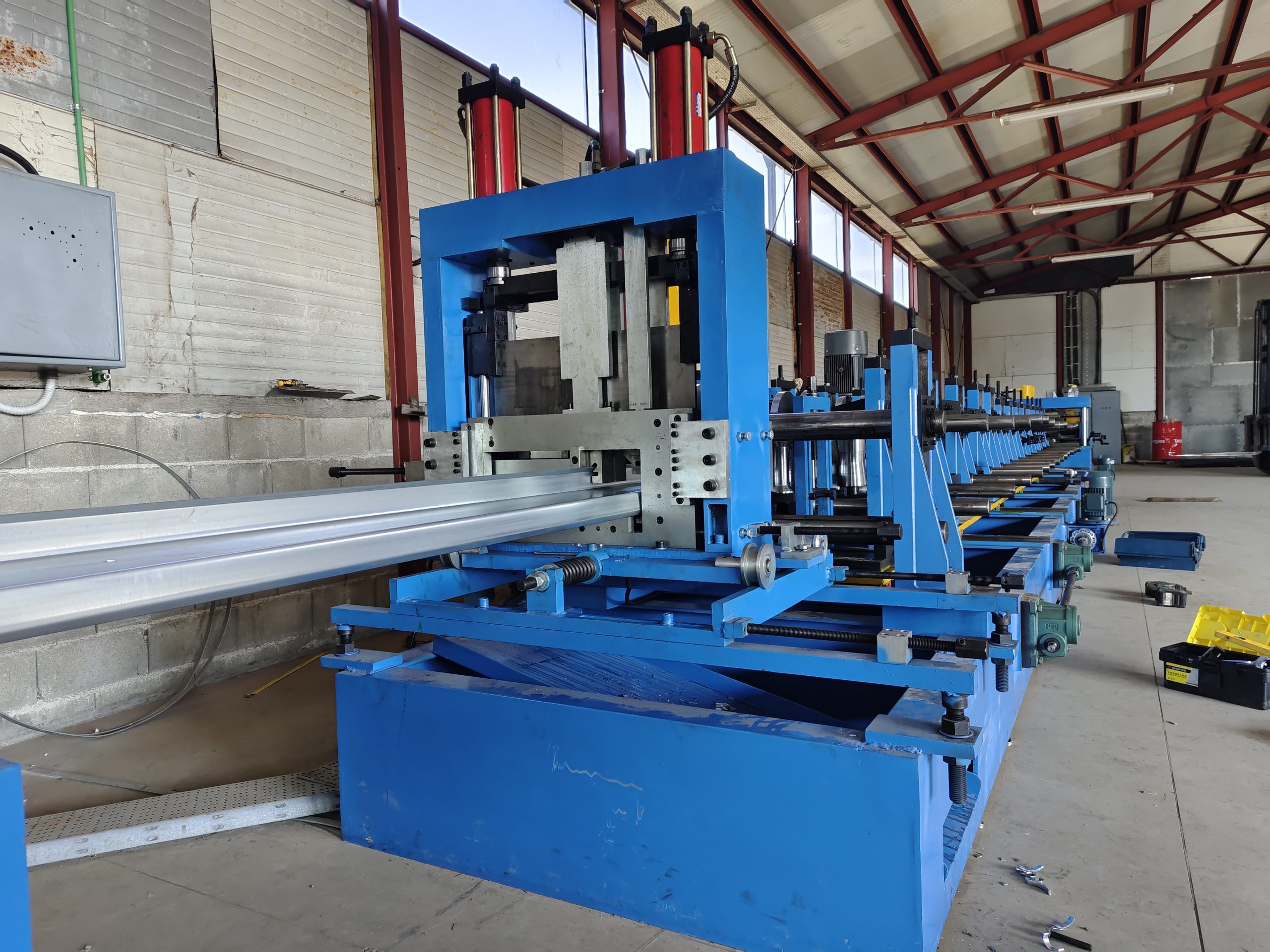

Customer case:
(Automatic traverse C purlin roll forming machine by PLC to Philippines).
(C purlin roll forming machine with post cutting to Chile)
(Z purlin roll forming machine with post cutting to Saudi arabia)
(C purlin roll forming machine with post cutting to Colombia)

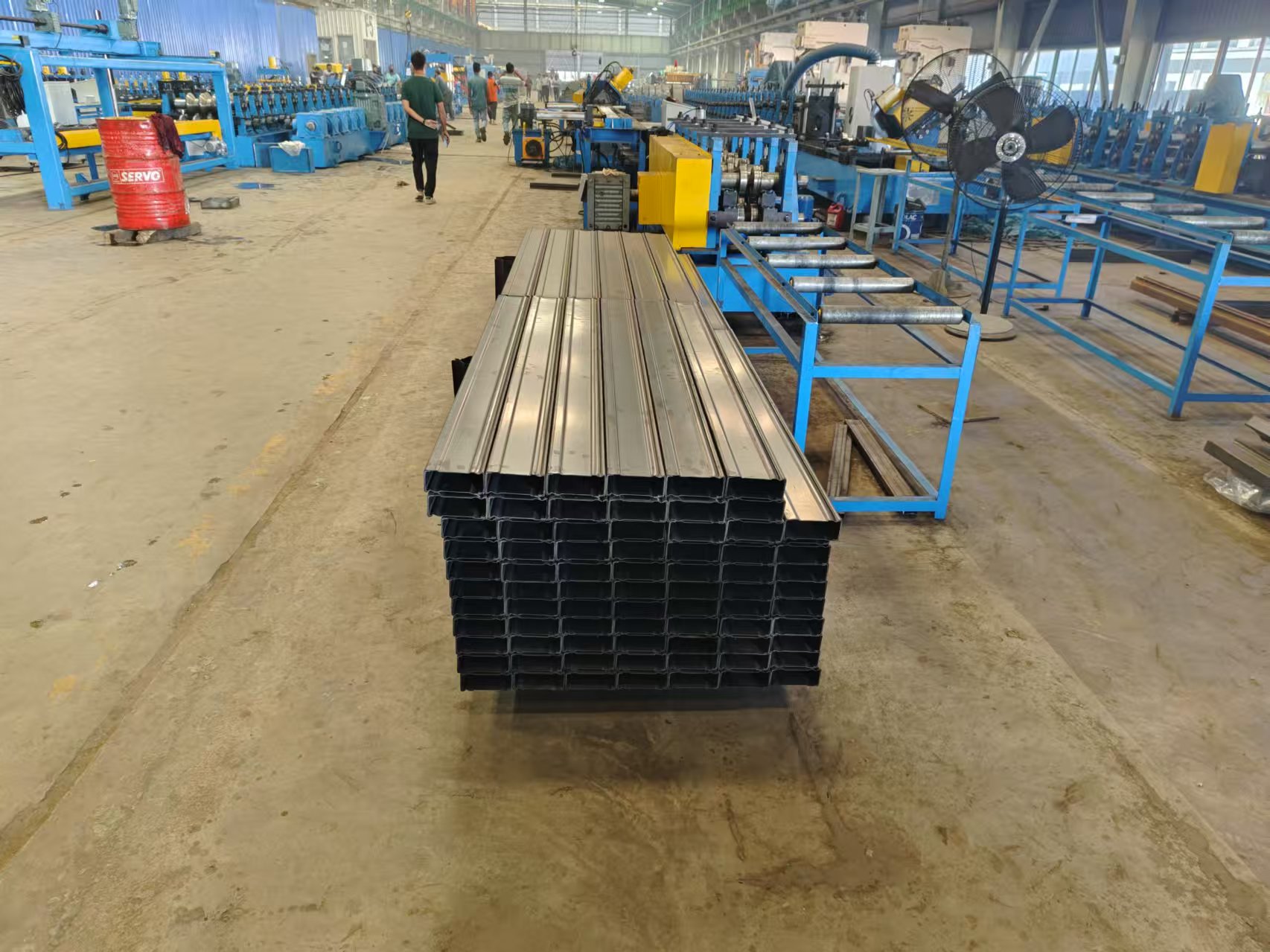

CZU products for reference:
