BP165/BP219/BP273 High frequency welding pipe machine
BP165/BP219/BP273 welding pipe machine consists of Raw material (steel strip coil) →uncoiling→shear and butt-welder→material accumulating→passively leveling→forming machine→high frequency welding →remove the burrs outside→cooling →sizing machine→straightening→fixed length cutting →run out table→finished tube.
We provide ideal solution to manufacture different shapes pipes and materials.shapes: round pipe, square & rectangle tubes, oval tube, abnormity tubes;Materials: Galvanized steel pipe, black pipe, high strength steel pipe, aluminum & copper & alloy pipes, stainless steel tube, seamless steel pipes etc.Bigpower can supply: Carbon Steel Pipe Making Machine, Galvanized Pipe Mill Line, Black Pipe Mill Line, High Strength Steel Pipe Production Line, Aluminum Tube Mill Line, Alloy Tube Mill Line, Seamless Steel Cladding Calcium Wire Line, Direct Square Tube Mill Line, Big Size Tube Mill Line, Industrial Stainless Steel Tube Mill Line etc.
Advantage：
1.High-quality materials, strict process requirements, and first-class brand accessories
2.High speed, high precision, high yield, low failure rate, stable performance
3.More configurations are available for customers to choose
4.Customized machines.
5.After-sales service response within 24 hours.
Flowchat:
Specification:
| NO | NAME | TECHNICAL DATA |
| 1 | Outer diameter | Φ89mm～Φ219mm |
| 2 | Wall thickness | δ2.5mm～8.0mm,square pipeδ≤6.0mm |
| 3 | Speed | 12M/min～35M/min |
| 4 | Length | 5M～12M |
| 5 | Max coil weight | ≤10000kg |
| 6 | Uncoiler | OD:Φ1200～1600mm ID:Φ500mm～Φ600mm |

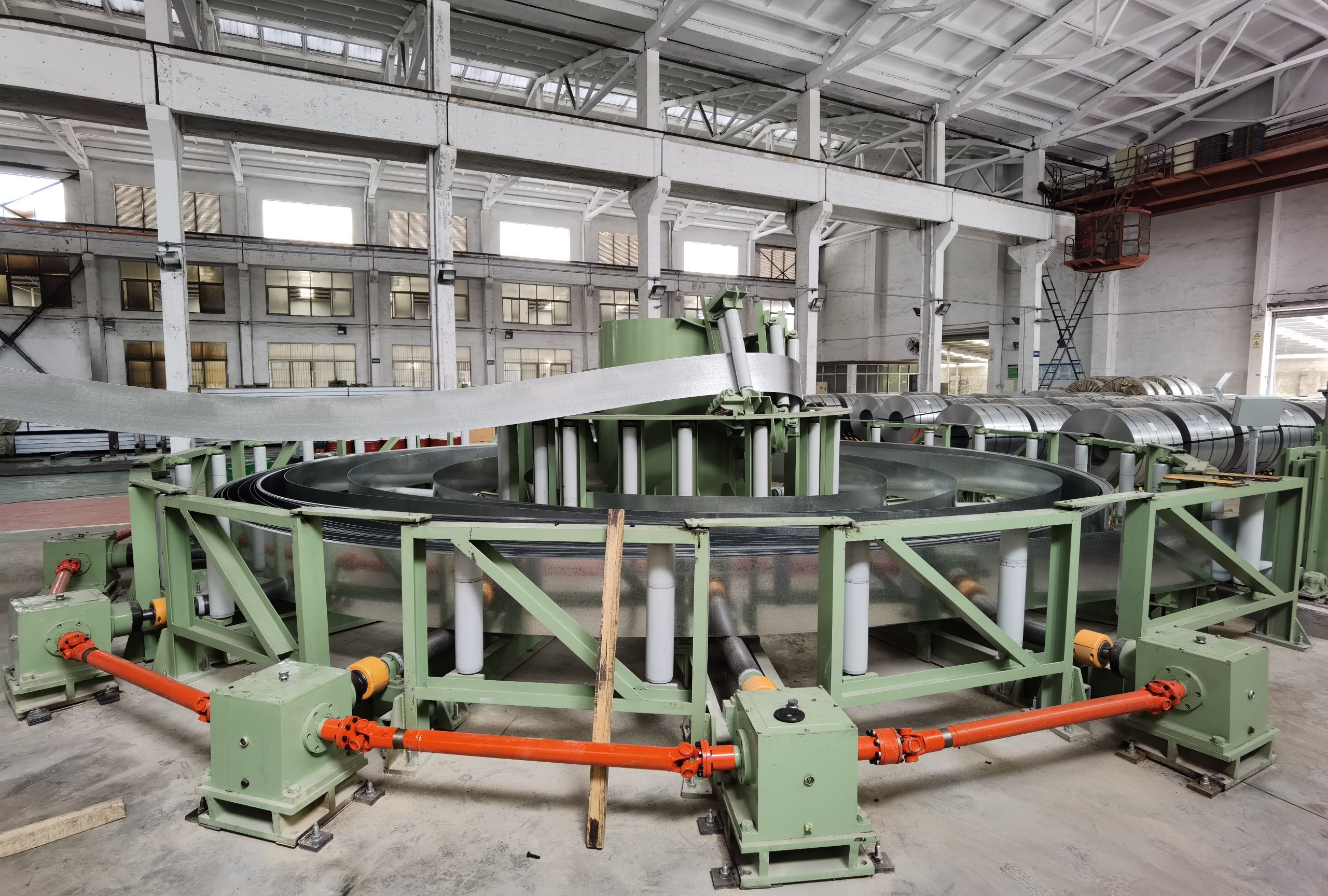

| 7 | Horizontal accumulator | Diameter:4.2m，feeding speed:180m/min. |
| 8 | Forming unit | 7horizontal rollers+8rollers vertical rollers. |
| 9 | Sizing unit | 5horizotal rollers+5vertical rollers |
| 10 | Cutting saw | Computer hot cutting saw |
| 11 | Total power | About 1450KW |
| 12 | Occupy | L100M×W6M |
Welding pipe machine components:
Technical form of HF welding pipe machine:(this is only for reference,we can design according to different customer requirement).
| Model | Diameter | Wall thickness | Square pipe(mm) | Speed(m/min) | Rectangle pipe | Pipe Length |
| BP165 | Φ50.8mm～Φ165mm | 2.0mm～6mm，square pipe≤4.5mm | 50×50-130×130 | 15～50 | 40×60mm-120×140mm | 4M-10M |
| BP165-219 | Φ114mm～Φ219mm | δ1.2mm～6.0mm | 90×90mm～170×170mm | 20～50 | 80×100mm-160×180mm | 5M-12M |
| BP219 | Φ89mm～Φ219mm | 2.5mm-8.0mm,square pipeδ≤7mm | 70×70-170×170 | 10～40 | 80×100mm～160×180mm | 5M-12M |
| BP219-273 | Φ114mm～Φ273mm | 2.5mm～8.0mm | 90X90-210X210(2.5-6.0) | 12-30 | 80×100mm-180×220mm | 5M-15M |
| BP325 | Φ168～Φ325 | δ3.0～10.0 | 130×130~250×250 | 12-30 | 100X160-200X300 | 5M-15M |
| BP530 | Φ219～Φ530 | δ3.5～12.0 | 170×170~400×400 | 12-30 | 140X200-300X500 | 5M-15M |
