Carriage board roll forming machine
The carriage panel is formed by carriage board roll forming machine, with a cross-section of V-shaped, U-shaped, and T-shaped waveforms. It is mainly used for wall/roof panels, with a thickness of 0.4-1.5mm. The material can be stainless steel, galvanized coil, aluminum-zinc plate, aluminum alloy plate, aluminum magnesium alloy plate, HR and CR carbon steel.The use of car compartment panel equipment is relatively extensive. It can be used in various types of vehicles such as automobiles, electric vehicles, and agricultural tricycles, as well as automatic rolling forming equipment for automobiles. In addition, it is also equipped with production equipment and supporting installation equipment for automobile profile steel in various places such as the production of car carriage columns, car bottom beams, car left right rear side panels, and car front fenders.The production of car compartment panel equipment often depends on the different requirements of customers. Generally, production can be carried out on the production line, which can fully realize uncoiling, guiding leveling, and automatic tracking, sizing, and cutting at one time. The molding of car compartment panel equipment is very good and efficient. It has been sold to major car manufacturers abroad and has received good praise from customers.
Drawing:(we can special design as customer request):
Flowchat:
Specification:
NO | NAME | TECHNICAL DATA |
1 | Uncoiler | Automatic uncoiler or manual uncoiler. |
2 | Drive | Chain drive or gearbox drive. |
1 | Forming station | 30-40stations.according to customer drawing to design. |
2 | Machine structure | wall panel style or cast iron rack system. |
3 | Punching | Hydraulic punching or merchnical press. |
4 | Cutting | Hydraulic post cutting or fly saw cutting. |
5 | Out table | Manual or auto stacker. |
6 | Computer control system(PLC) | Panasonic or Simens. |
7 | Roller material | GCr15,Cr12,SKD11 quenching treatment:HRC58-62(optional) |
8 | Driving | Chain drive or gearbox drive. |
9 | Forming speed | 0-16m/min. |
10 | Raw material request: | Thickness:1-2mm,4-6mm Q235,Q345 galvanized steel and hot rolled steel,stainless steel. |
11 | Main shaft diameter | Φ110mm. |
Customer case:

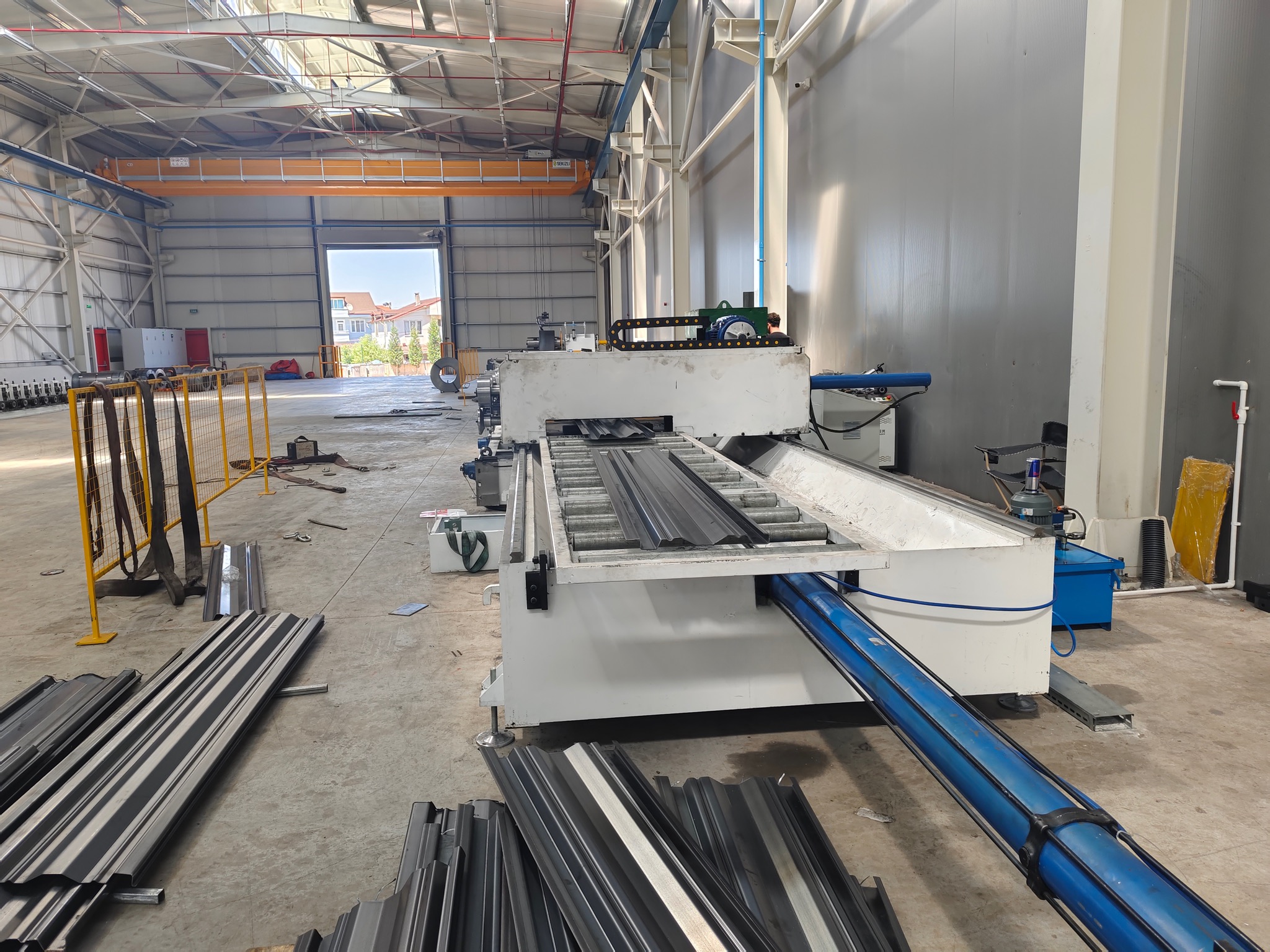

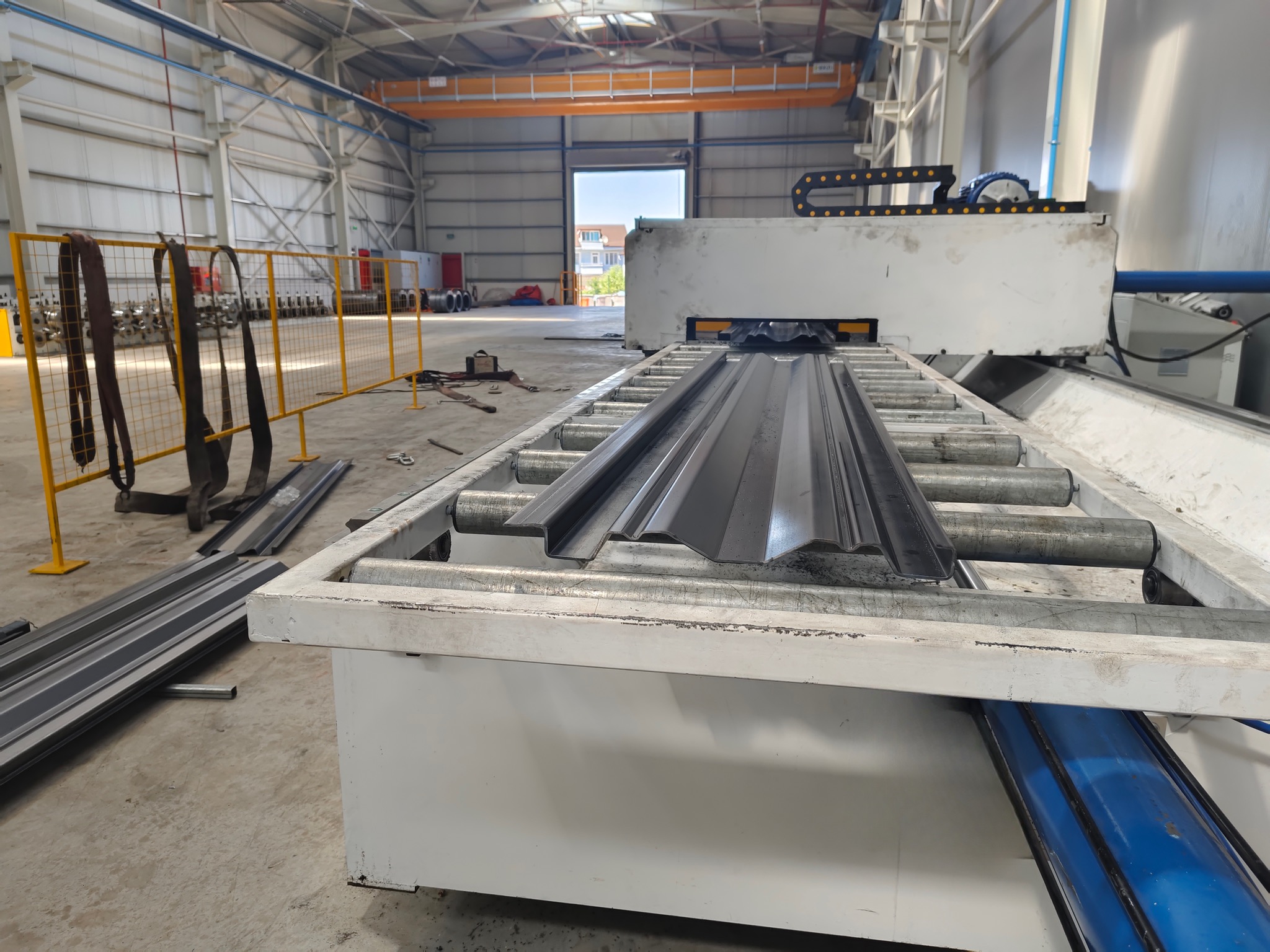

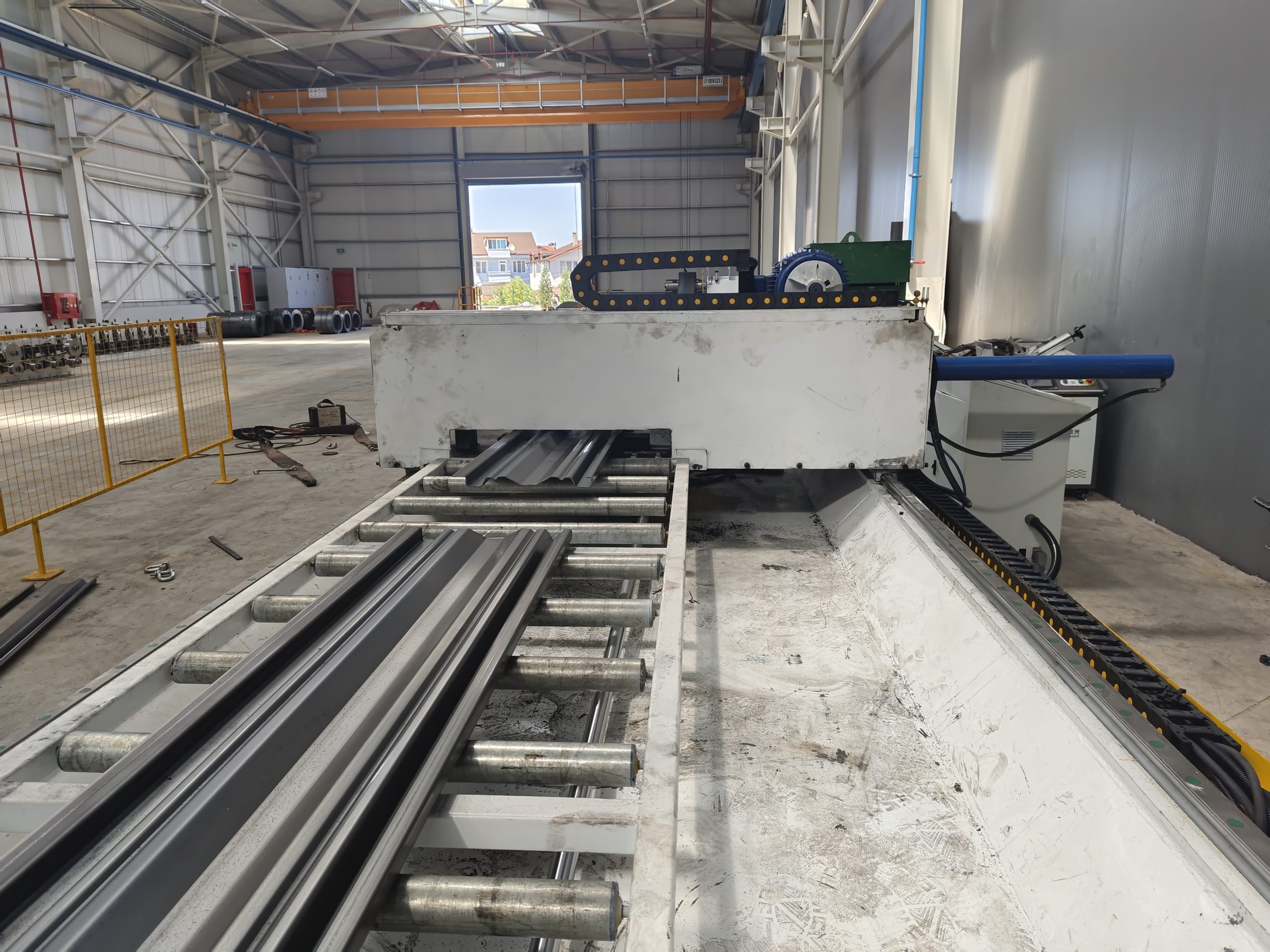

Train carriage board roll forming machine sold to India.
