Deck floor roll forming machine
Our factory has produced a lot of floor decks, and this year we have innovated track-cut floor deck, which greatly improves the speed and efficiency, and is highly valued by USA customers.Deck floor sheets are widely used in power plants,power equipment companies, automobile exhibition halls, steel structure workshops, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers,Olympic sports venues Stadiums and other steel structure buildings.

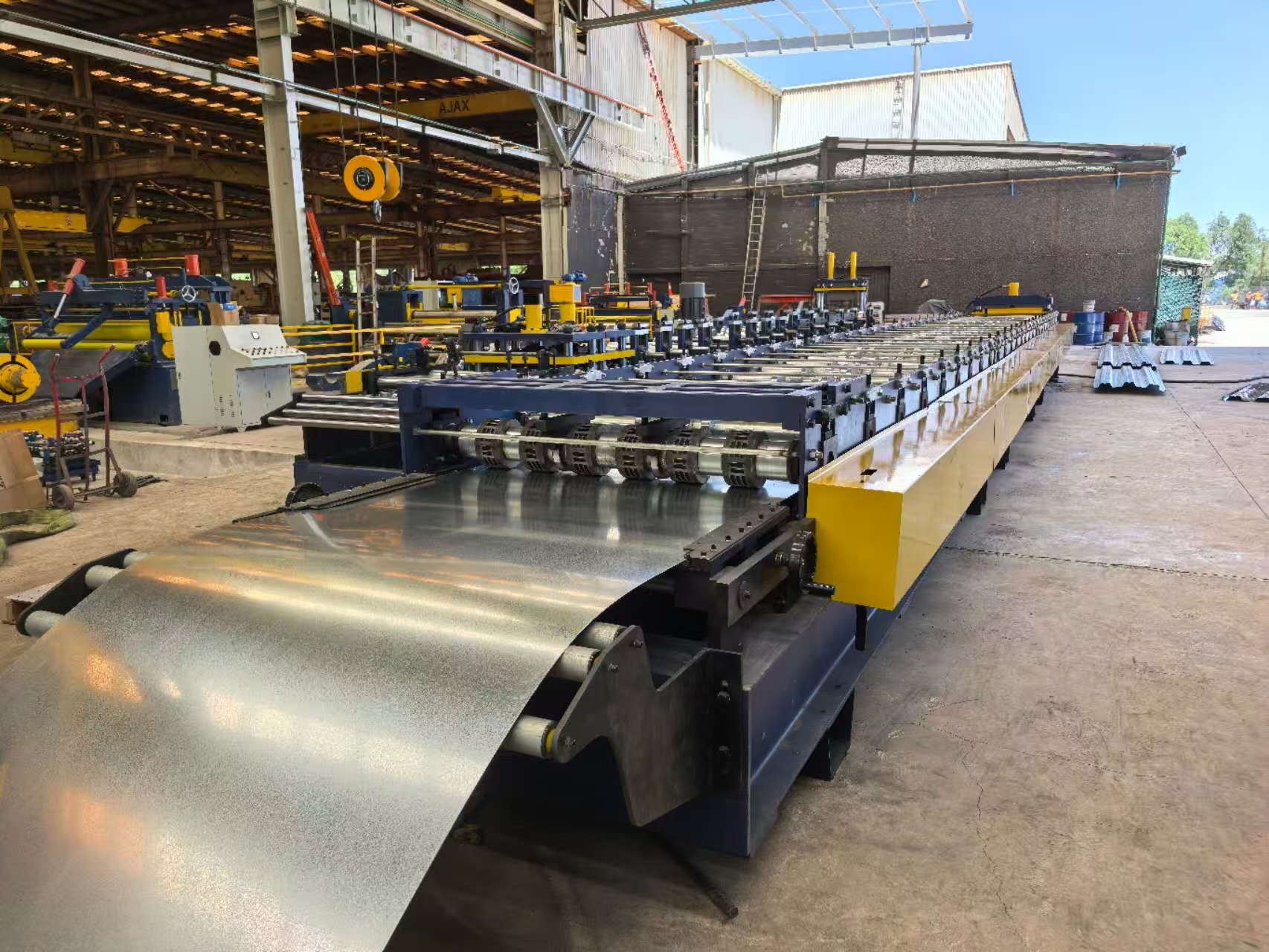

Bigpower have rich experience on producing deck floor sheet roll forming machine,we exported the new style track cutting B deck floor forming machine to USA and in the end of 2021.This equipment consists of uncoiler-feeding system-roll forming machine-punching point-hydraulic cutting-runout table.The machine speed can attached 25m/min with thickness 0.8-1.5mm,Shafts φ85mm, forming rollers GCr15, chromed plated surface is bright and not easy to rust, and will not cause scratch on the surface of galvanized steel. This machine with high precision on the sizes to make sure machine working high speed and stable.
Drawings:
Technological Process:
Specification:
| NO | NAME | TECHNICAL DATA |
| 1 | Forming station | Normally 28stations or more.according to customer drawing to design. |
| 2 | Machine structure | wall panel style or cast iron rack system |
| 3 | Cutting | Hydraulic post cutting or fly shear cutting |
| 4 | Out table | Manual or automatic |
| 5 | Computer control system(PLC) | Panasonic or Simens |
| 6 | Roller material | GCr15,Cr12,SKD11 quenching treatment:HRC58-62（optional） |
| 7 | Driving | Chain drive or gearbox drive |
| 8 | Forming speed | 0-25m/min(track cutting) |
| 9 | Raw material request | Thickness0.7-1.5mm,Q235,Q345 galvanized steel and hot rolled steel. |
| 10 | Punching system | Punching point roller. |
Customer case:

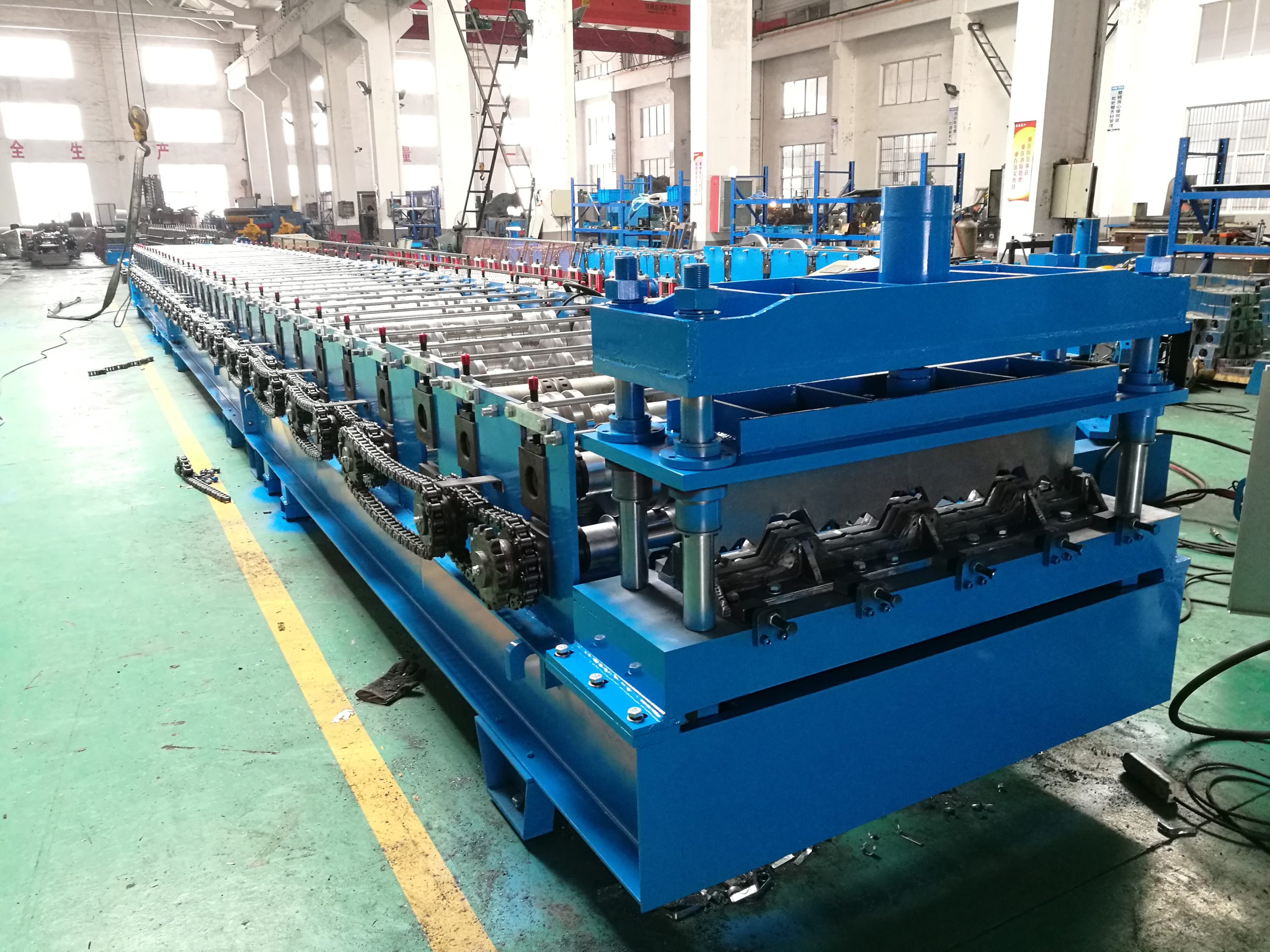

The machine we delivery to Syria customer.

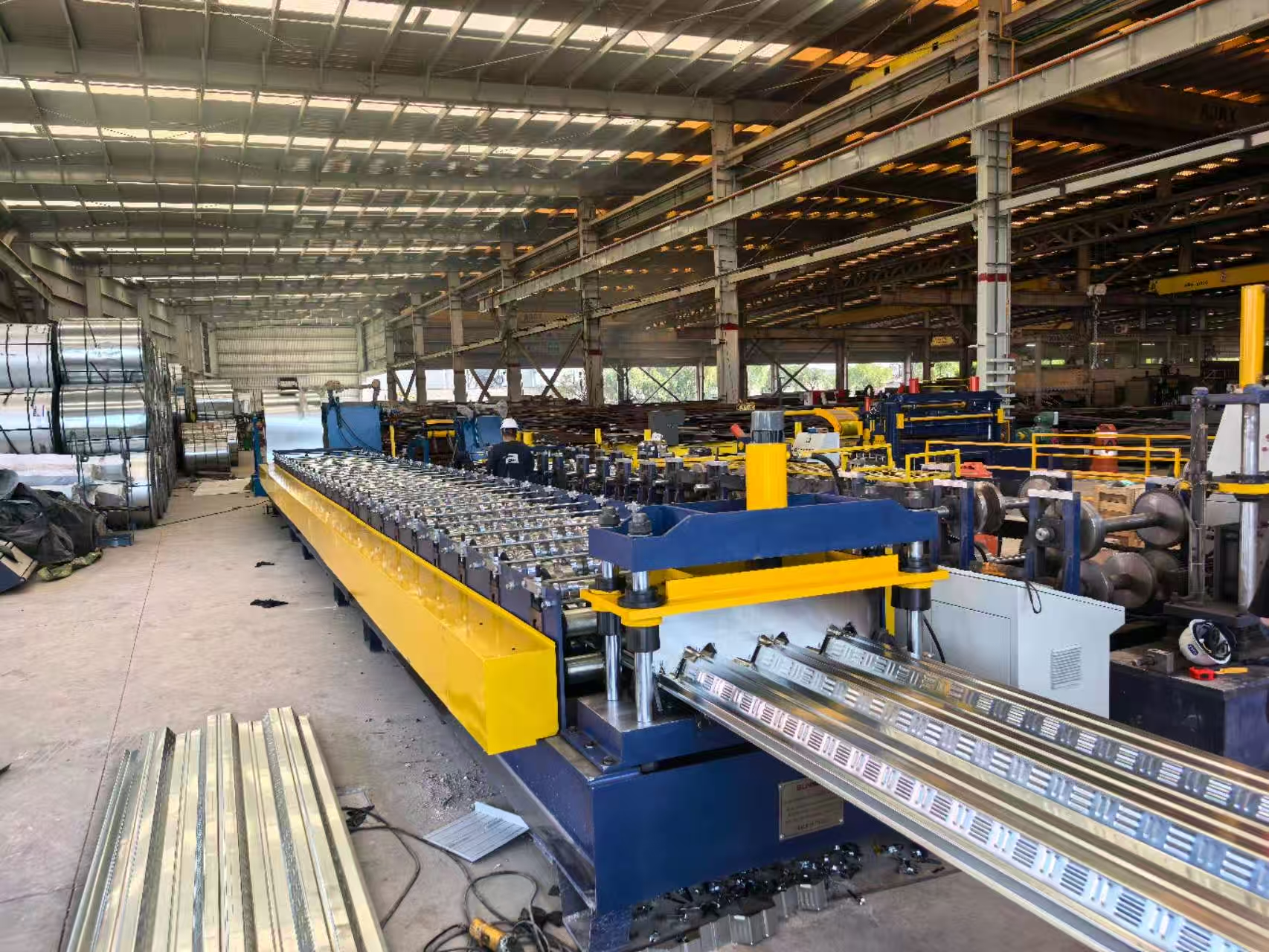

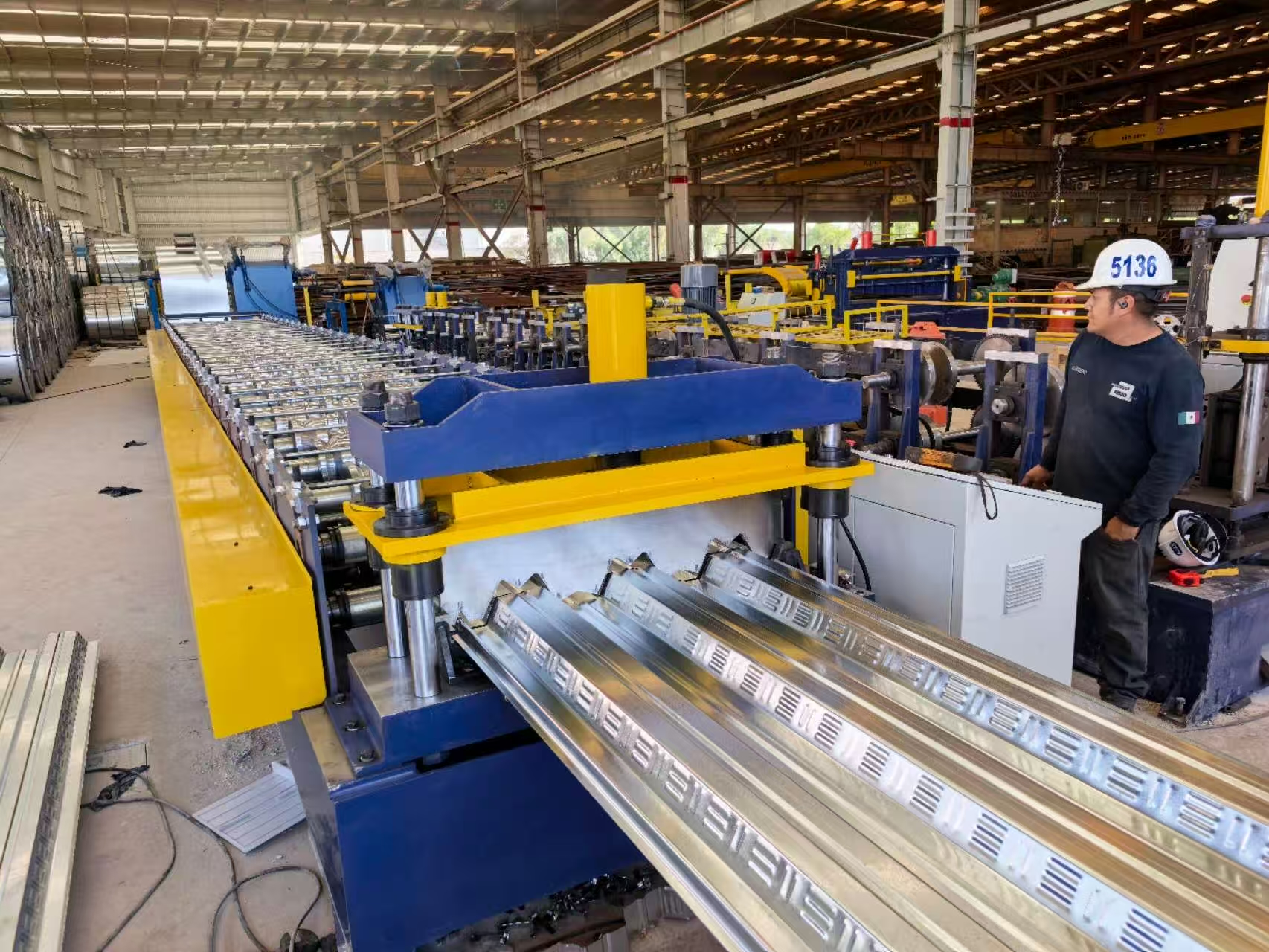

Track cutting deck floor roll forming machine we delivery to USA customer.

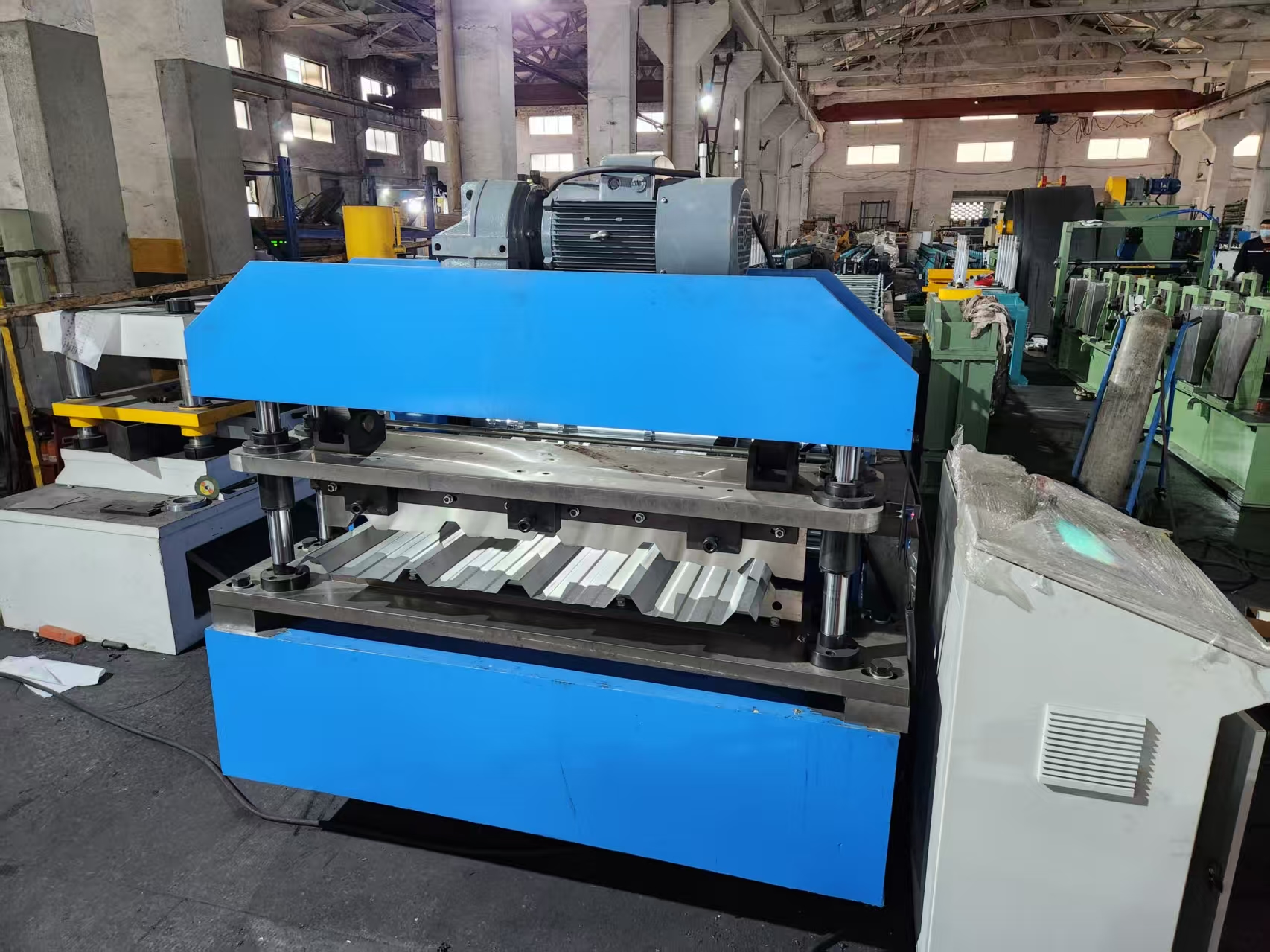

The three waves deck floor forming machine we delivery to Colombia customer.

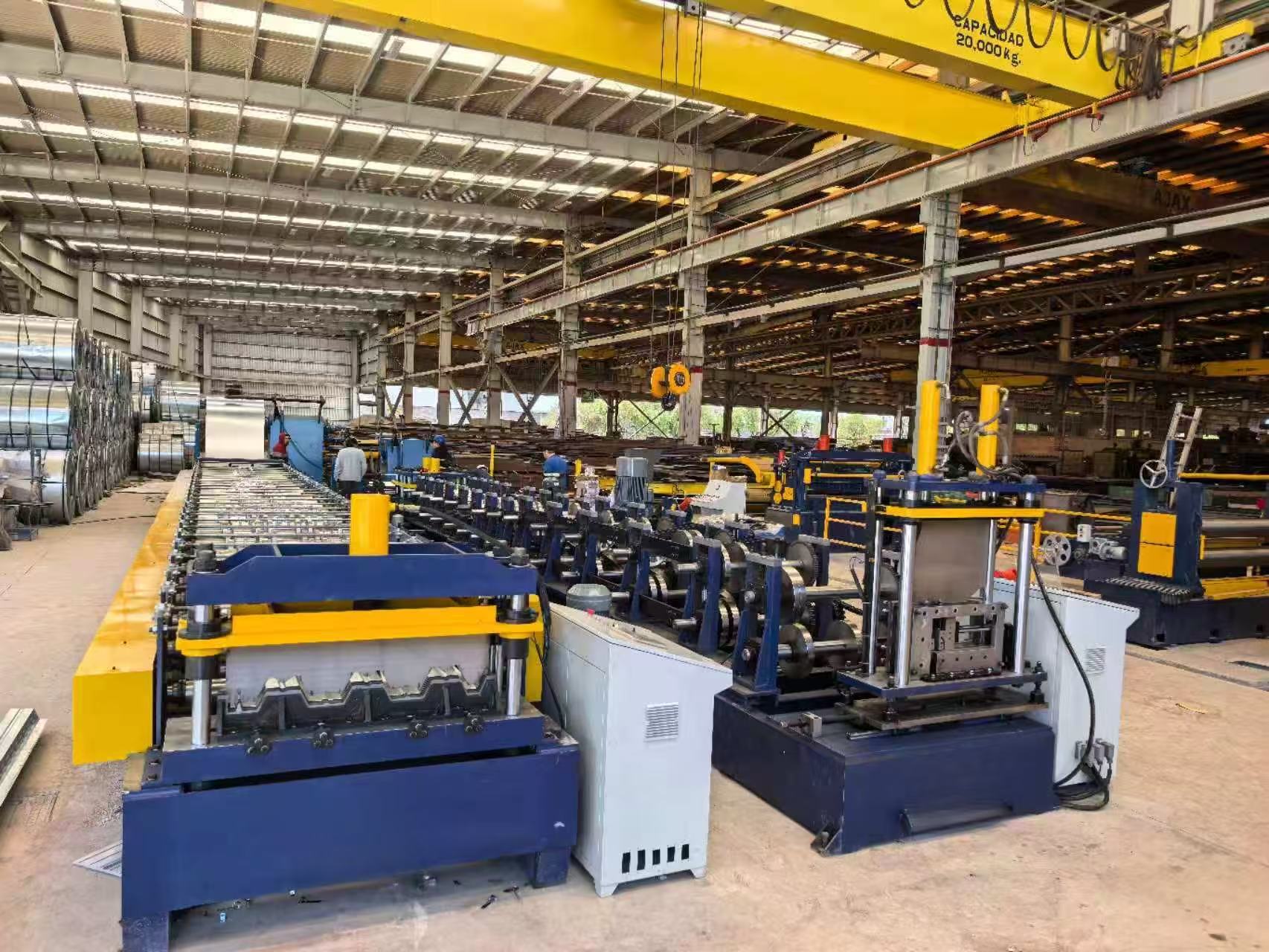

The machine we delivery to Chile customer.

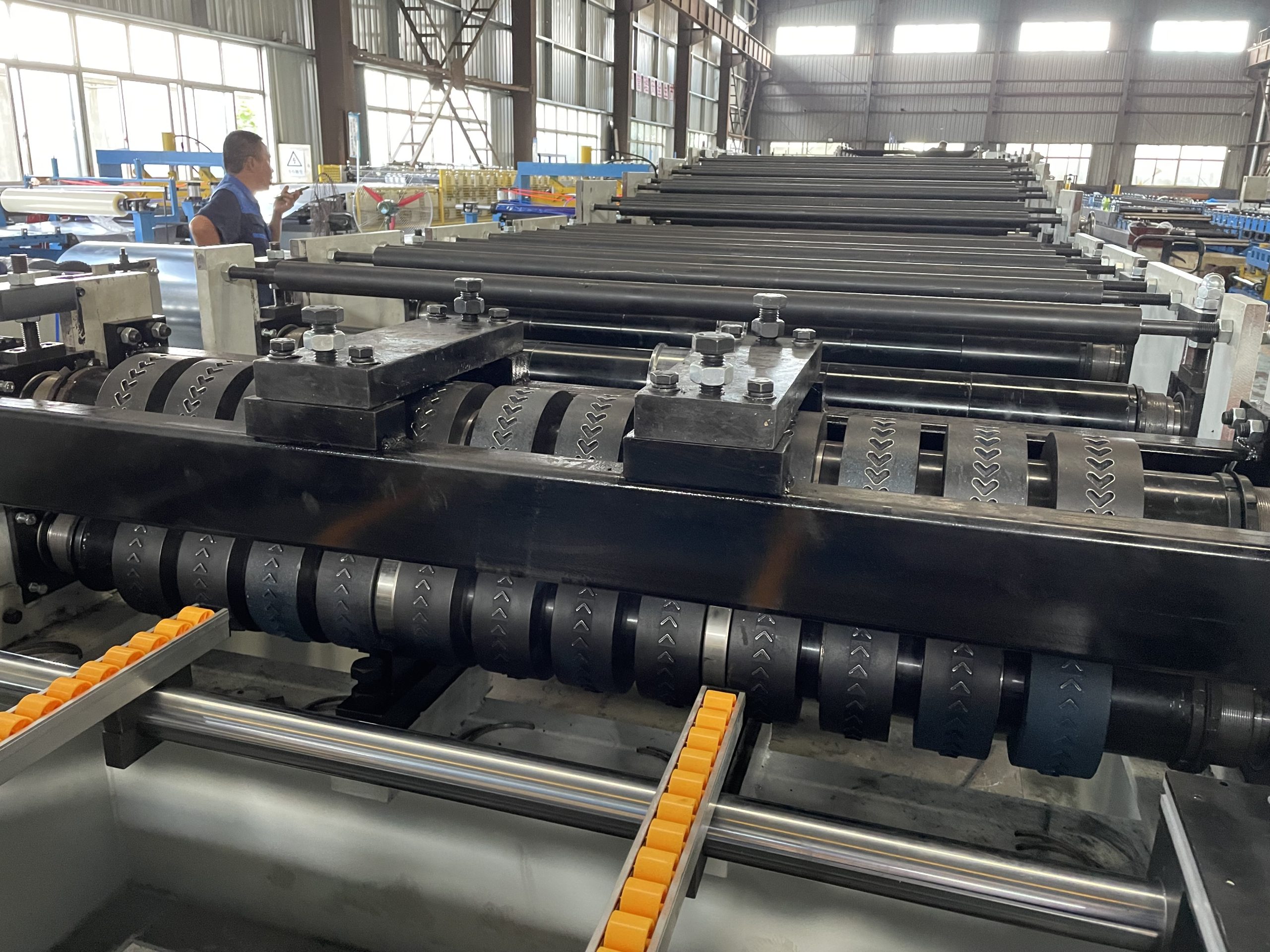

Deck floor machine components:
