Door and window frame roll forming machine
Door&window frame roll forming machine is suitable for any kind of metal door frame,for example:fire rated door,safety door,sliding door,industry door and interior door etc.Raw material can be zinc-coated steel,galvanized steel,stainless steel.Galvanized door frame machine is more popular during our customers.Thickness range could be 0.6- 1.2mm or 1.2-1.6mm(heavy duty) and Gauge 14/16/18.We exported many new develpment door frame roll forming machines to India Tata group,Colombia,Venezuela,Mexico,USA,Turkey,Crotia etc.Welcome to inquiry Bigpower about roll forming machine at any time.We could according to your special request to develp different machines.
Drawings
Technical Process

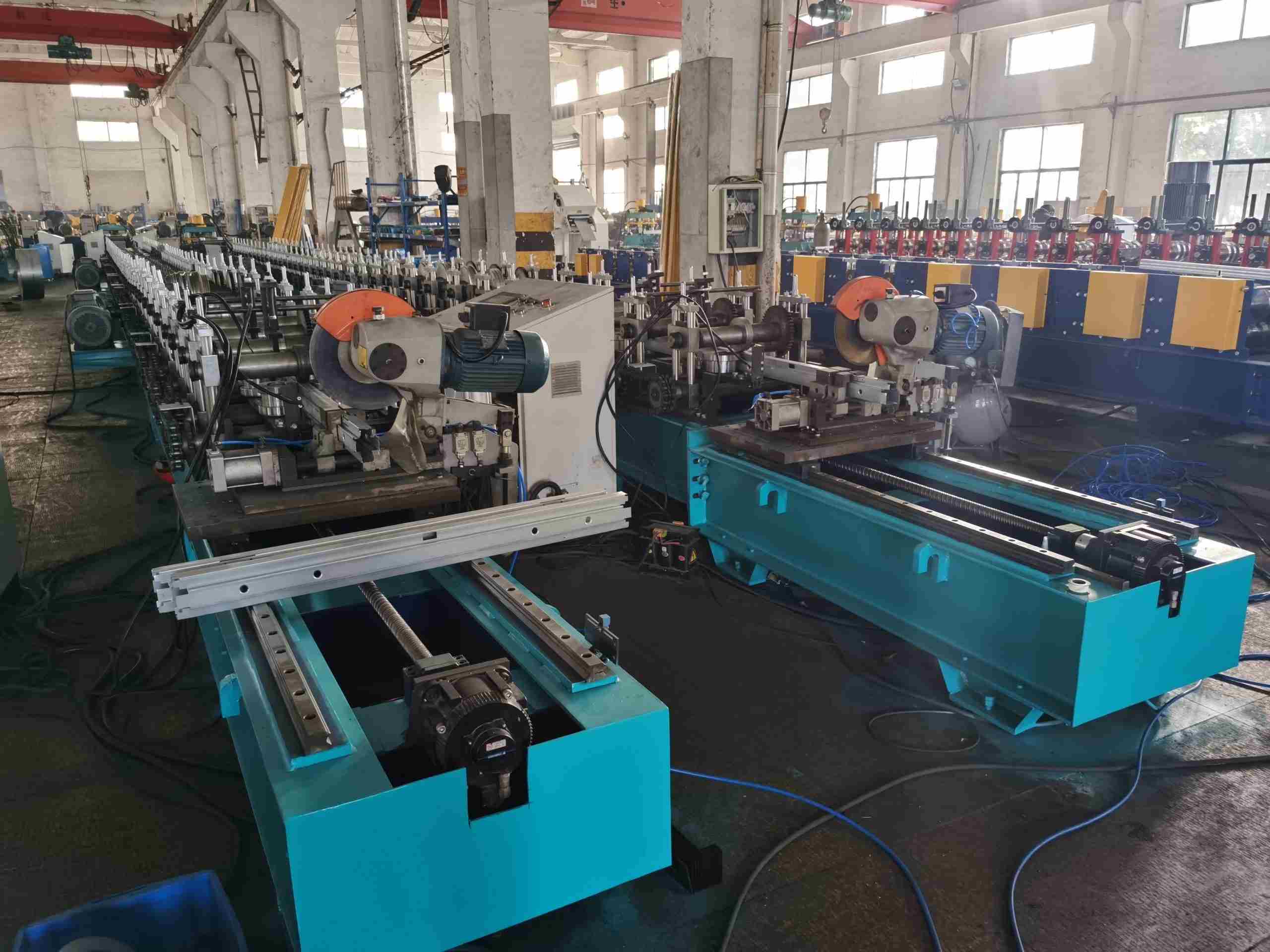

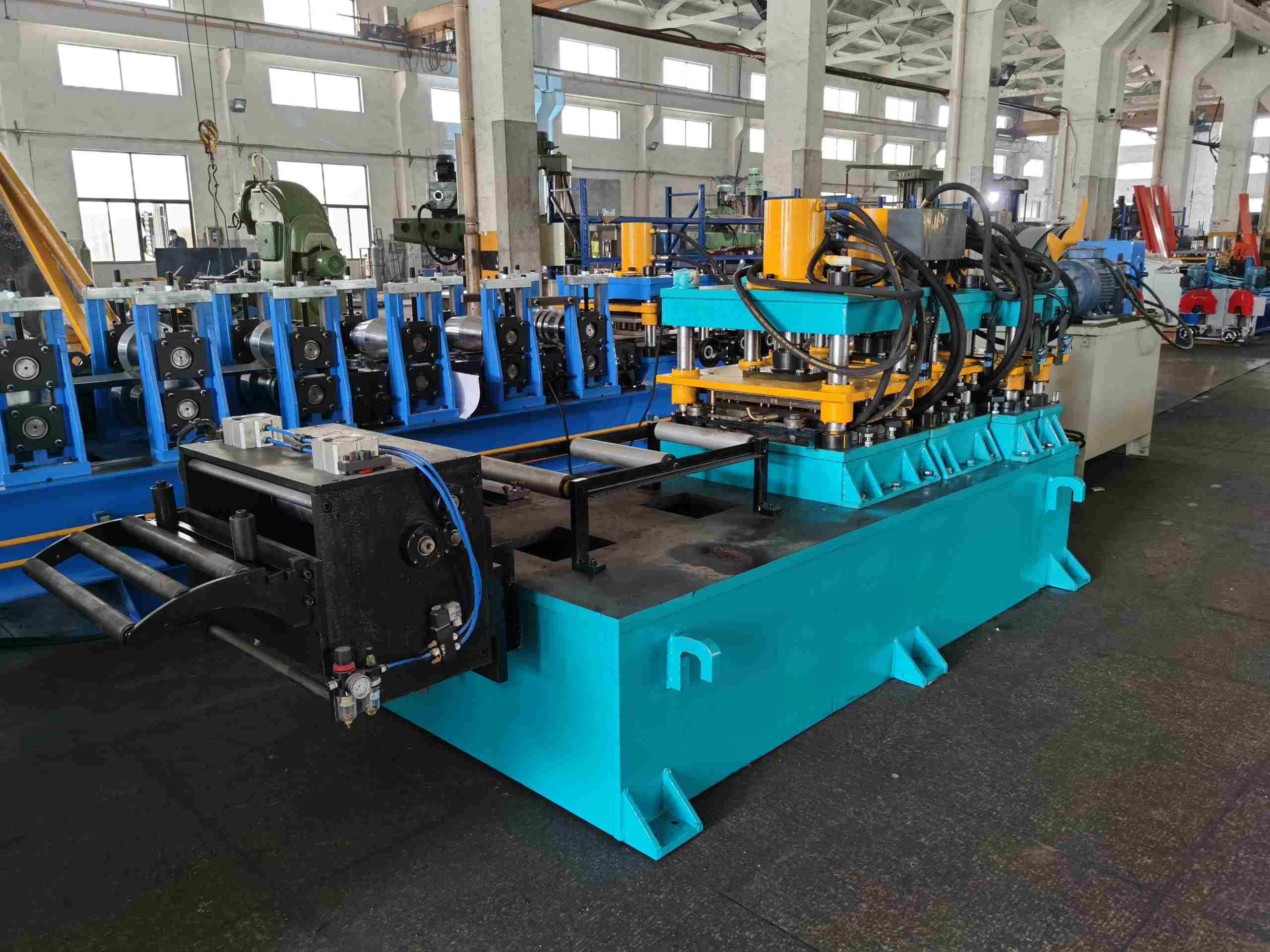

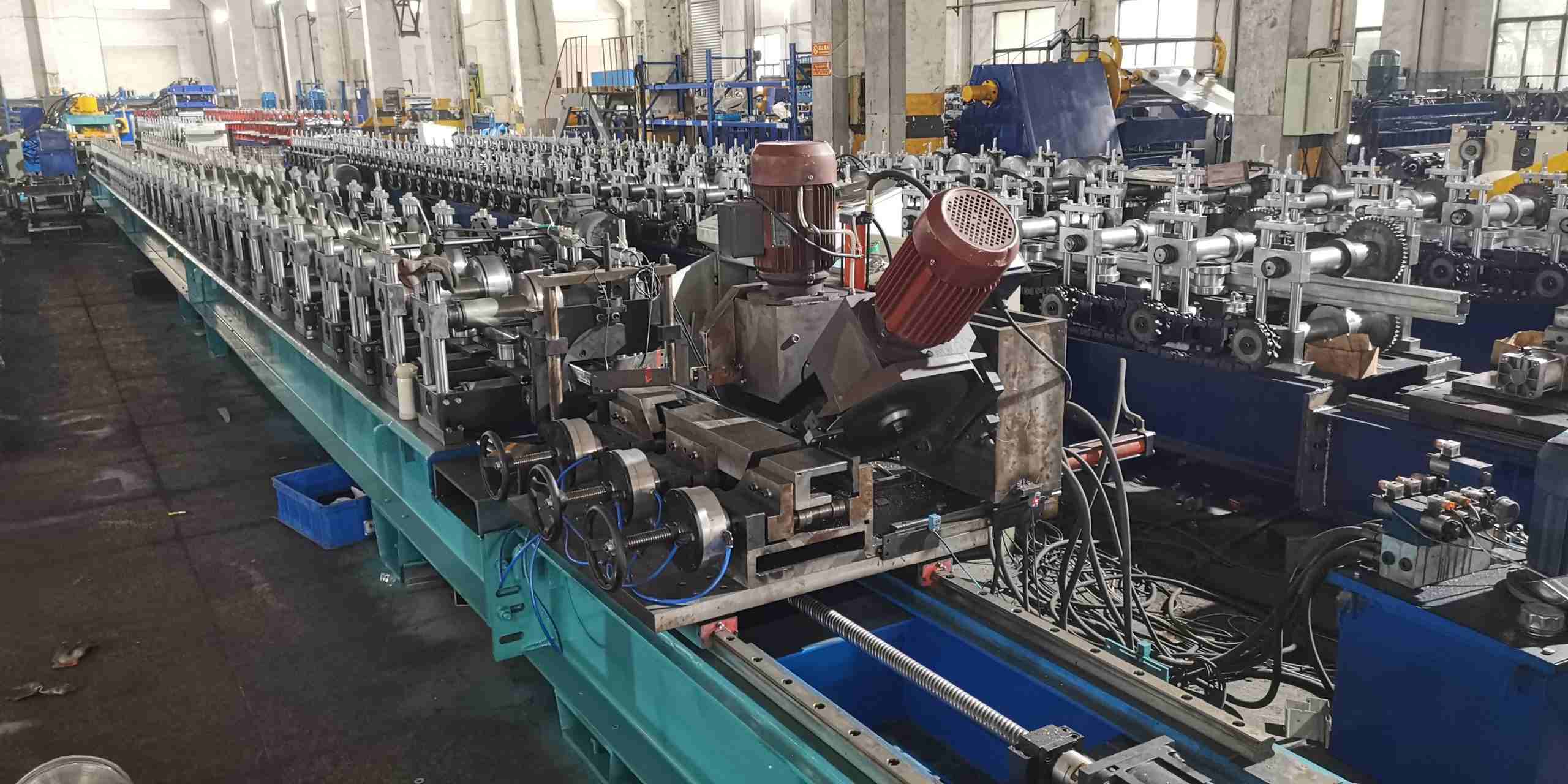

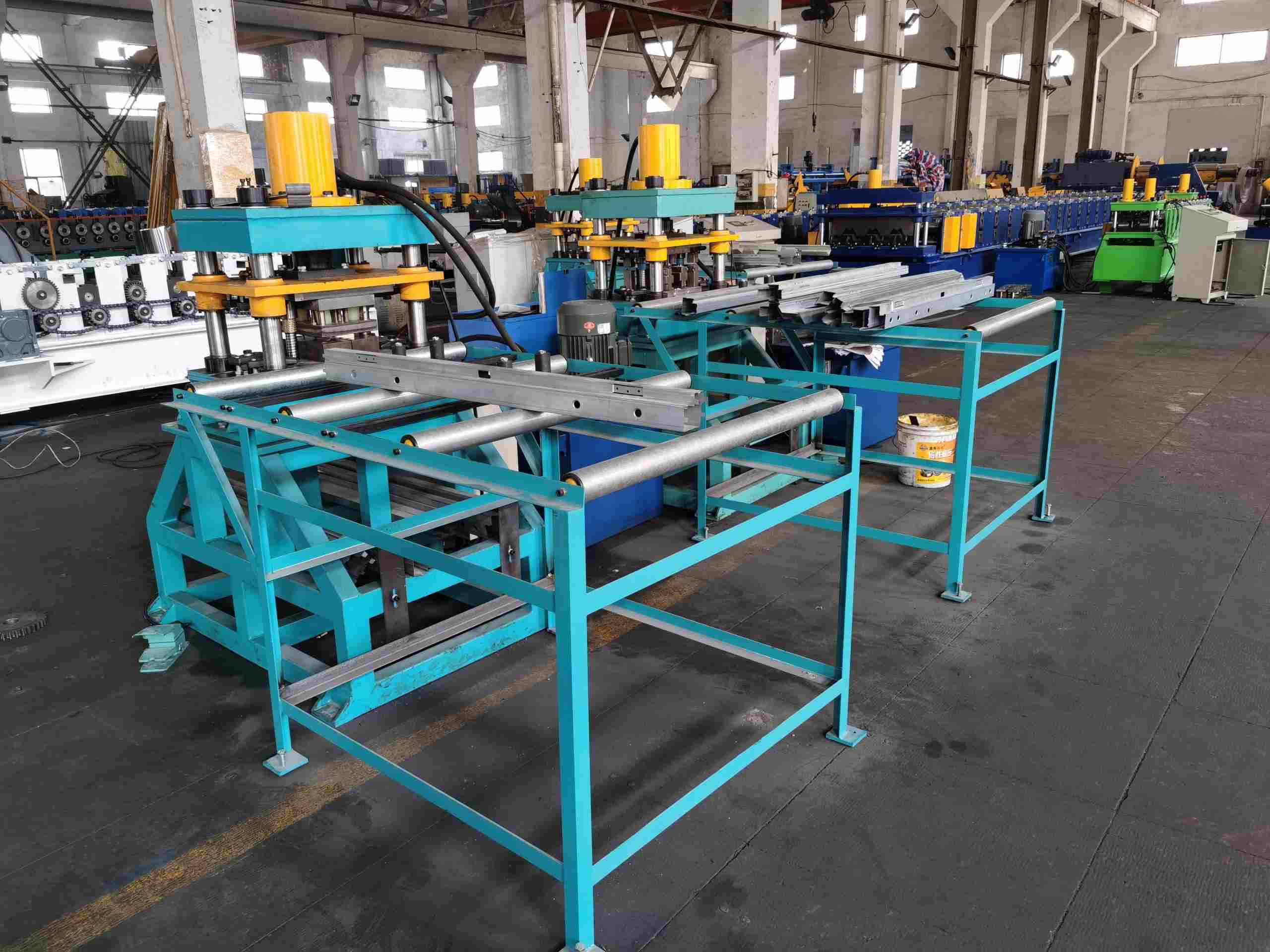

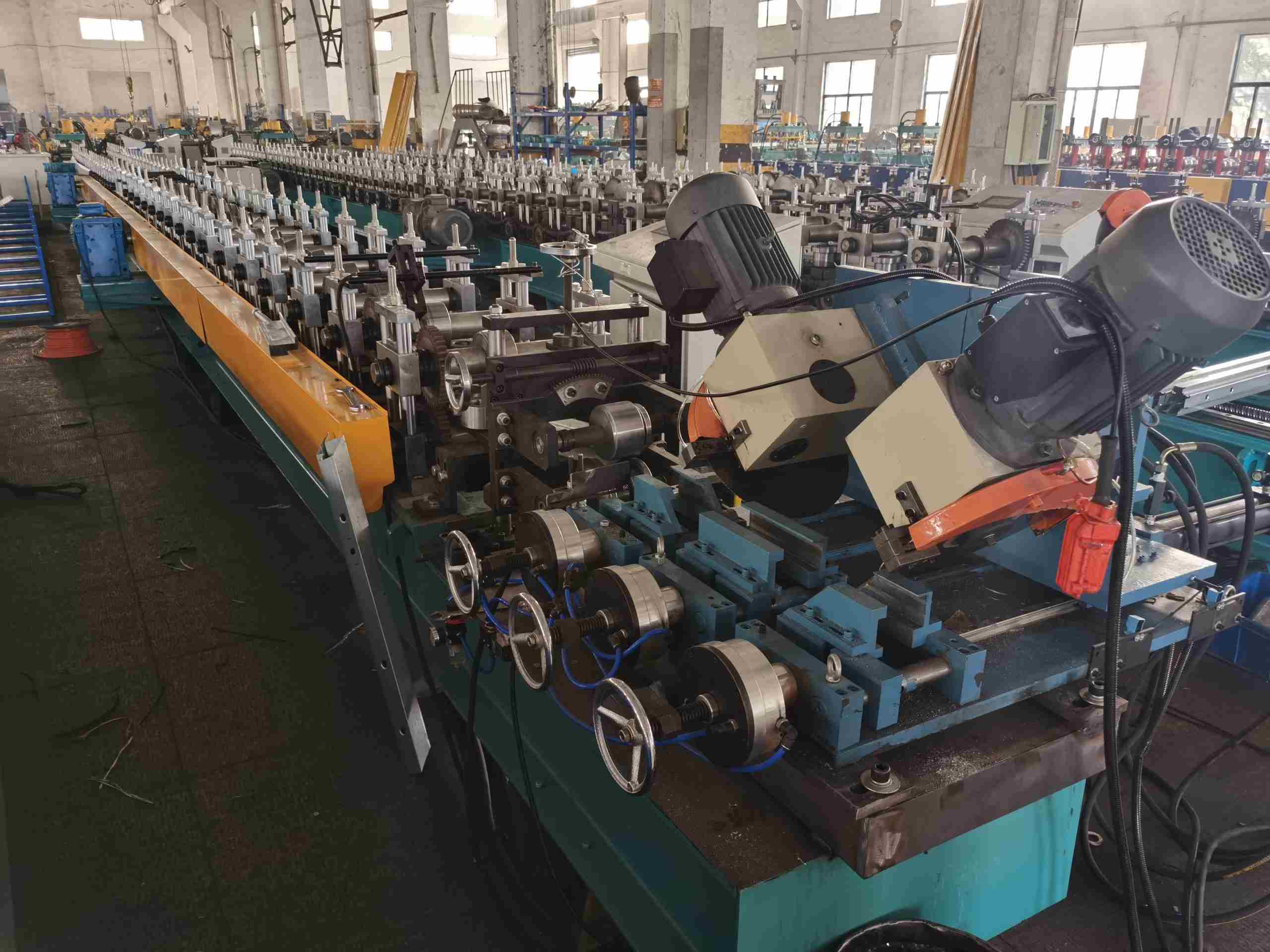

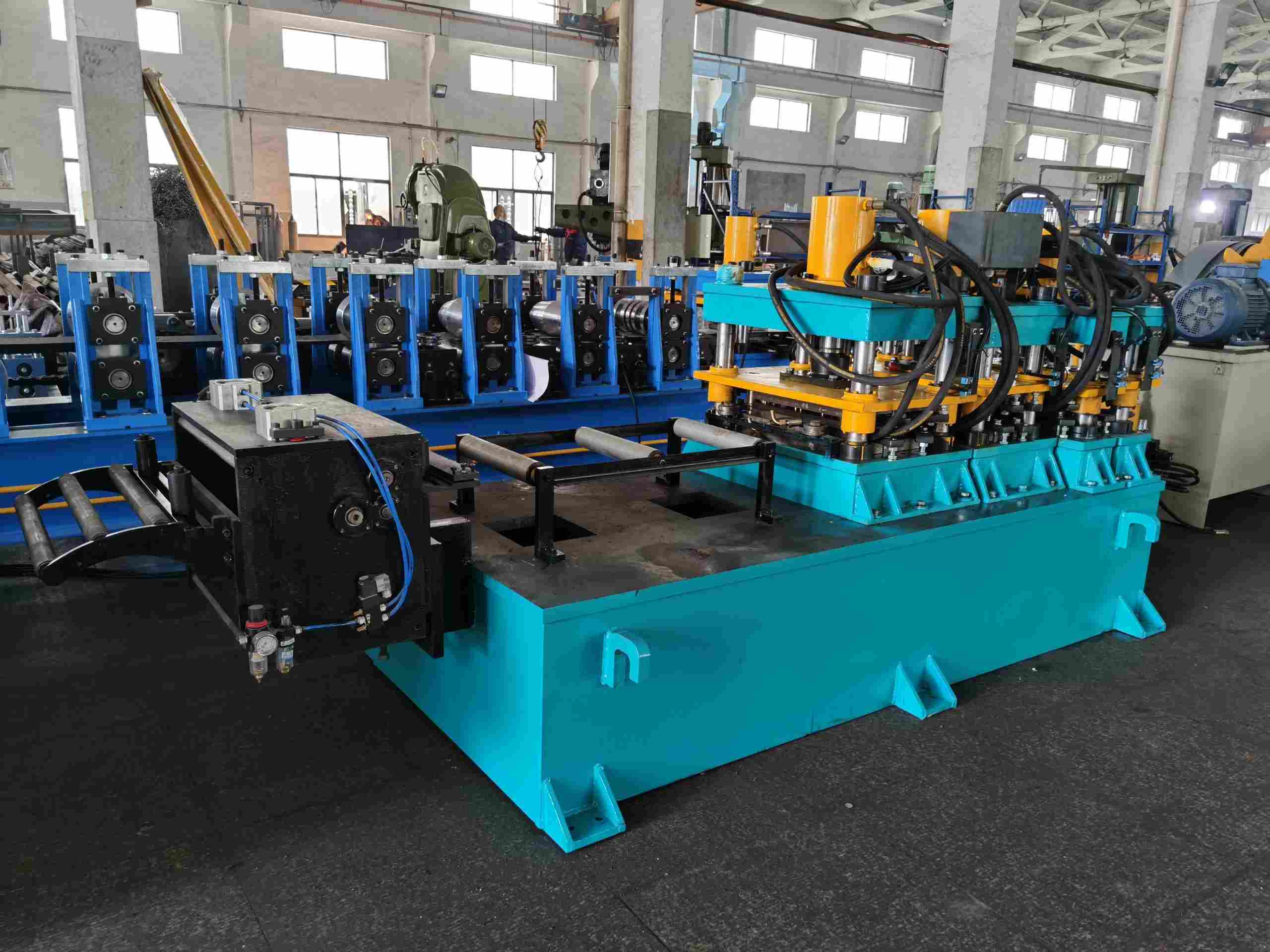

Door frame roll forming machine:

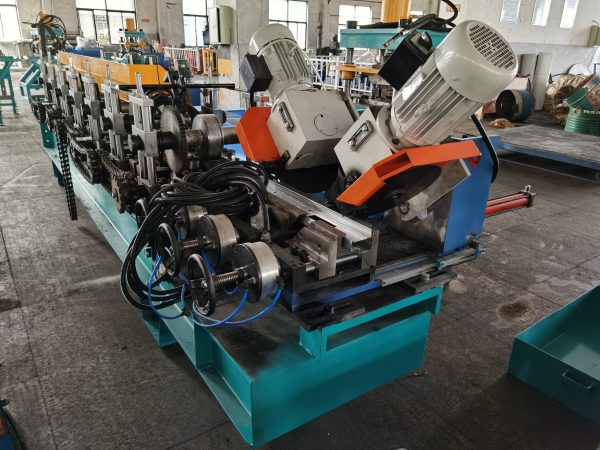

Window/door frame roll forming machine:
Specification:
| Door&window frame roll forming machine | ||
| NO | NAME | TECHNICAL DATA |
| 1 | Forming station | Normally 17-20stations or more.according to customer drawing to design. |
| 2 | Machine structure | Wall panel style or cast iron rack system. |
| 3 | Punching | Hydraulic punching or merchnical press. |
| 4 | Cutting | Hydraulic cutting or fly saw cutting. |
| 5 | Out table | Manual or automatic. |
| 6 | Computer control system(PLC) | Panasonic or Simens. |
| 7 | Roller material | GCr15,Cr12,SKD11 quenching treatment:HRC58-62. |
| 8 | Driving | Chain drive or gearbox drive. |
| 9 | Forming speed | 0-20m/min. |
| 10 | Raw material request: | Thickness 0.6-1.2mm,1.2-1.6mm Q235,Q345 galvanized steel and hot rolled steel. |
| 11 | Main shaft diameter | Φ76mm. |
| 11 | Main motor | 11kw. |
Customer case:
Door&window frame roll forming machine sold to Colombia
Door frame roll forming machine export to India
Open Door frame roll forming machine export to India Tata

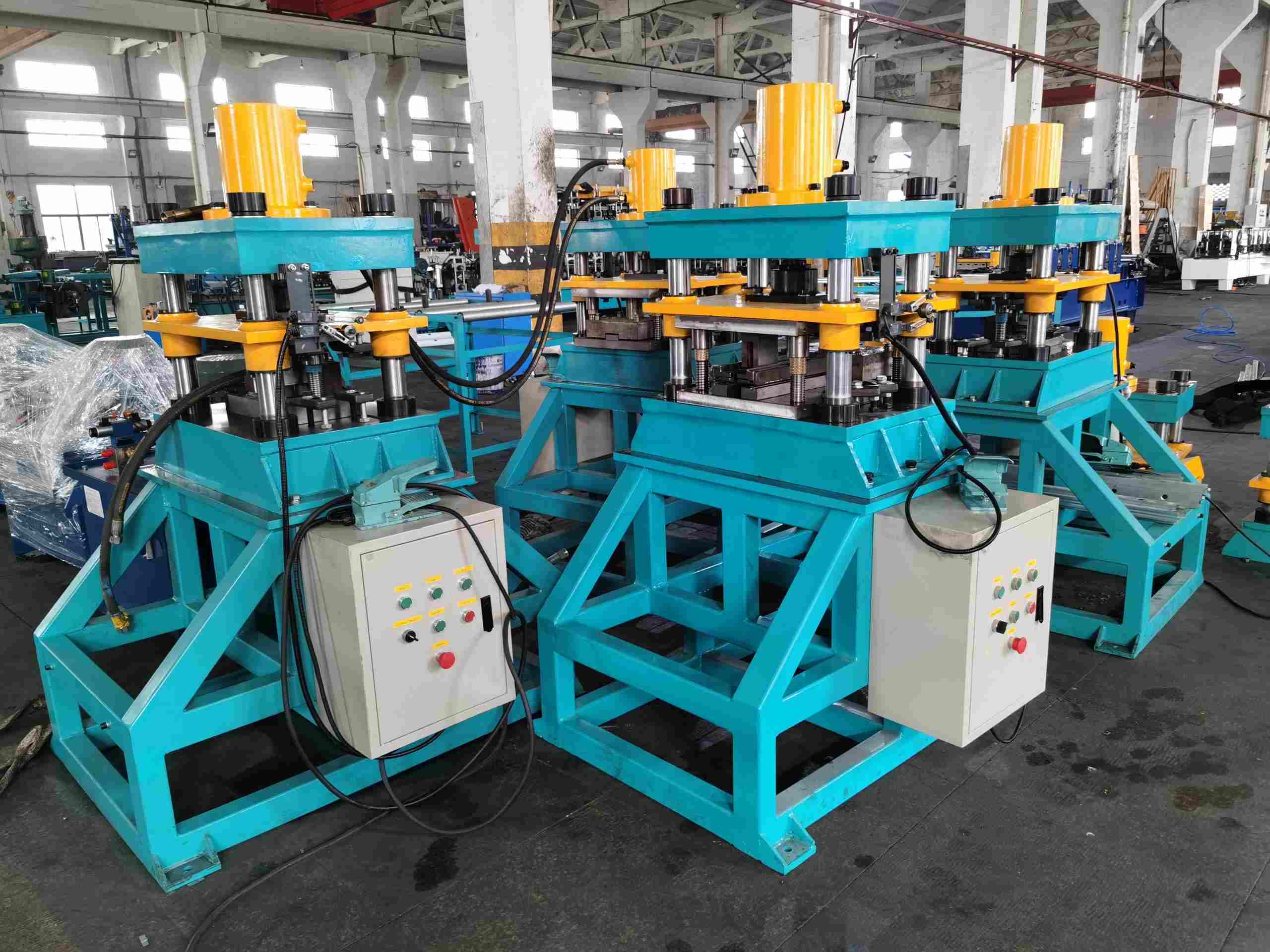

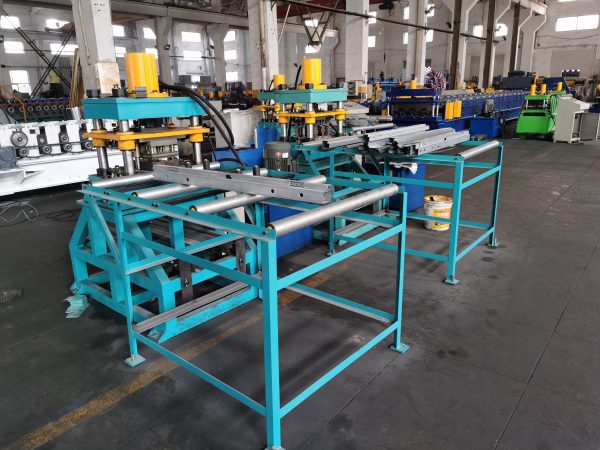

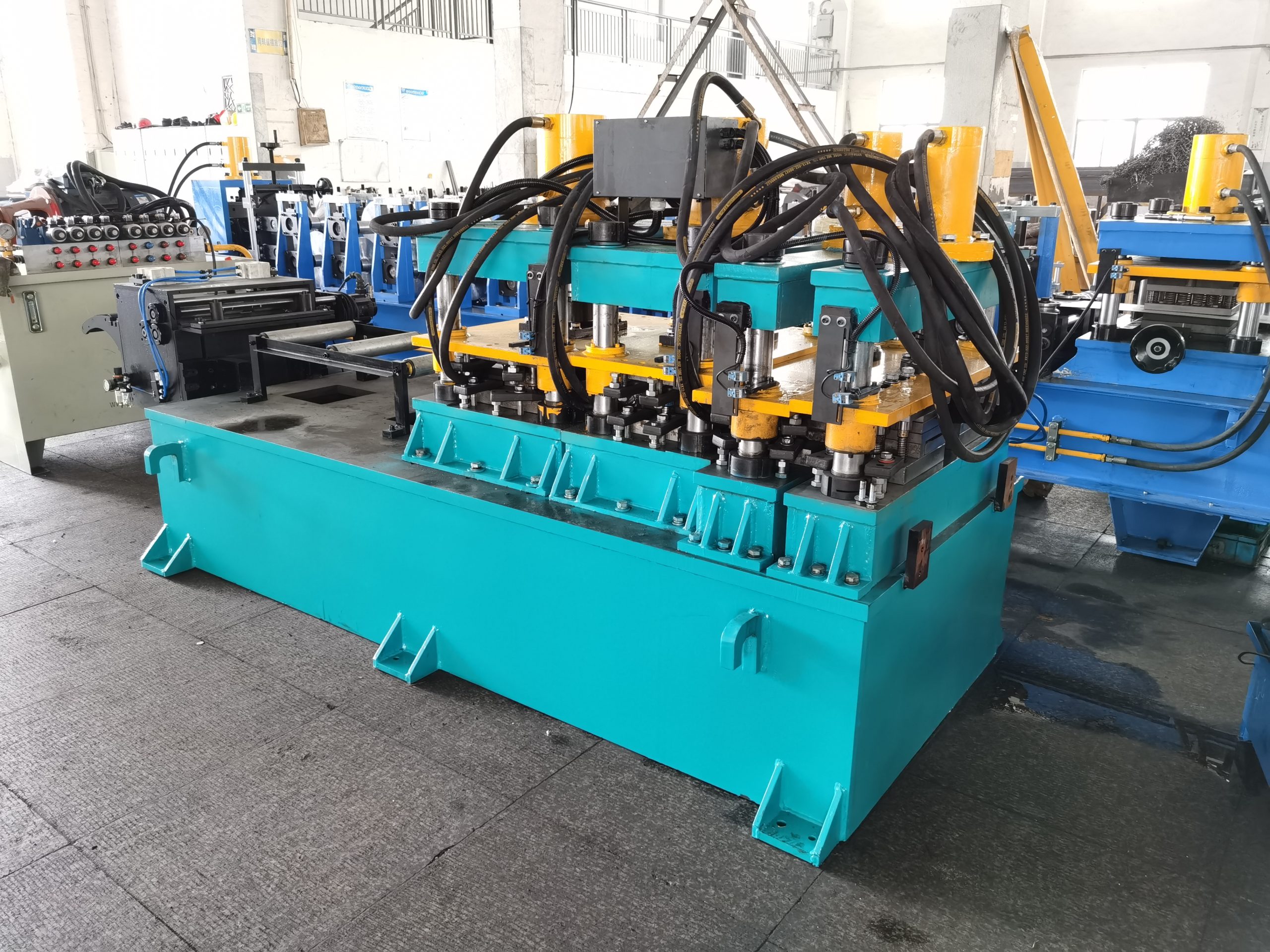

Door frame roll forming machine components:
