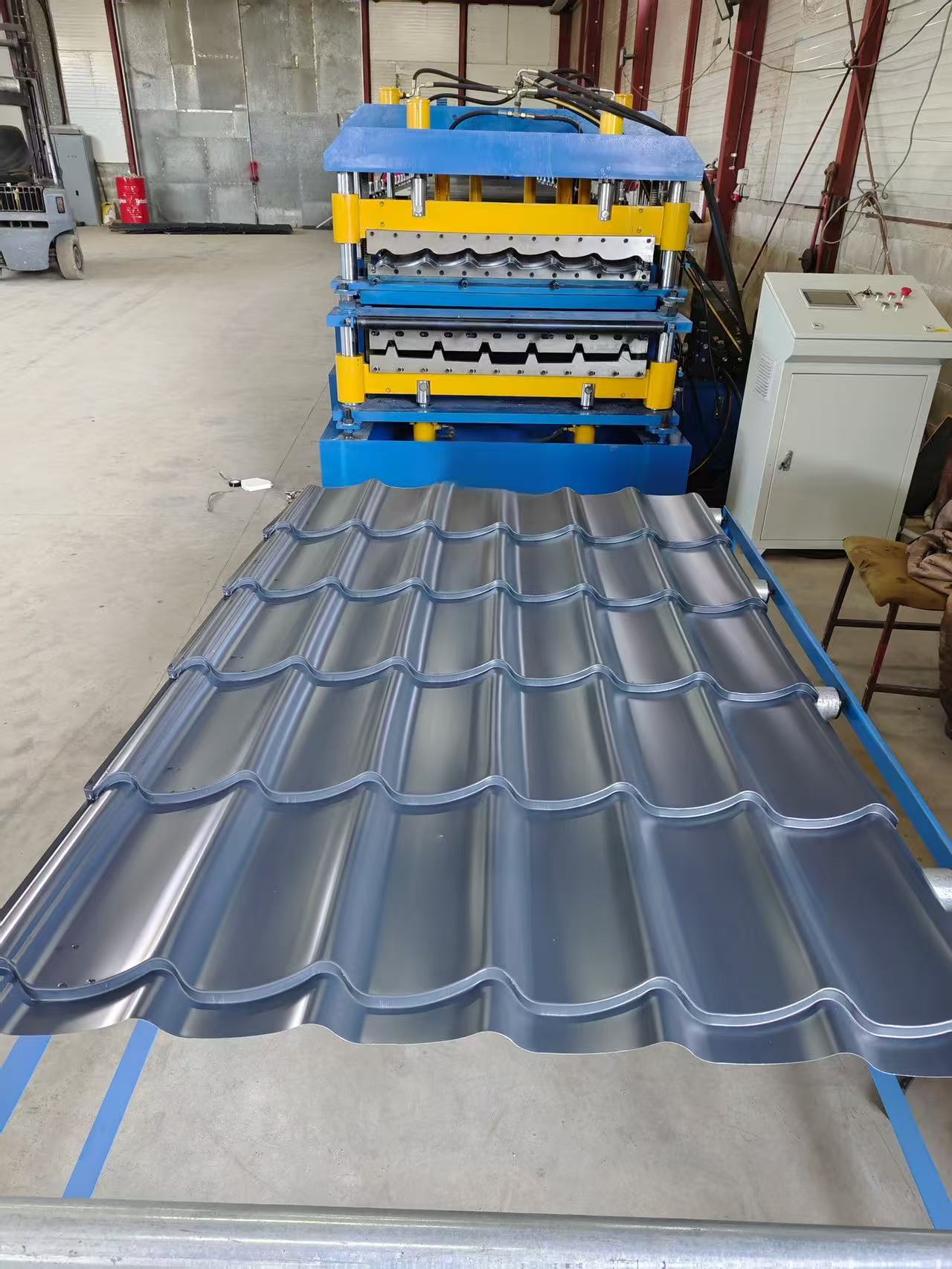

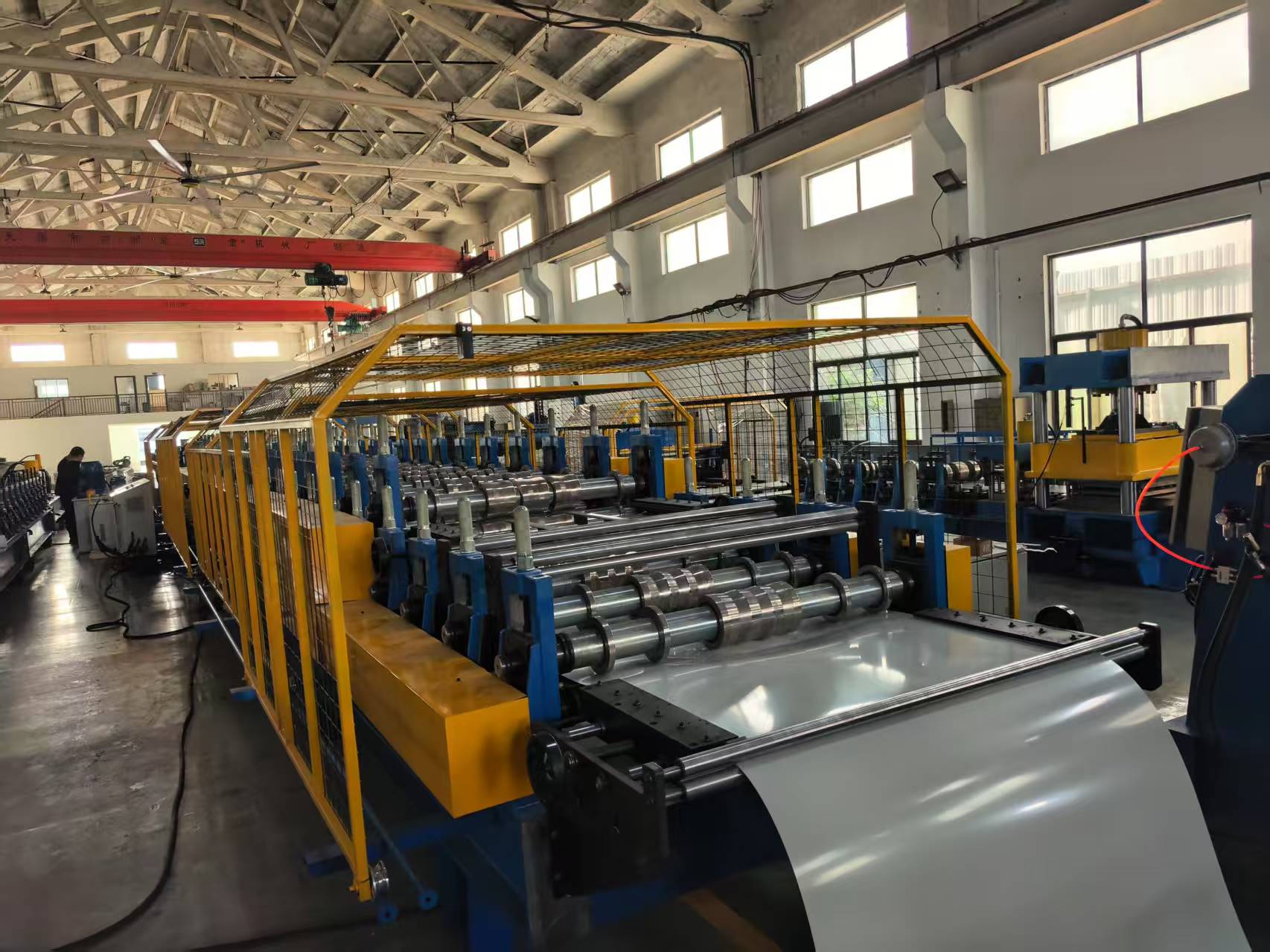

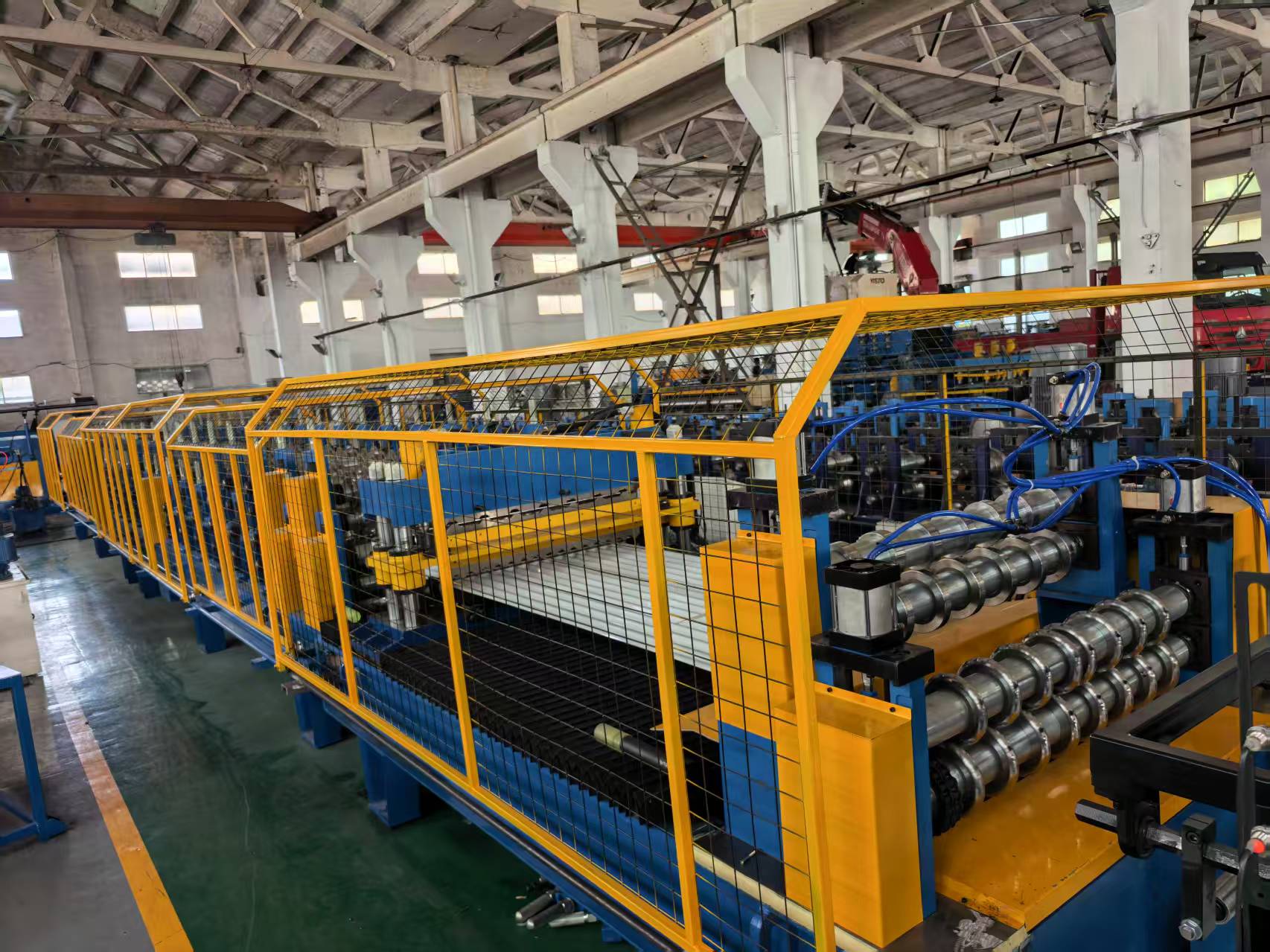

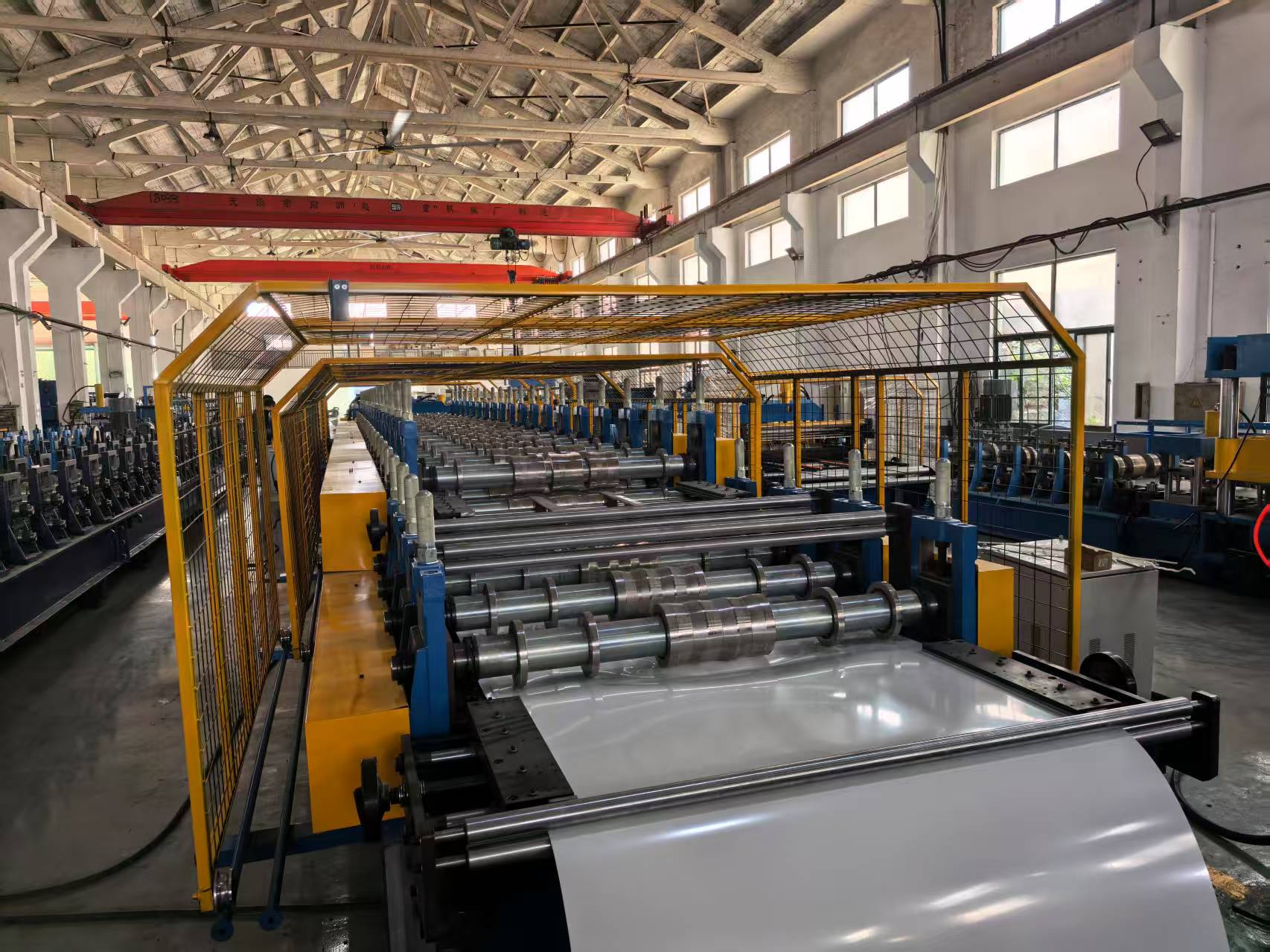

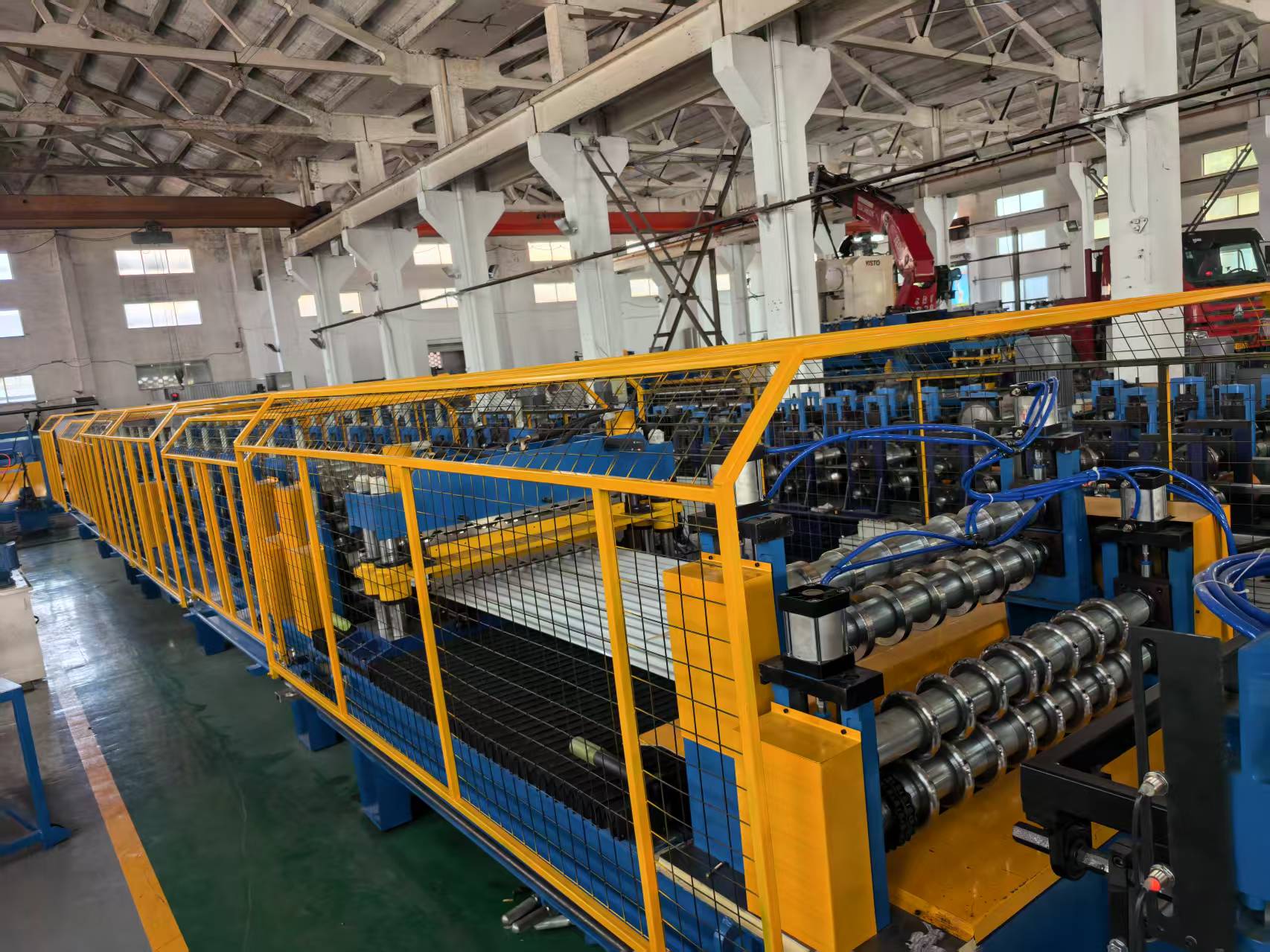

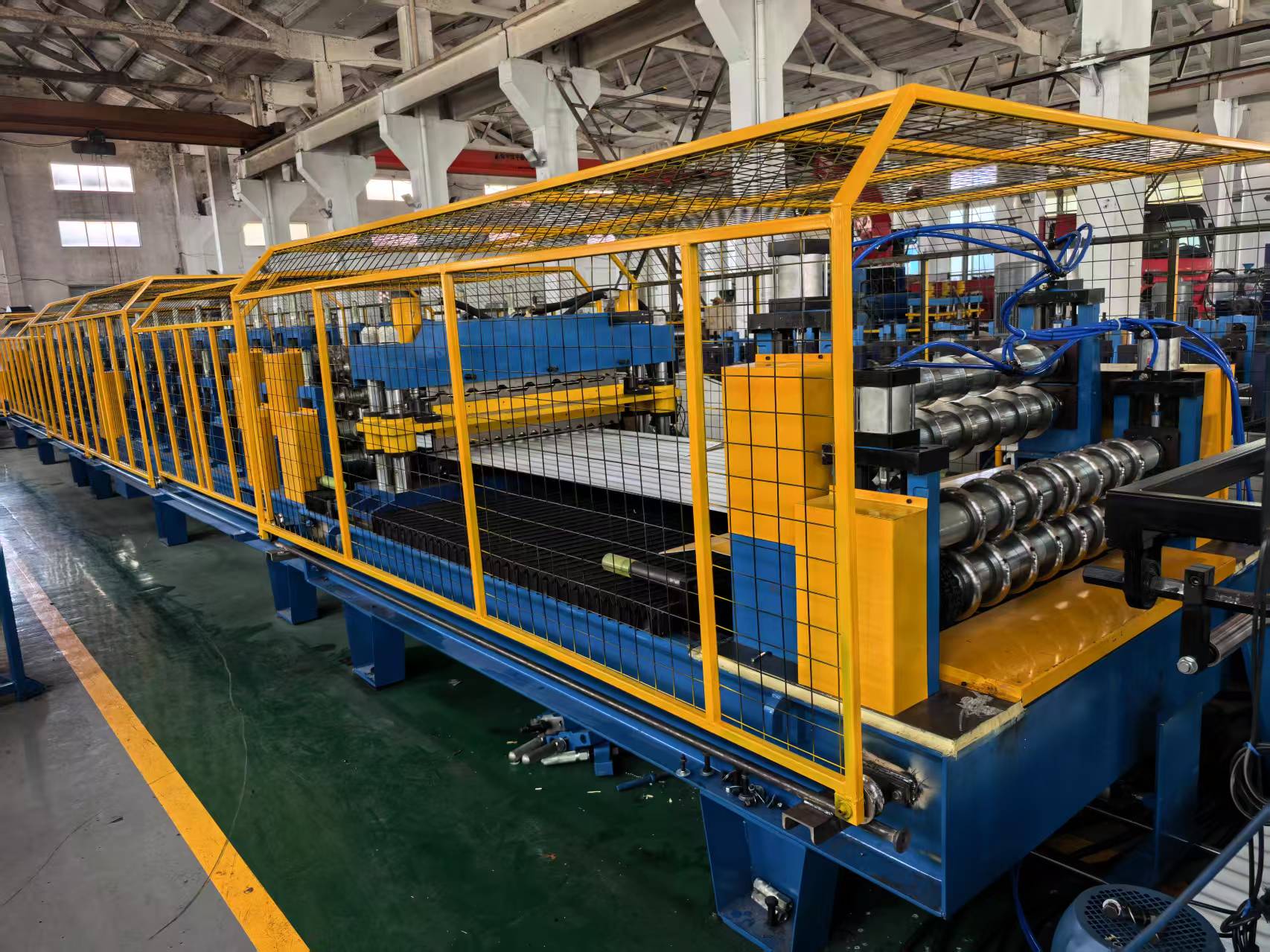

High speed double layer roll forming machine

Double layer roll forming machine with high speed 0-30m/min,economical cost and easy operation.so this is very popular in abroad customers.
Our company’s professional manufacture high speed double layer roll forming machine,we can make double layer roll forming machine,triple layer roll forming machine.
The roof tile,wall/roof panel sheet is applied for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structure houses. Anti-seismic, fireproof, rainproof, long life, maintenance-free, etc.
We have experience of exporting our equipment to 40 countries all over the world like Negeria,India,Philippines,USA,Serbia,Russia,Chile,Argentina,.ect.and won good reputation with good quality .we make different technical solutions according to the profile drawing and requirements of customers,and provide one to one services,our goal is “Honesty build the brand,quality wins the world”as the principle to cooperate with our customer.





5T hydraulicl decoiler—Roll Forming (including Guiding Feeding)—Hydraulic Cutting—Runout table

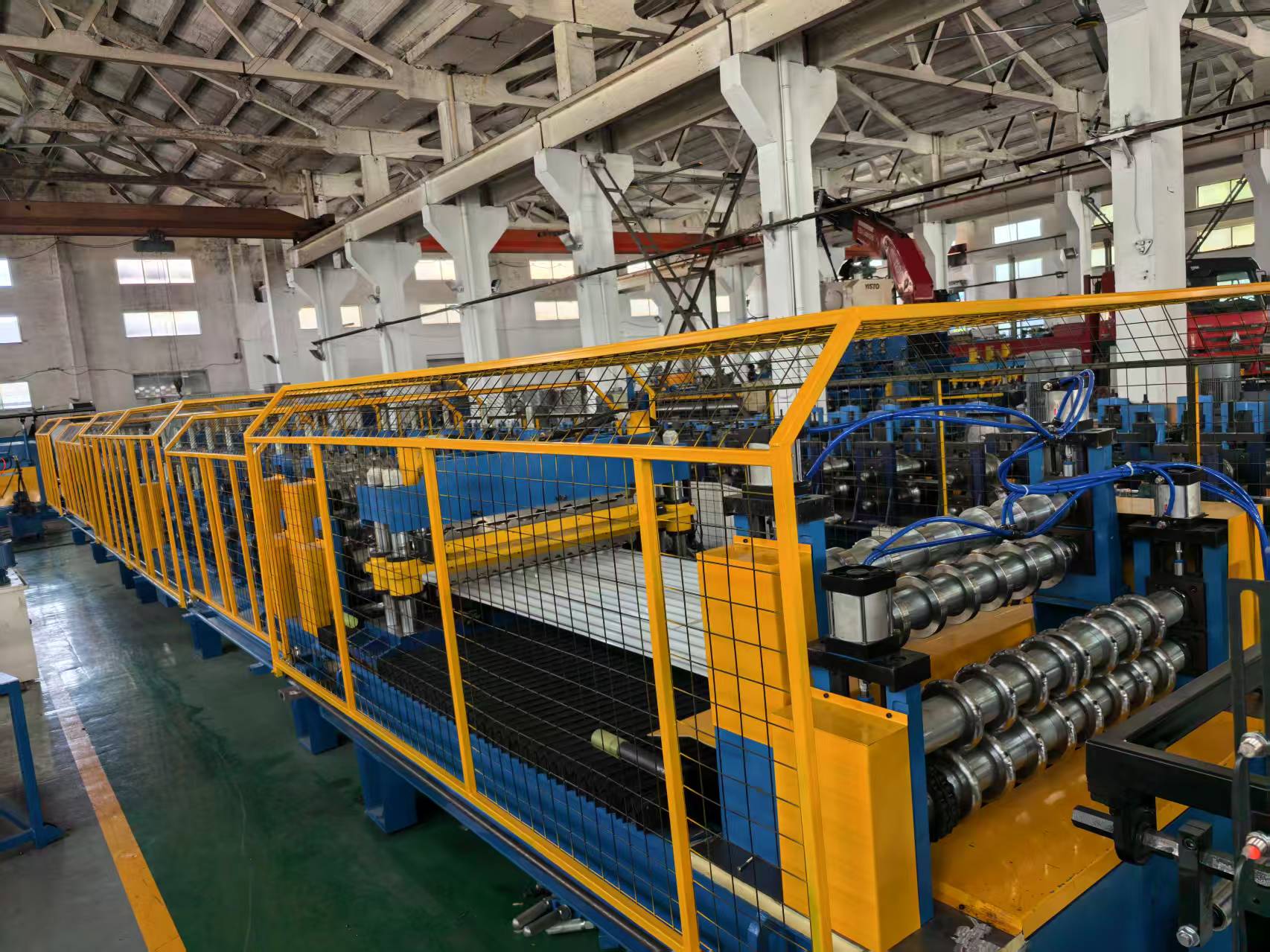

High speed double layer roll forming machine
1 Forming station Up layer:20stations,down layer:22stations.accroding to customer drawing to design.
2 Machine structure  Chain drive
3 Cutting Hydraulic post cutting or servo track cutting.

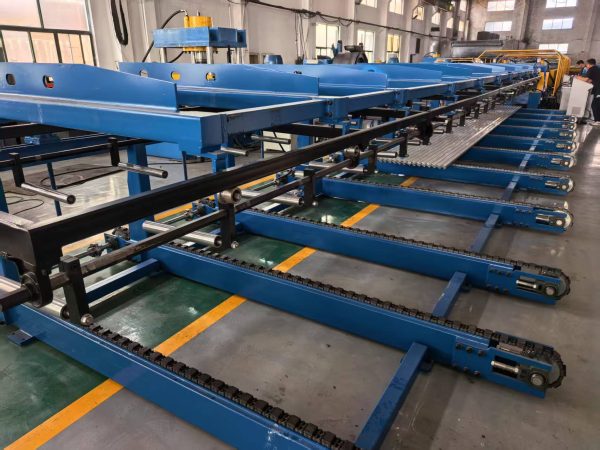

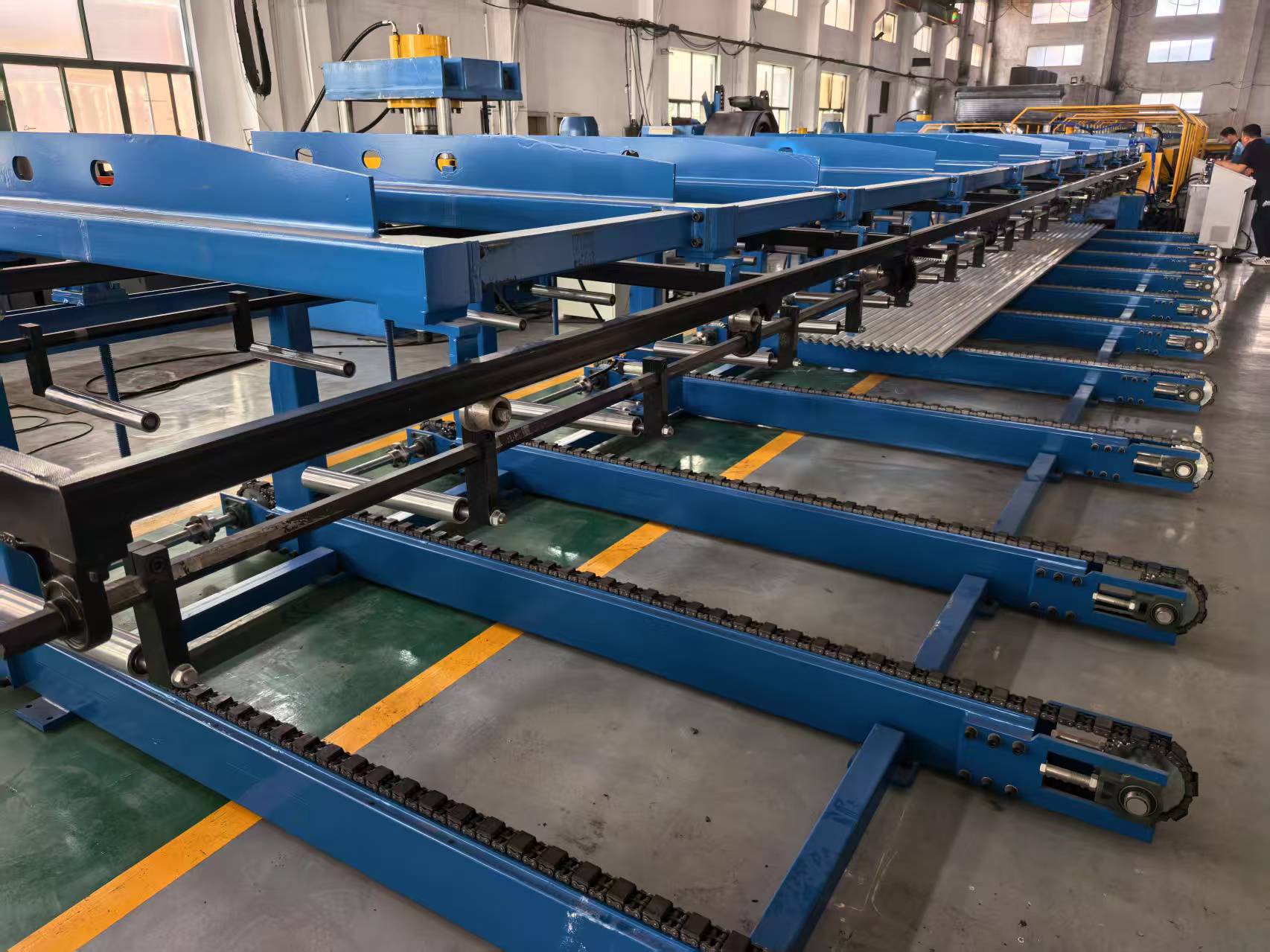

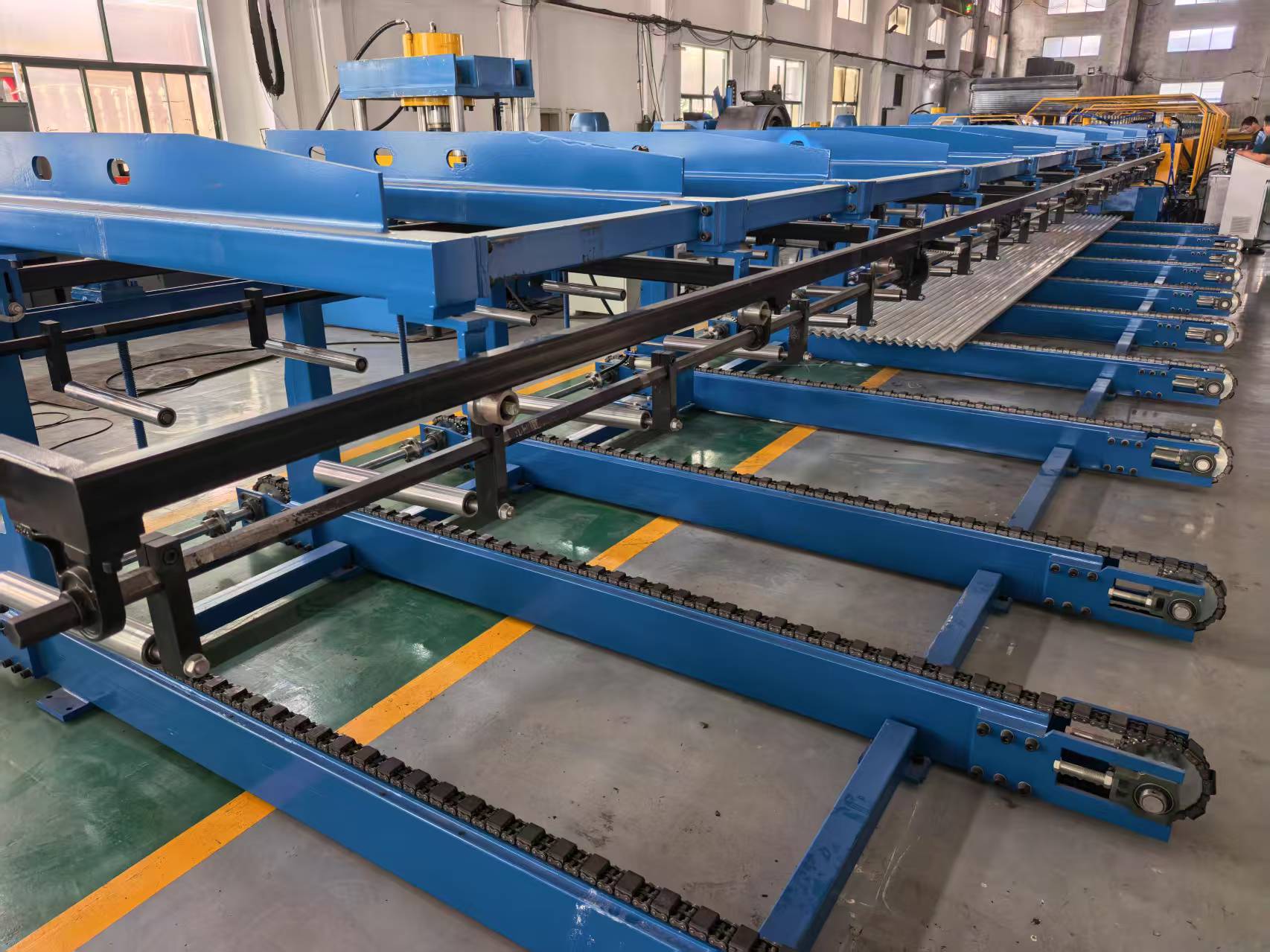

4 Out table Manual or automatic.
5 Computer control system(PLC) Panasonic or Simens.
6 Roller material GCr15,Cr12,SKD11 quenching treatment:HRC58-62(optional).
7 Forming speed 0-25m/min.
8 Raw material request: thickness 0.3-0.7mm,Q235,Q345 galvanized steel and hot rolled steel.carbon steel,cold steel.
9 Main motor power 11Kw.
10 Total weight about 15000Kgs.
11 Up layer and down layer Up layer:roof tile/corrugated sheet/Trapezoidal Tile,down layer:roof/wall sheet.

Customer case

Double layer roll forming machine we sold to USA.

Double layer roll forming machine we sold to Nigeria.

Double layer roll forming machine we sold to Philippines.

Double layer roll forming machine(up roof tile machine,down layer corrugated roof panel) to Crotia.

Corrugated roof panel roll forming machine sold to Chile.
