Highway U post beam roll forming machine
U post beam is mainly used in national high-speed railway,highway road reconstruction projects and industrial hardware products and other industries.When subjected to external forces, the deformation of guardrail plate and column can absorb impact force to protect pedestrians and vehicles.It is a common road safety emergency protection facilities.

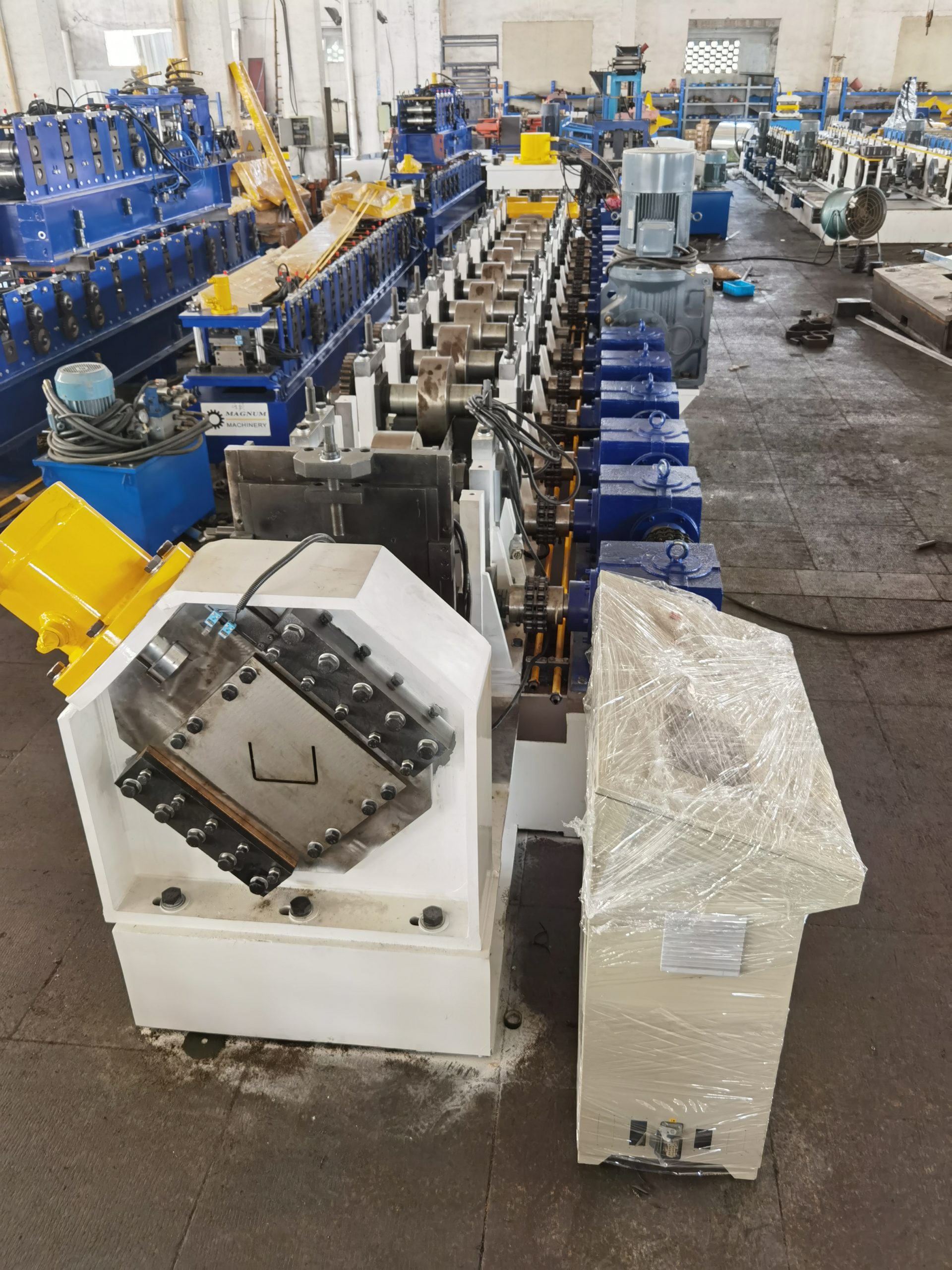

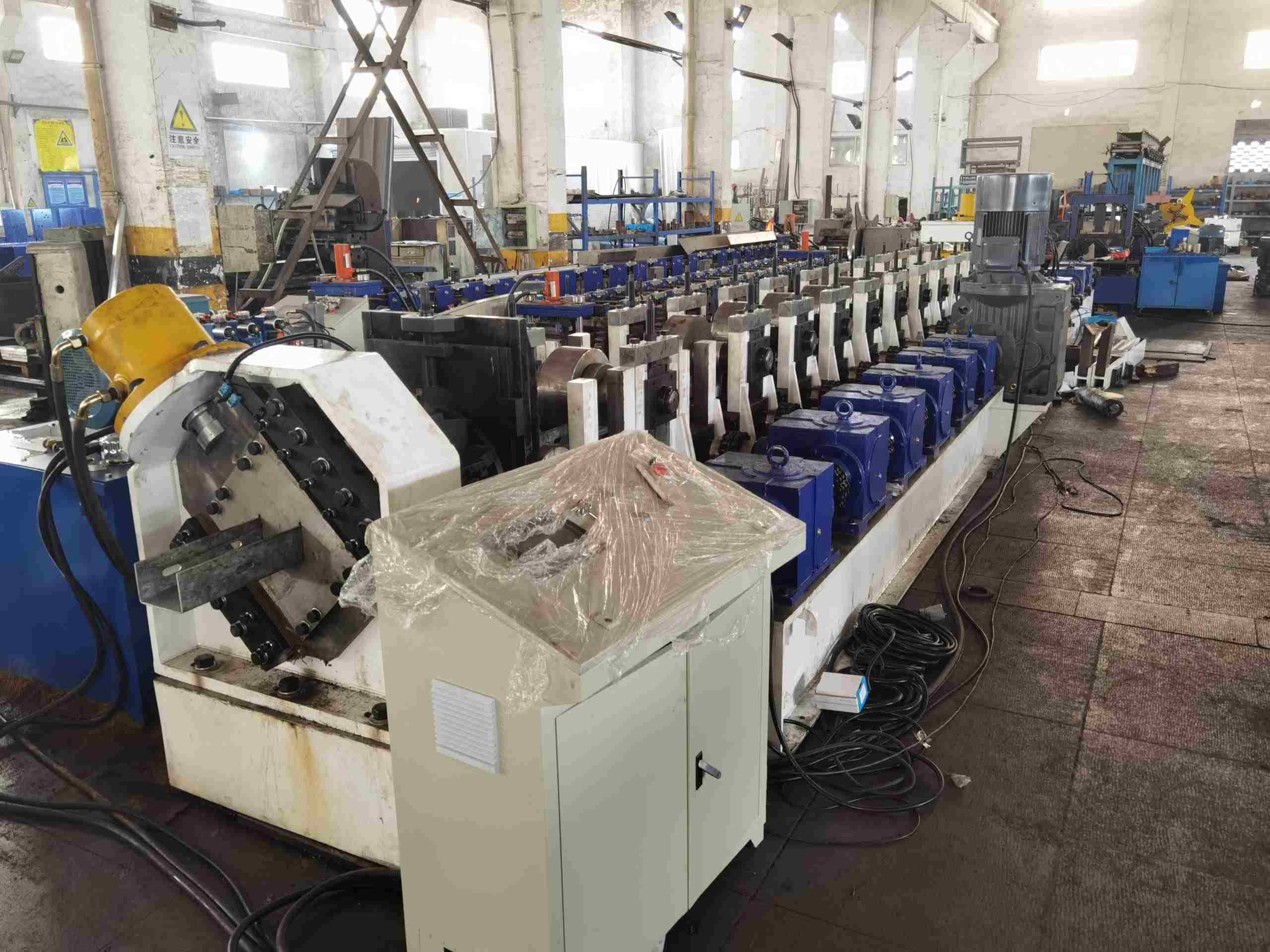

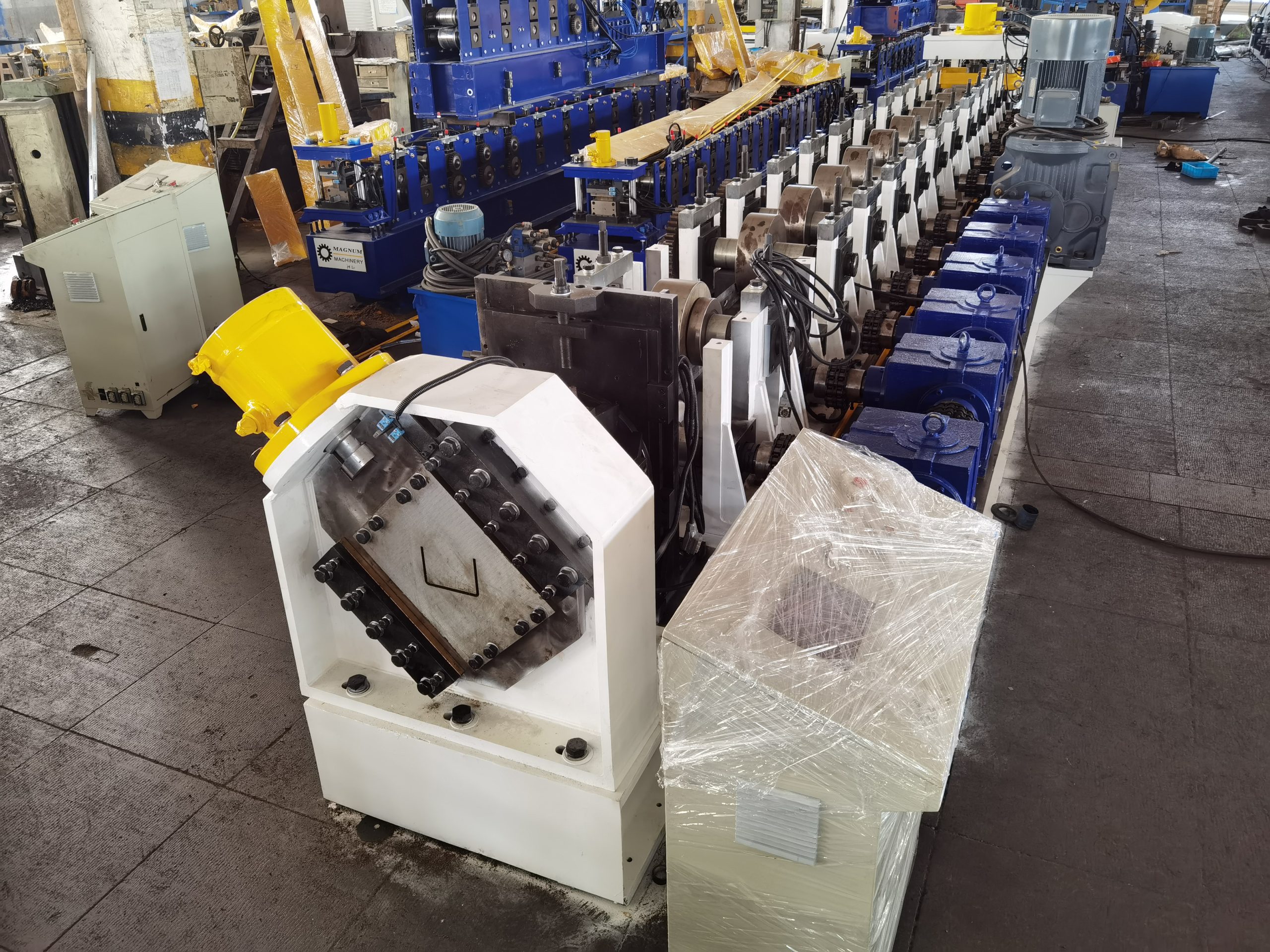

We exported these guardrail roll forming machine to Russia.

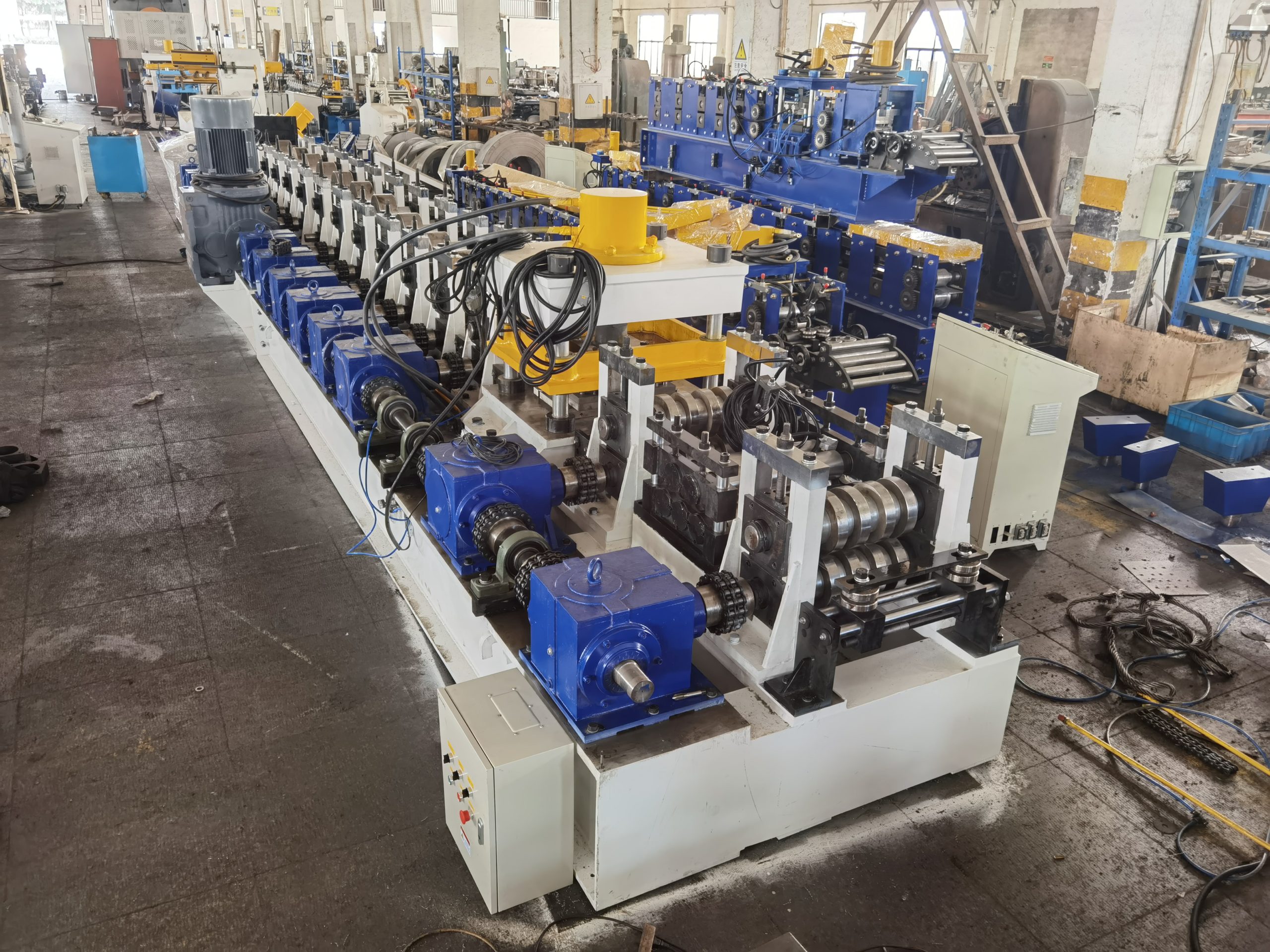

there are four lines totally:① two wave guardrail roll forming machine,② U post roll forming machine,③ connection punching line and ④Fishtail plate moulds.

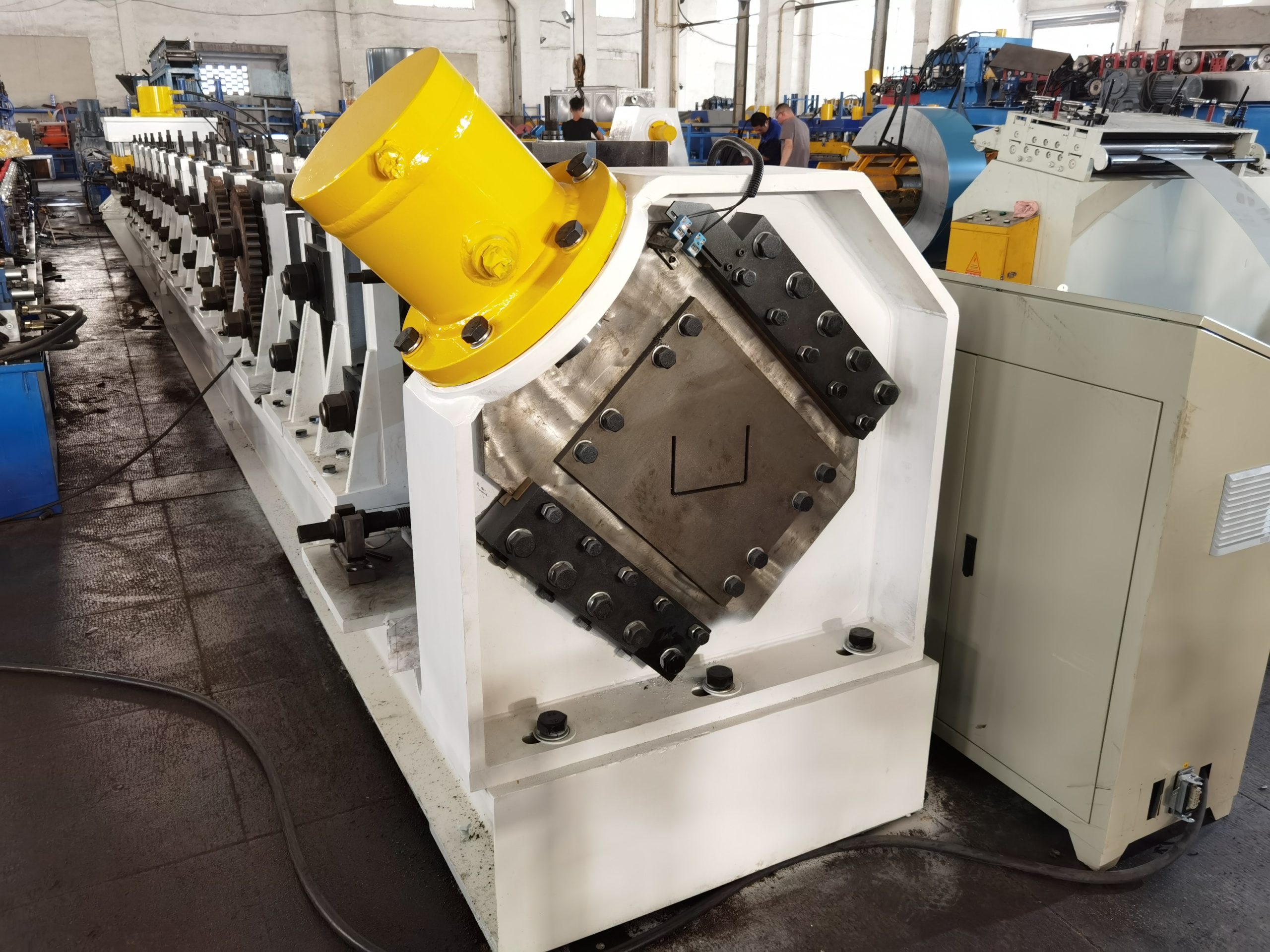

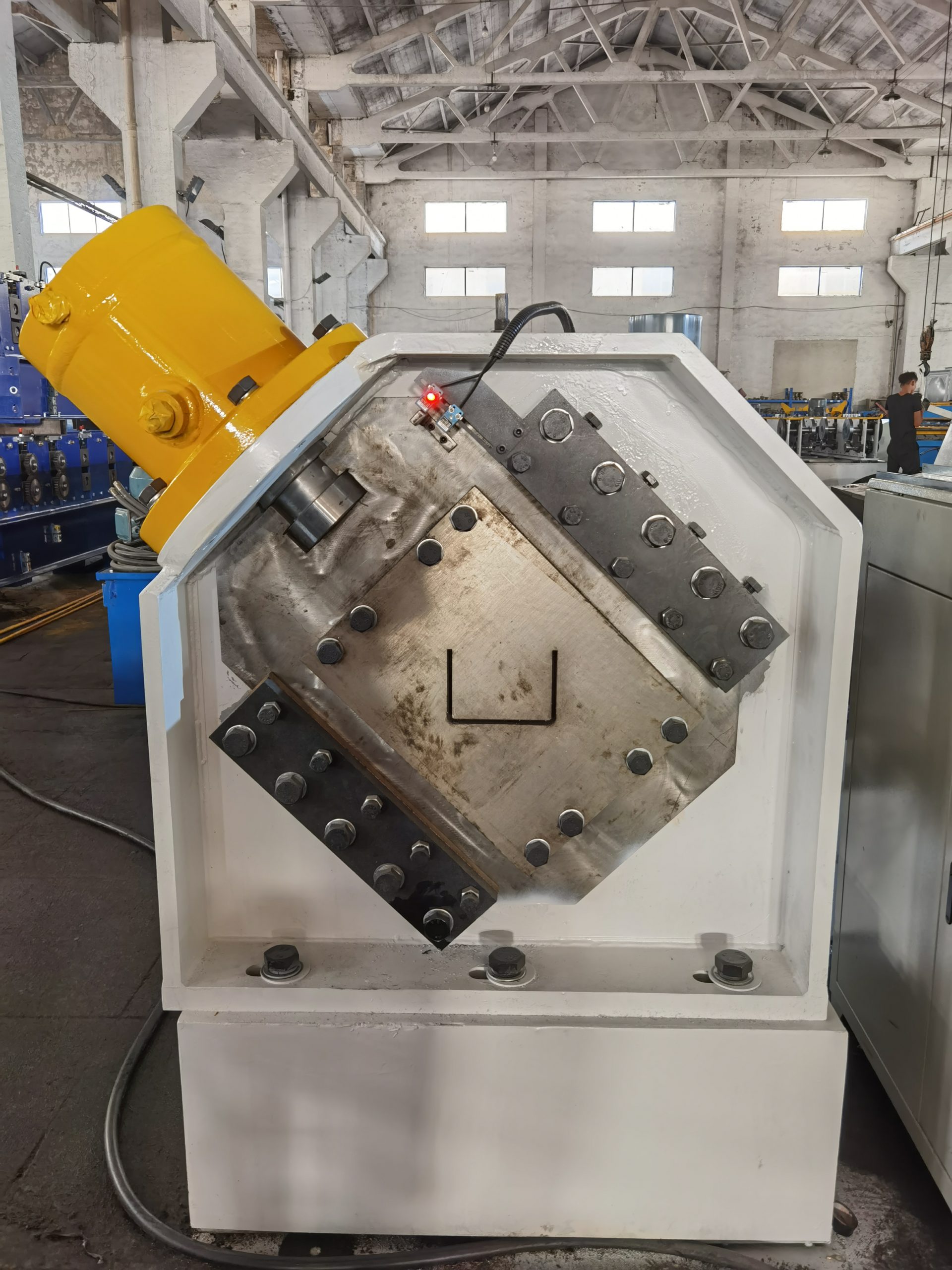

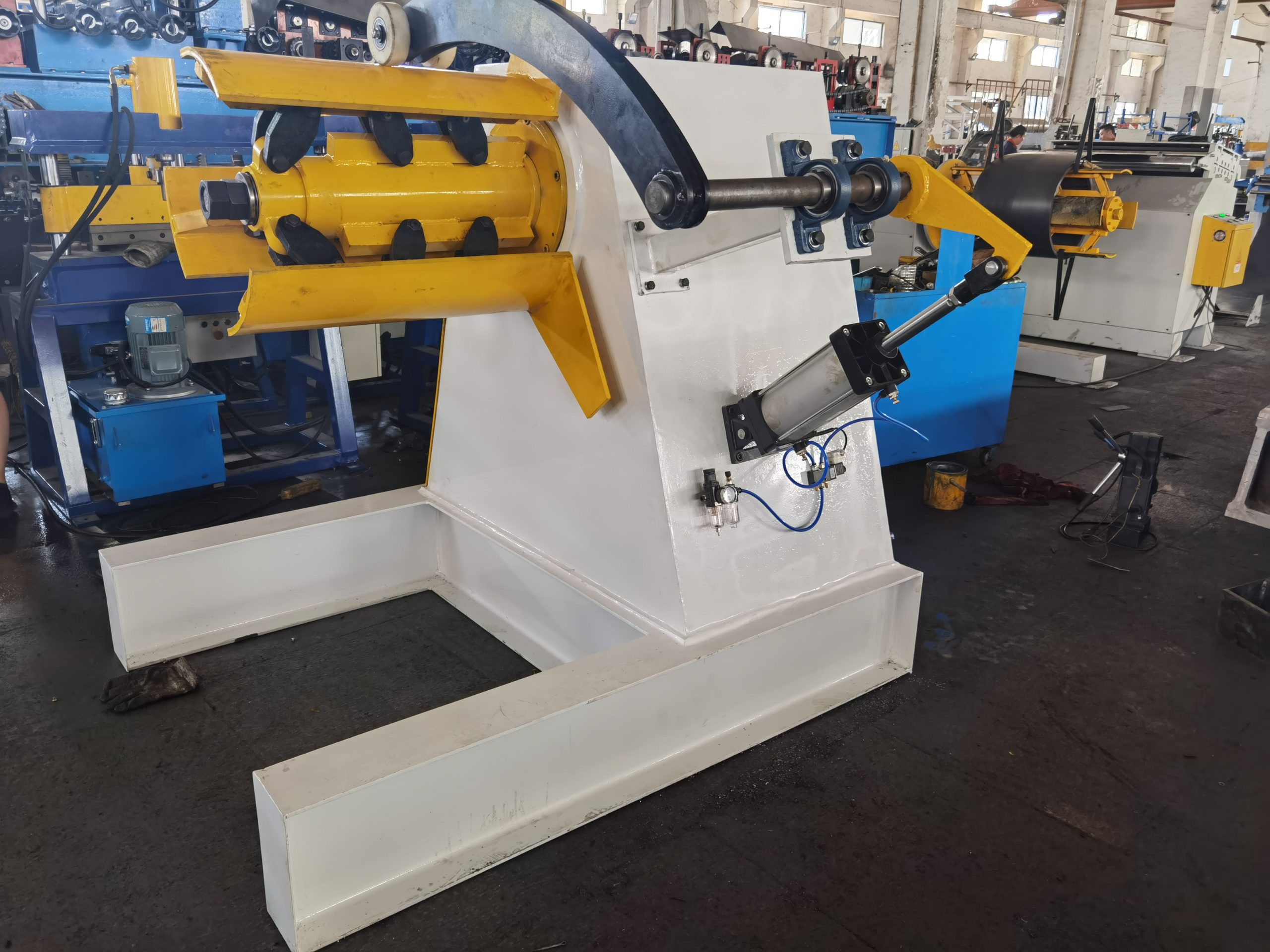

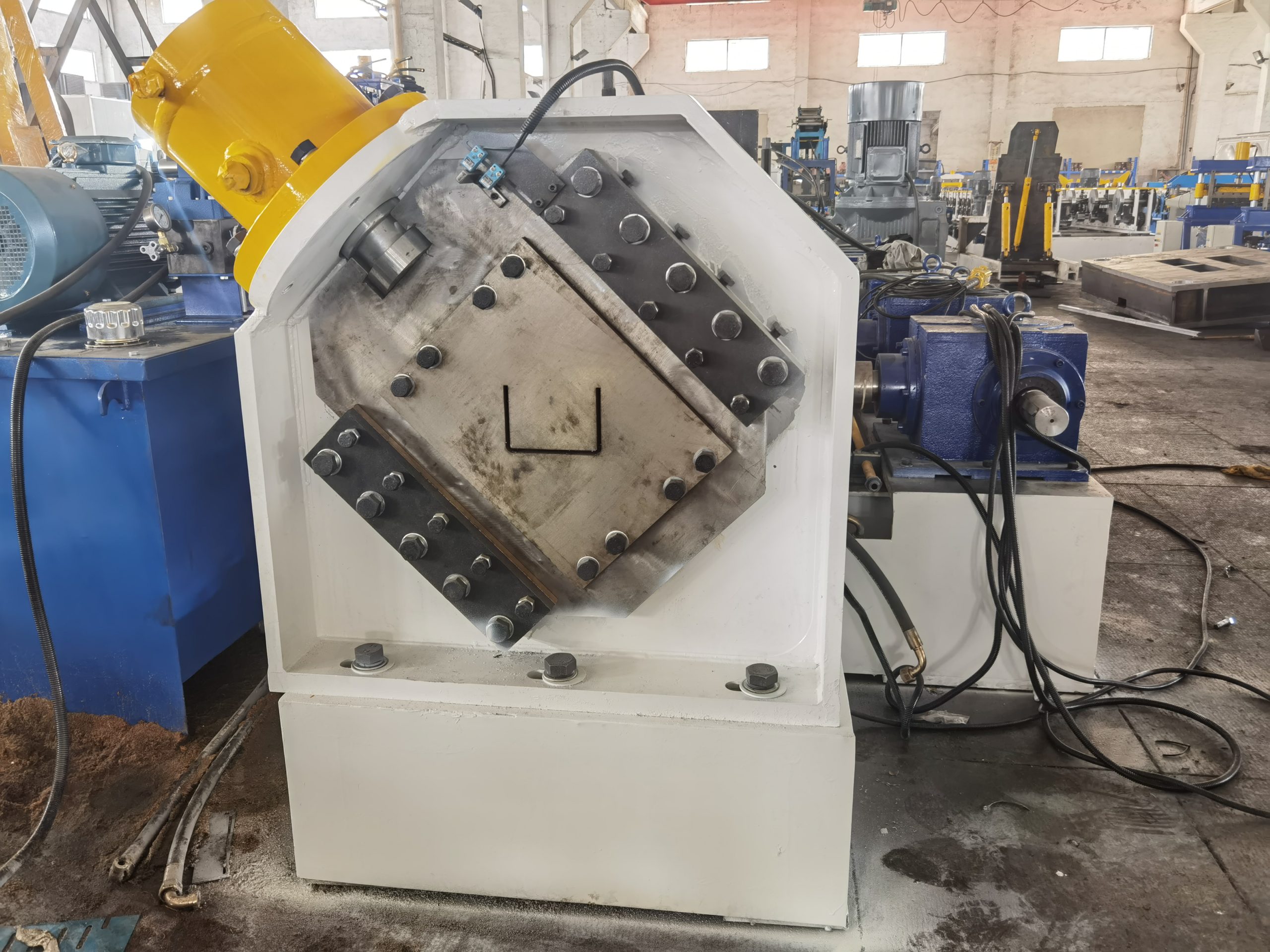

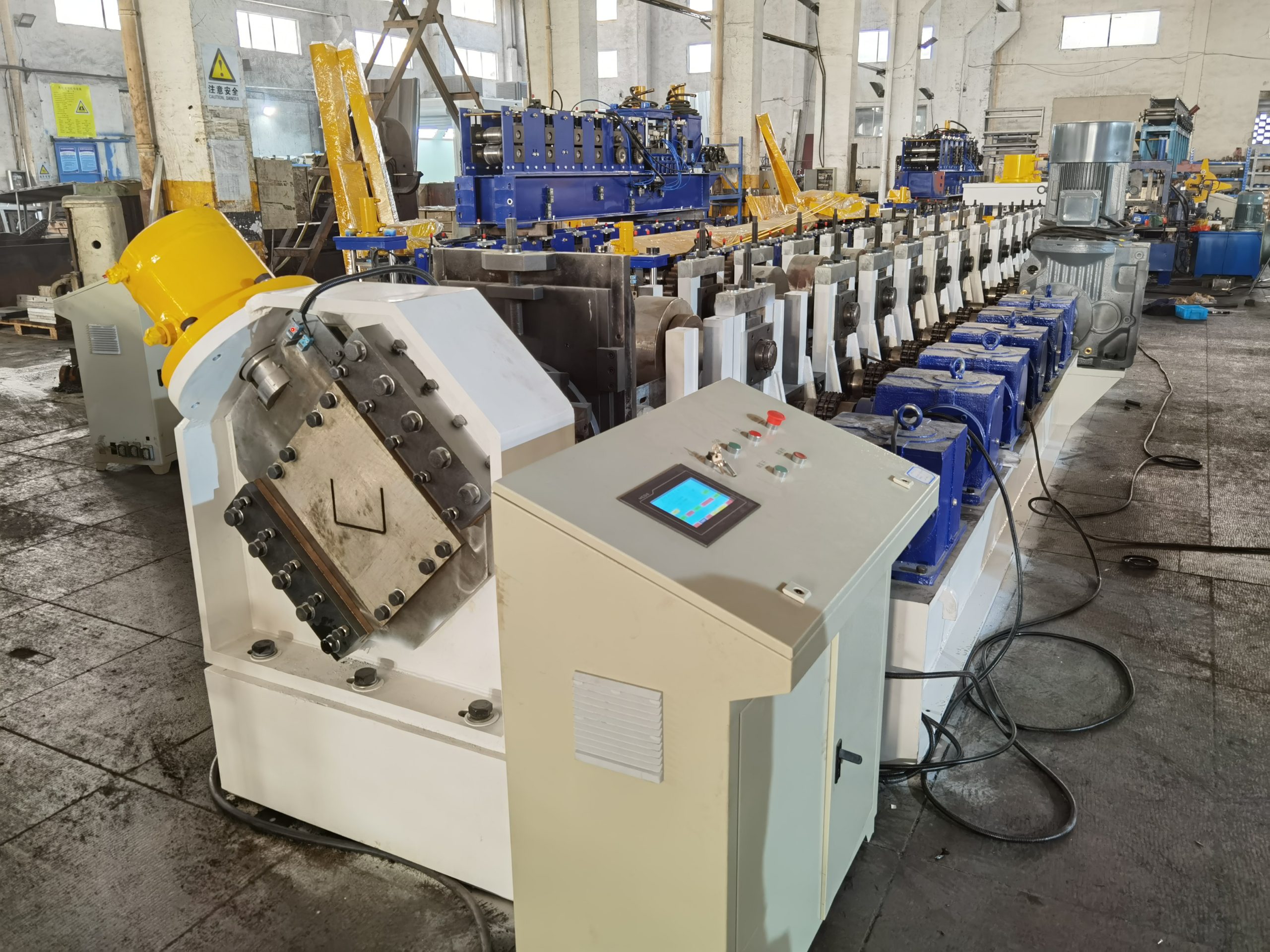

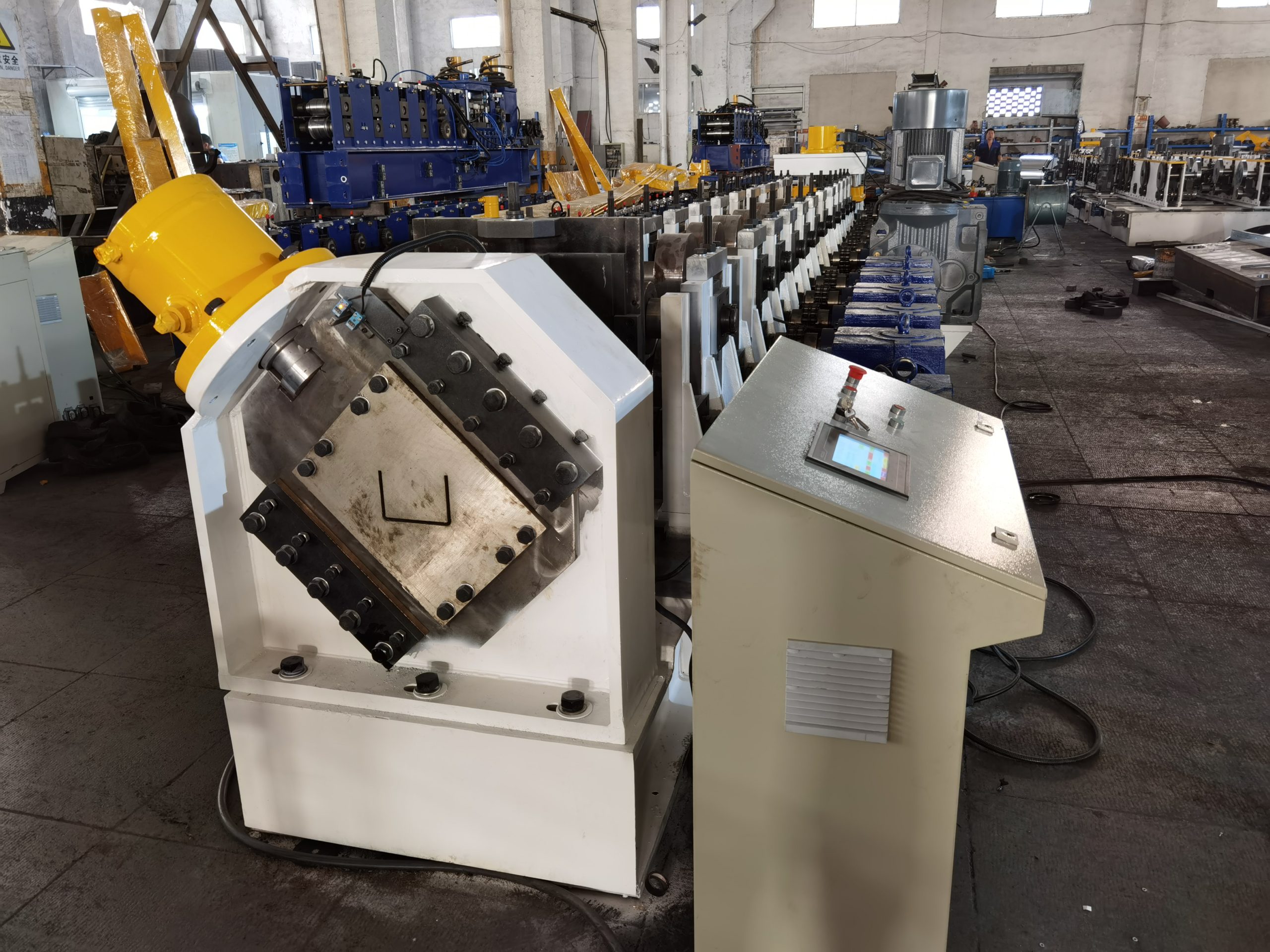

U post beam roll forming machine consists of Hydraulic decoiler-Leveling-Punching machine-Roll forming machine-Cutting-Out table.
Drawing:(we can special design as customer request).
Flowchat
Specification
| NO | NAME | TECHNICAL DATA |
| 1 | Uncoiler | 5T Manual or Automatic |
| 2 | Drive | Wall panel gearbox drive(GY230 type gearbox) |
| 1 | Forming station | 12stations or more.according to customer drawing to design. |
| 2 | Machine structure | wall panel style or cast iron rack system |
| 3 | Punching | Single station four pillar Hydraulic punching or merchanical press. |
| 4 | Cutting | Hydraulic post cutting |
| 5 | Out table | Manual or auto stacker |
| 6 | Computer control system(PLC) | Panasonic or Simens |
| 7 | Roller material | GCr15,Cr12,SKD11 quenching treatment:HRC58-62（optional） |
| 8 | Driving | Chain drive or gearbox drive |
| 9 | Forming speed | 0-15m/min |
| 10 | Raw material request: | thickness 4-5mm,Q235,Q345 galvanized steel and hot rolled steel,stainless steel.carbon steel plate. |
| 11 | Main shaft diameter | Φ110mm. |
| 12 | Main motor | 45Kw,hydraulic power:30Kw |
Customer case
U/C/Sigma post roll forming machine sold to Saudi Arabia.
Highway U post beam roll forming machine components
