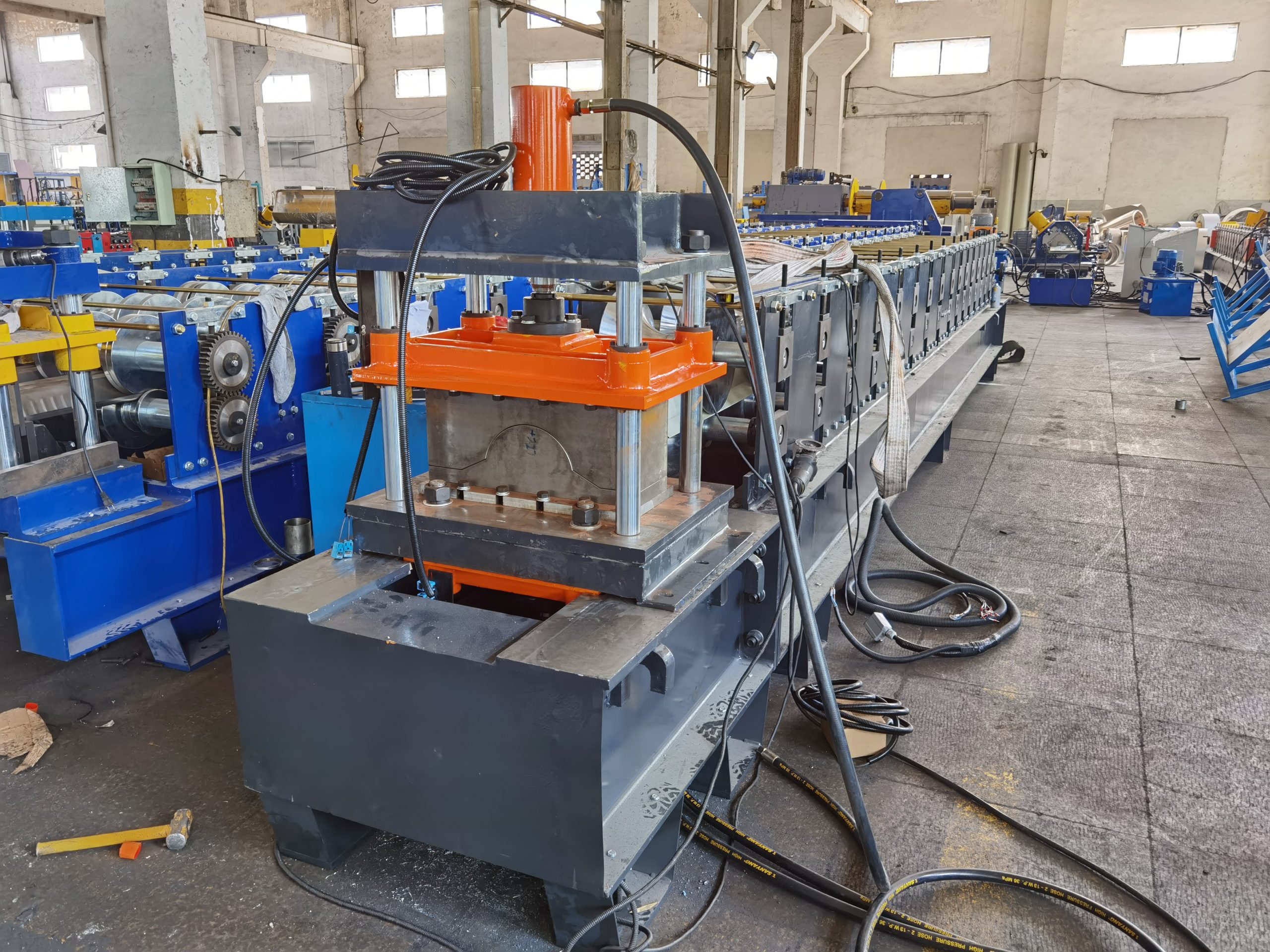

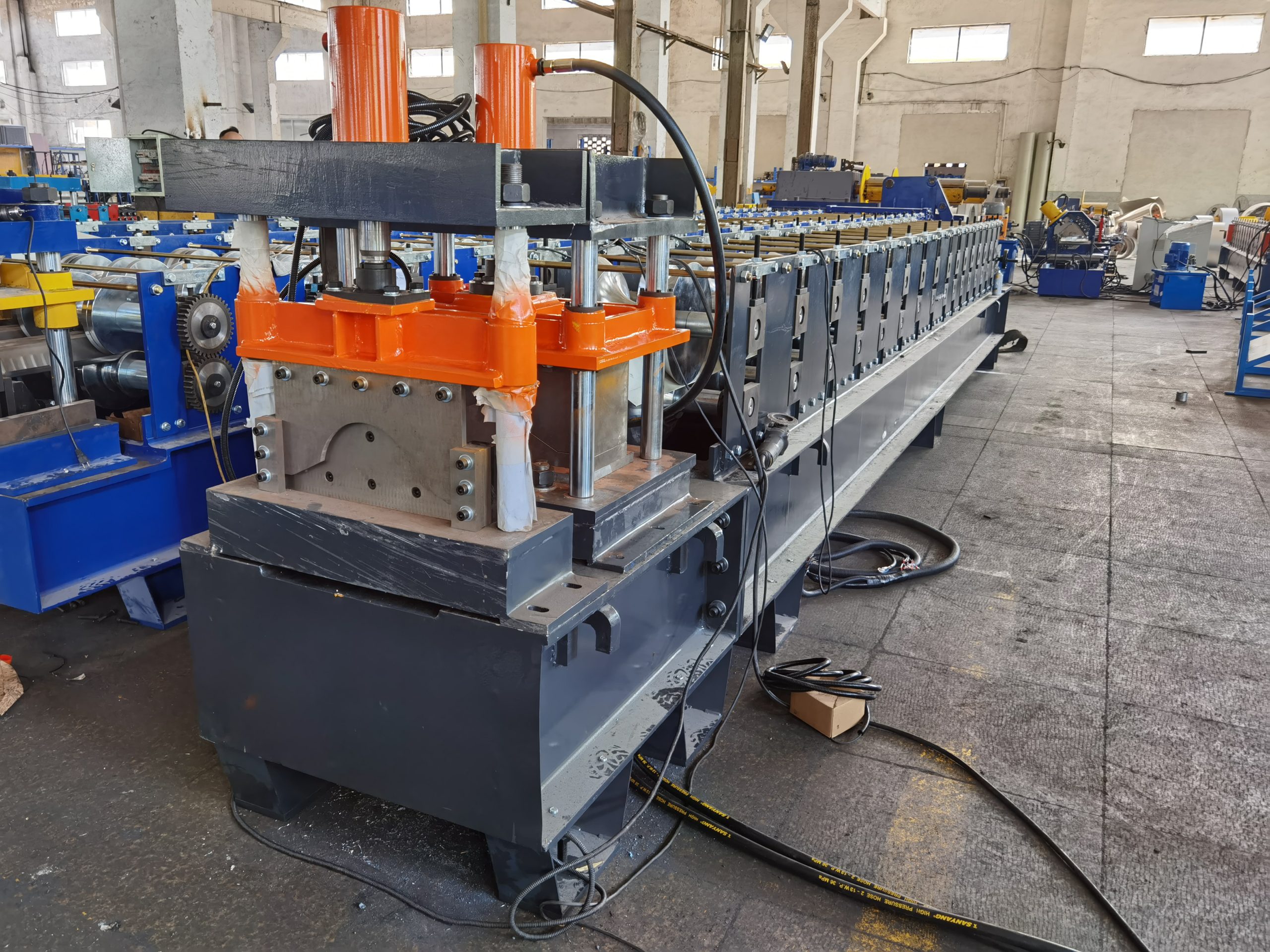

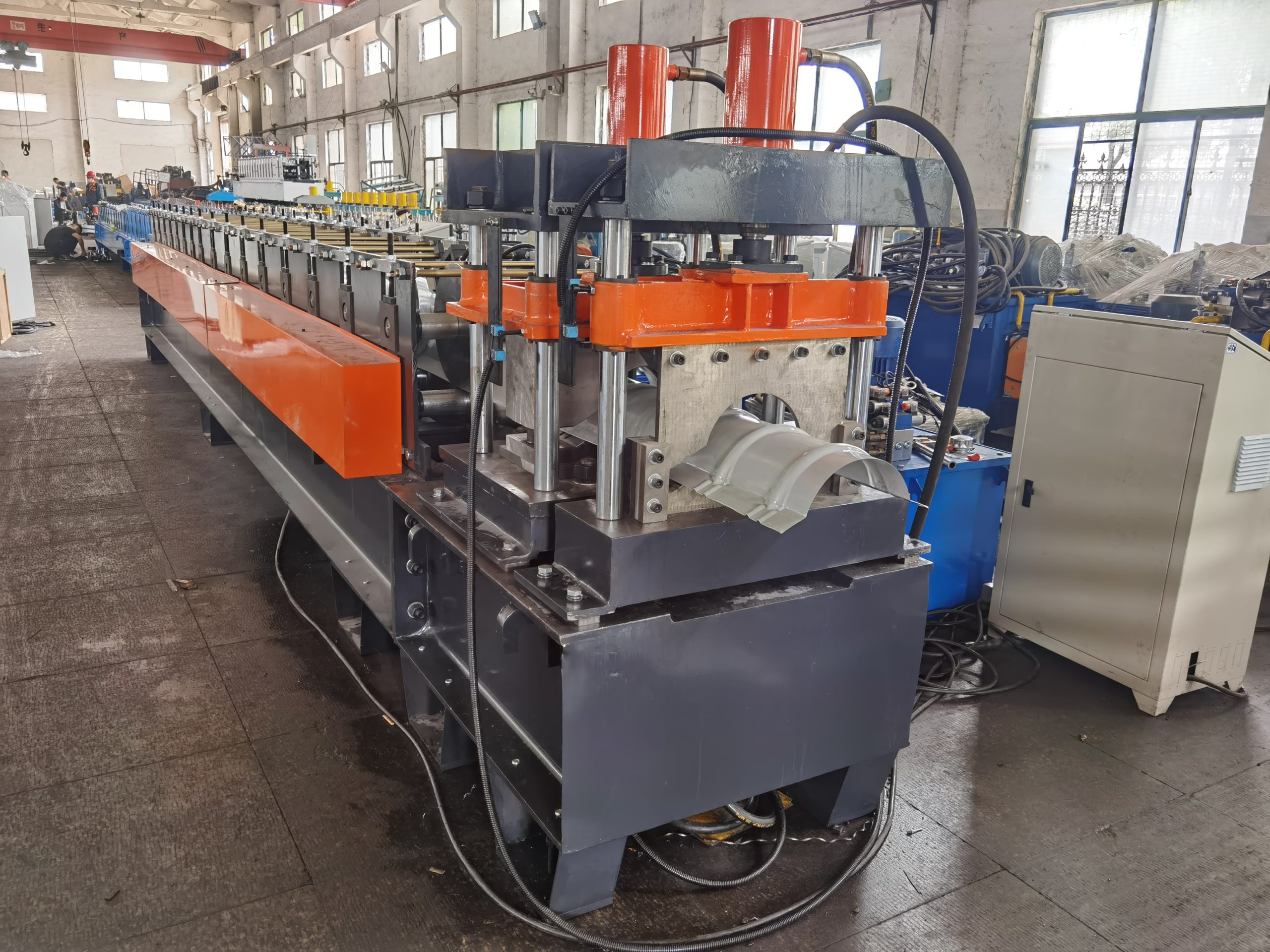

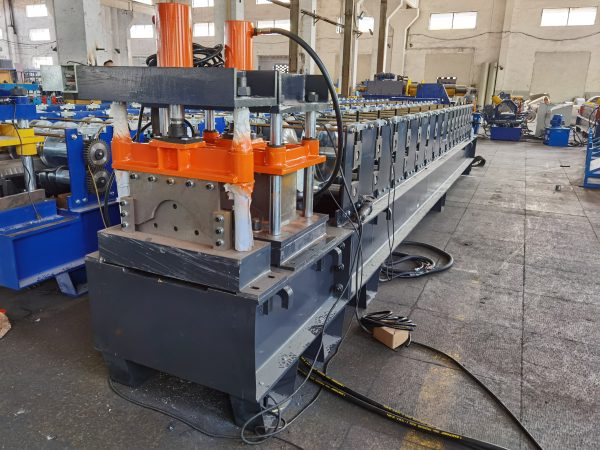

Ridge cap roll forming machine
Roof ridge tile cap roll forming machine for the new building materials, colorful, classical and elegant, for your architecture to make the finishing point.Its light weight, good waterproof, easy to install, fast, can be widely used in villa roof, urban flat slope, tourism scenic building roof, is the best partner of color steel tile or color steel plate..The role of roof tiles in buildings:
- Isolate the external space, block the light, and form the space inside the building;
- Dust and rain prevention, preventing natural substances such as rain and snow from entering the interior space of the building.
- The ridge cap can isolating air and heat preservation.
Drawing:(we can special design as customer request).
Flowchat：
Specification:
| NO | NAME | TECHNICAL DATA |
| 1 | Uncoiler | Automatic uncoiler or manual uncoiler. |
| 2 | Drive | Chain drive |

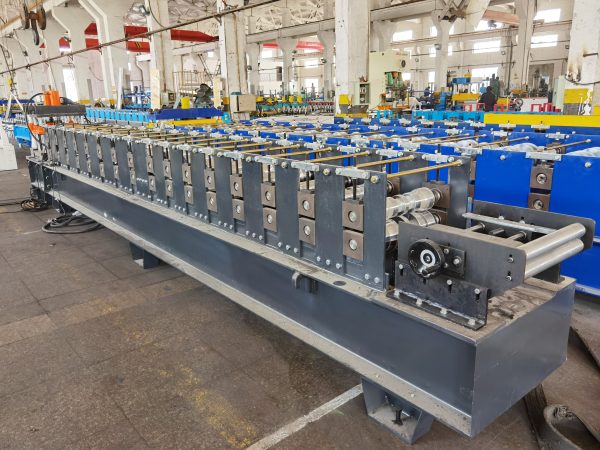

| 3 | Forming station | 12-16stations.according to customer drawing to design. |
| 4 | Machine structure | wall panel style or guide pillar style. |

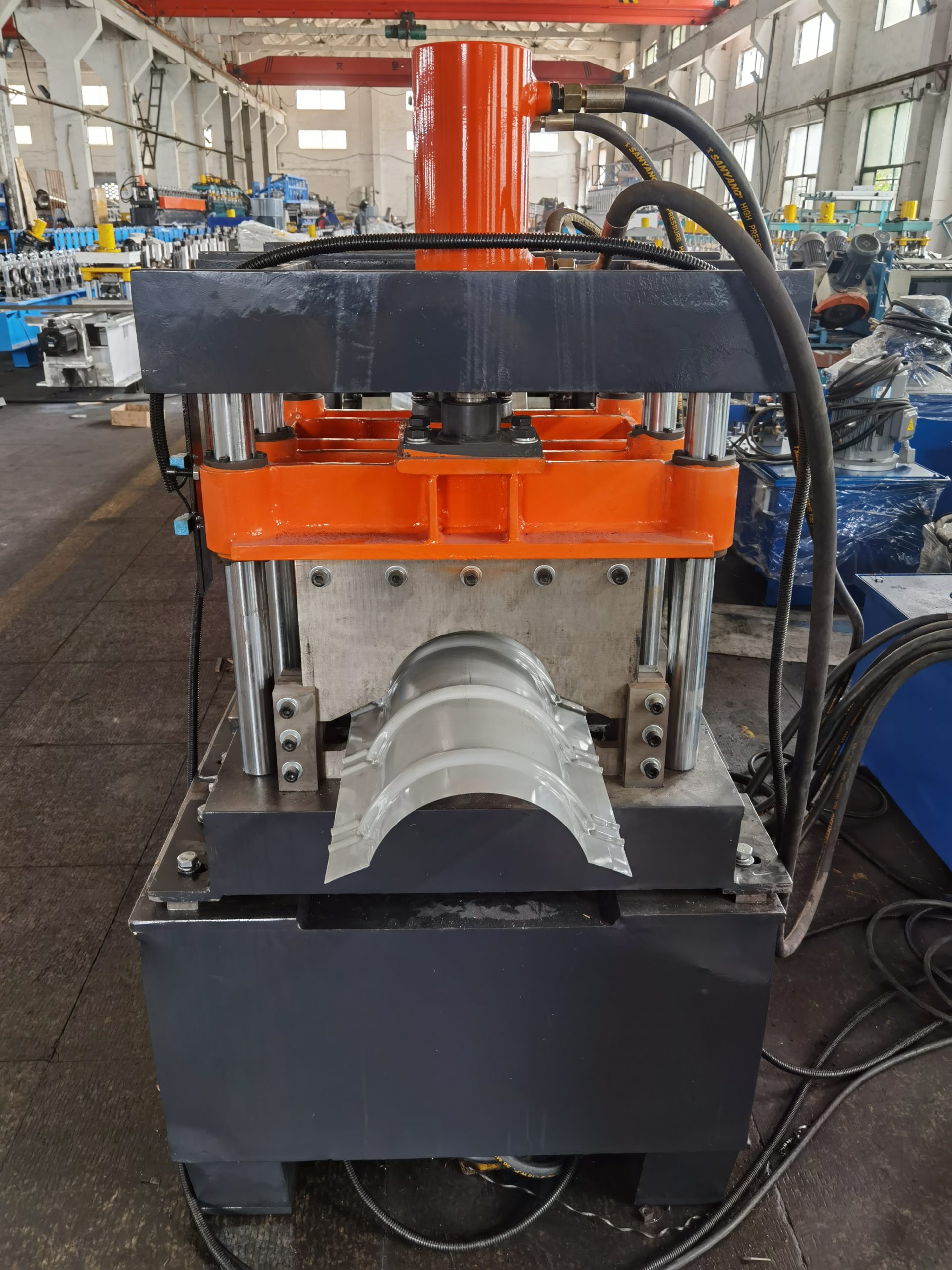

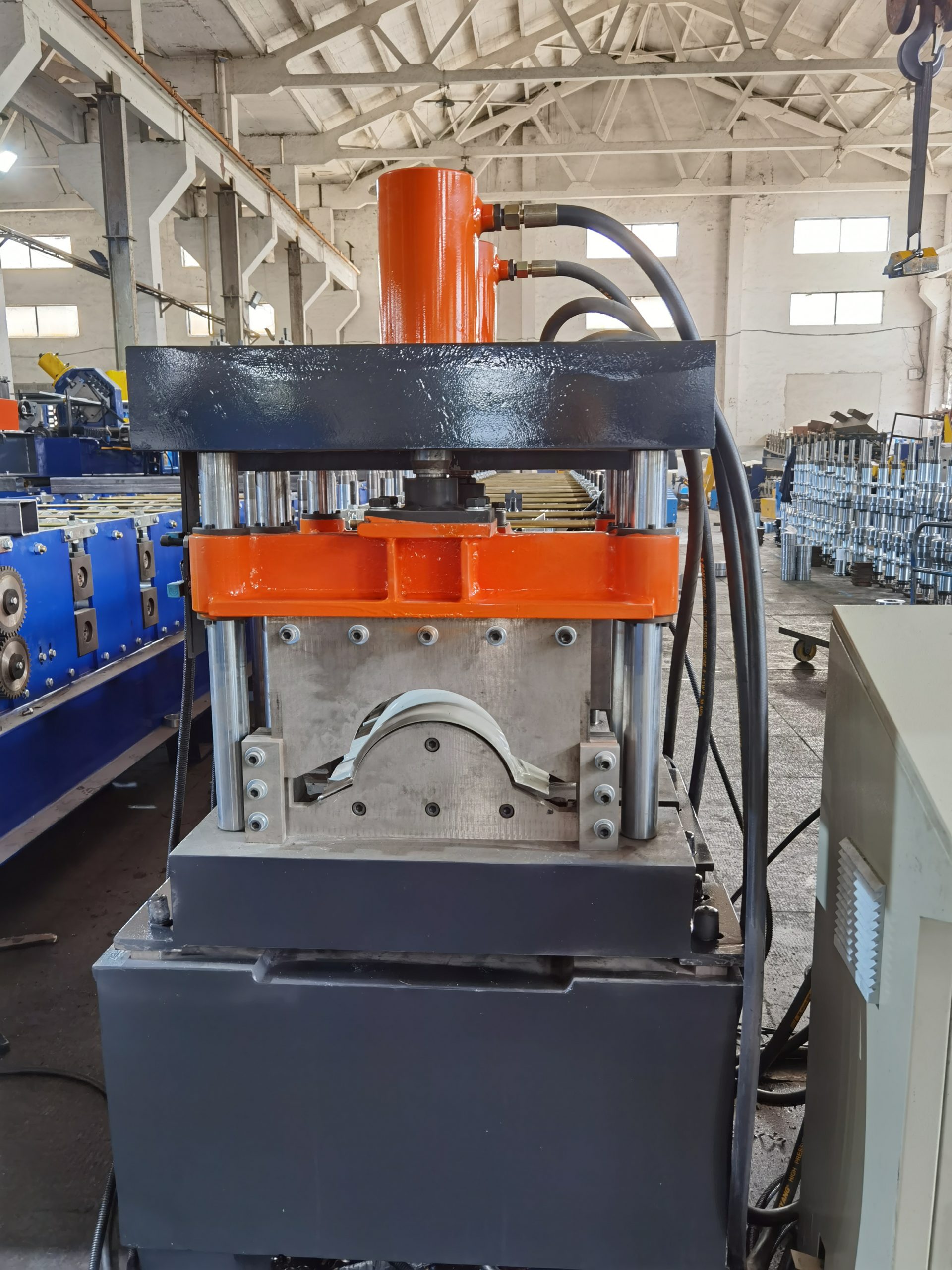

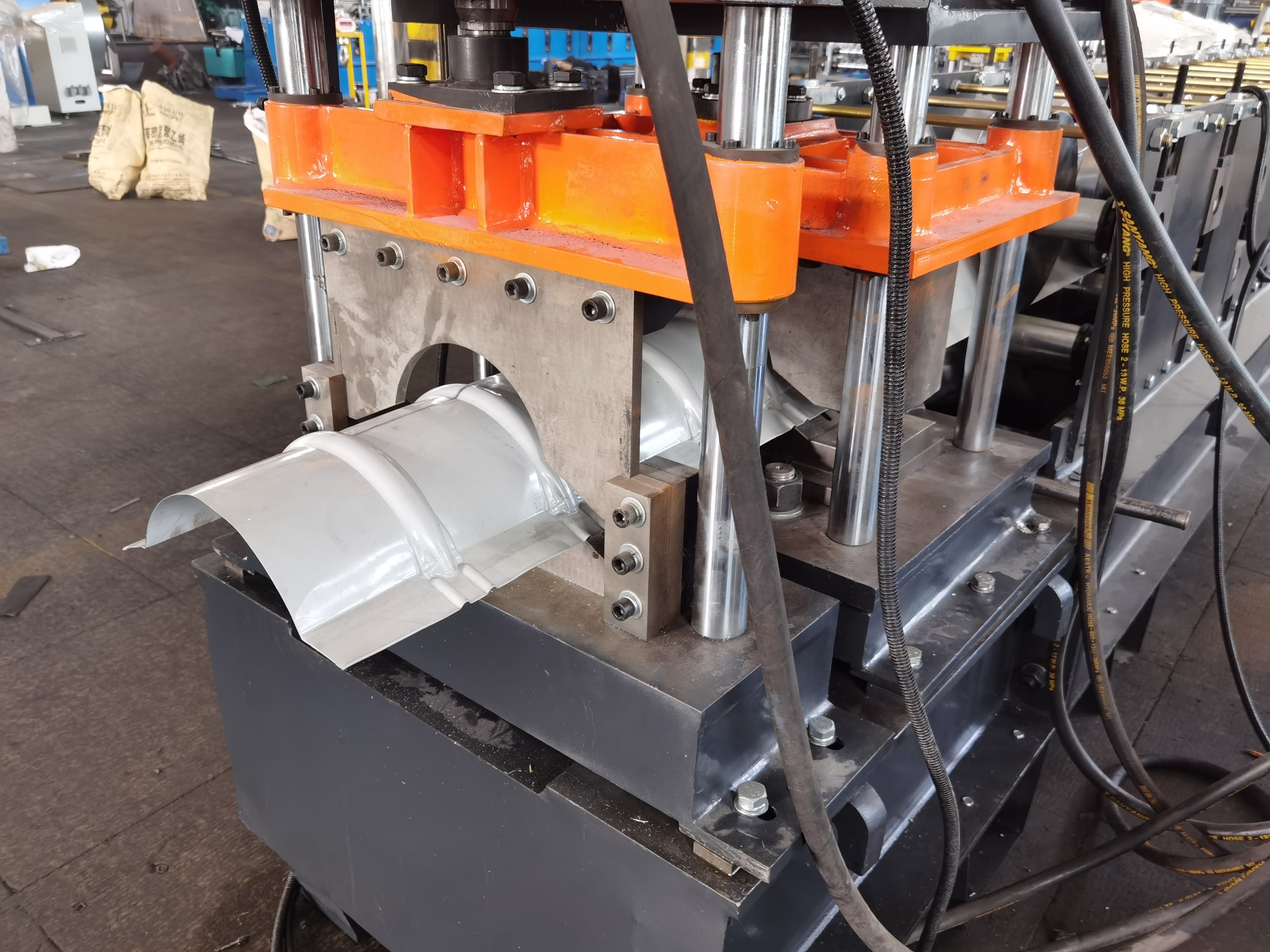

| 5 | Cutting | Hydraulic post cutting or fly saw cutting. |
| 6 | Out table | Manual or auto stacker. |

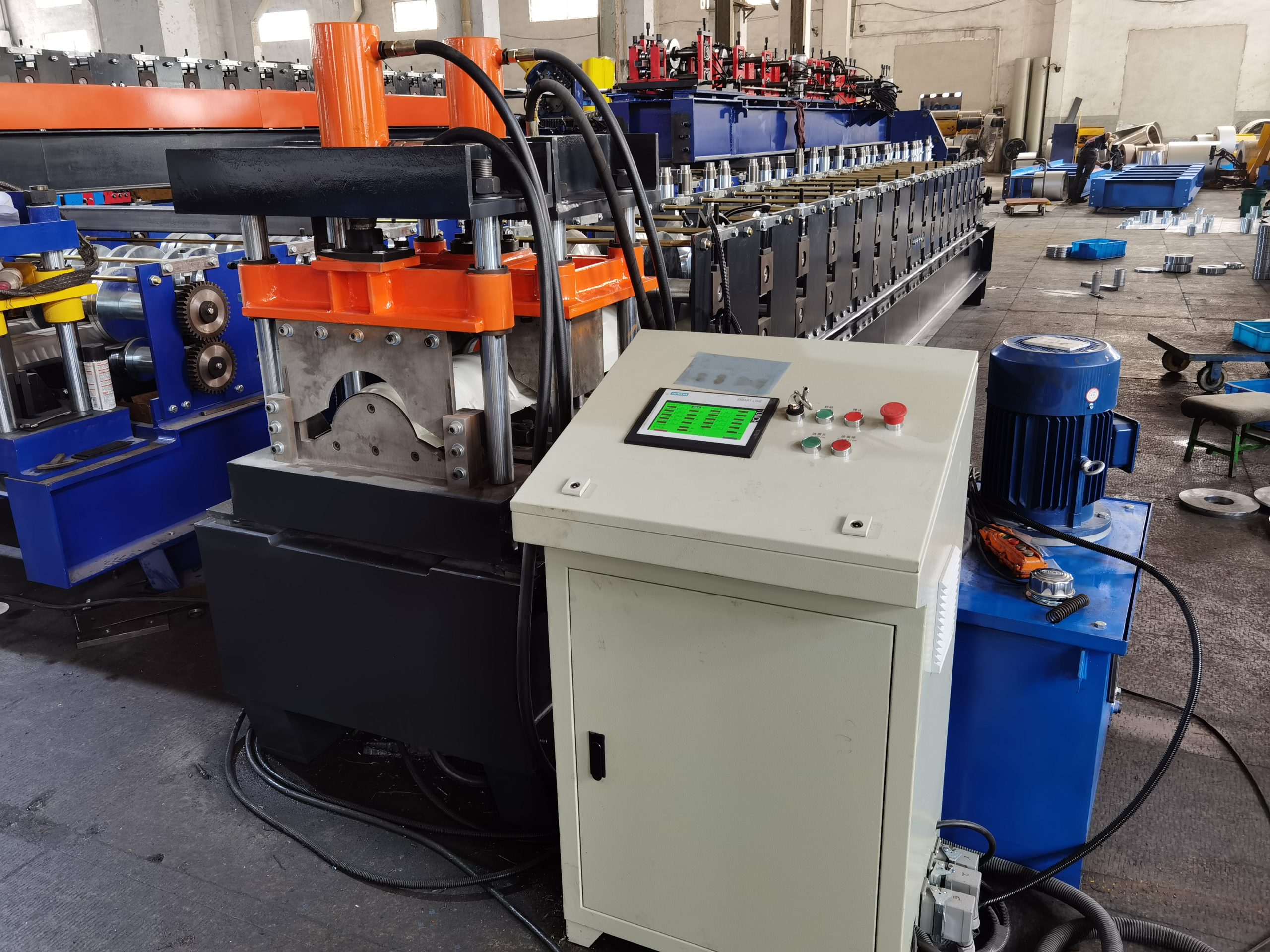

| 7 | Computer control system(PLC) | Panasonic or Simens. |
| 8 | Roller material | GCr15,Cr12,SKD11 quenching treatment:HRC58-62（optional） |
| 9 | Forming speed | 0-30m/min. |
| 10 | Raw material request: | Thickness:0.27-0.8mm Q235,Q345 galvanized steel and hot rolled steel,stainless steel. |
| 11 | Main shaft diameter | Φ60 |
Customer case：

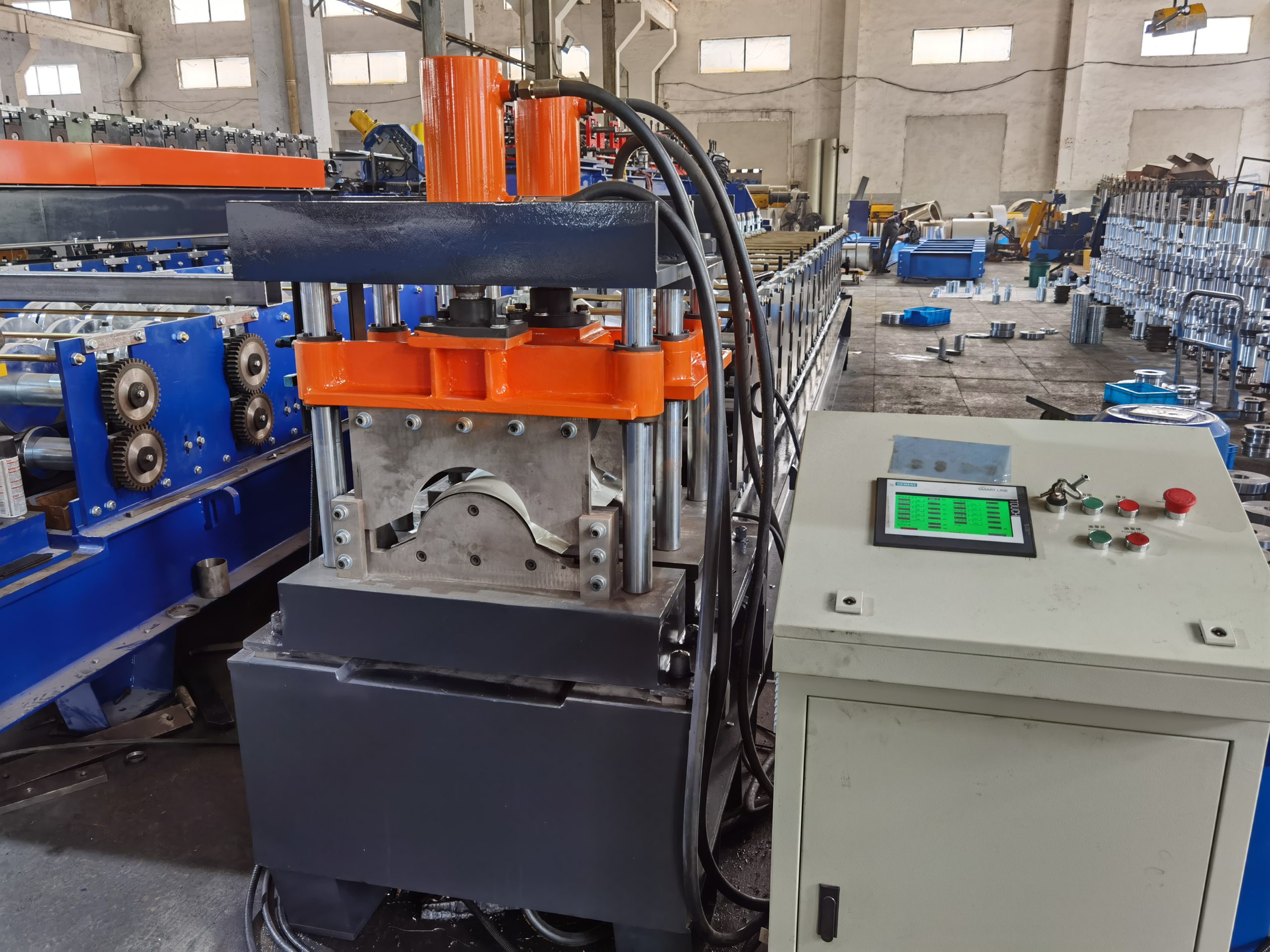

Ridge cap roll forming machine sold to Russia.
