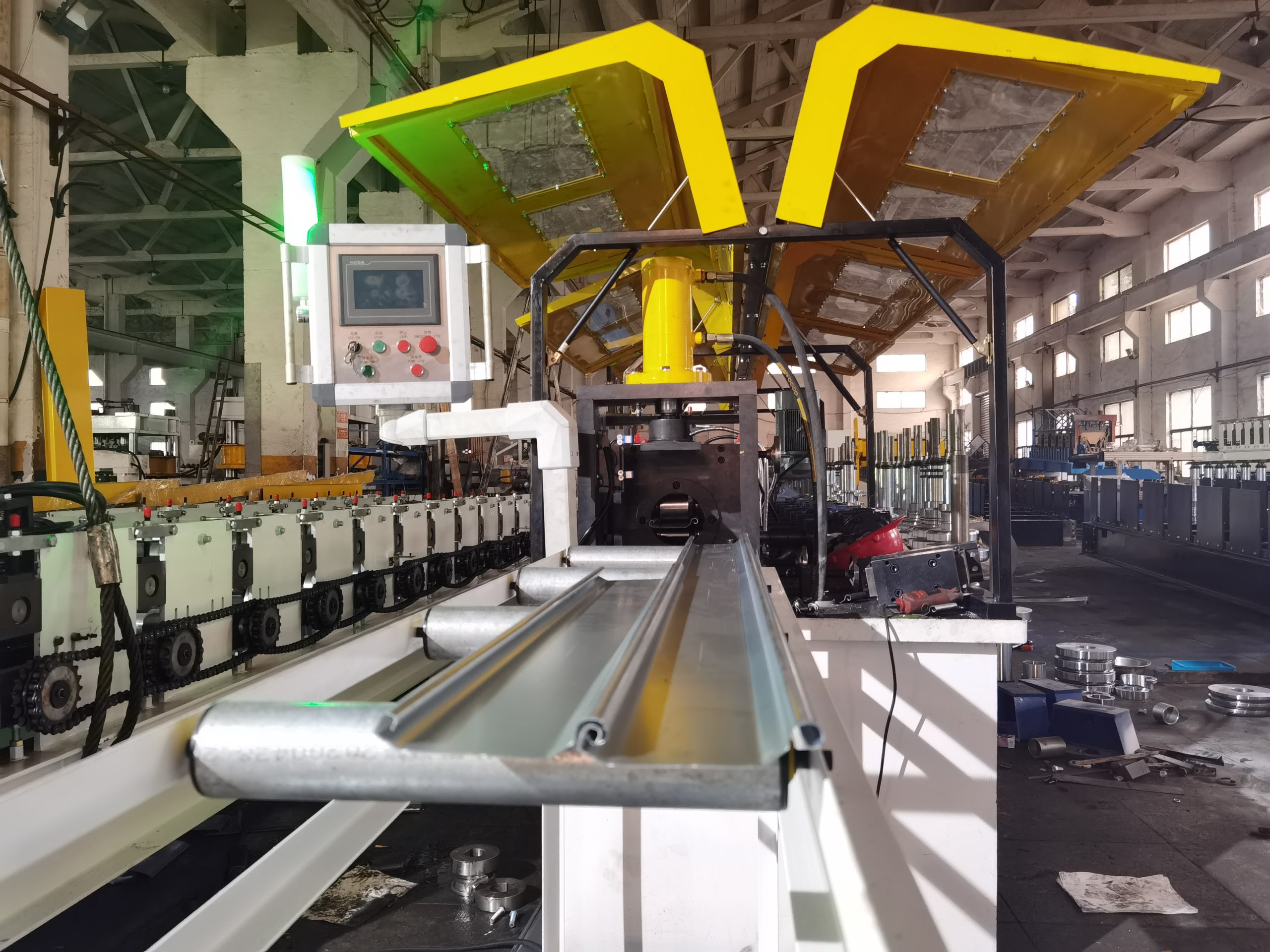

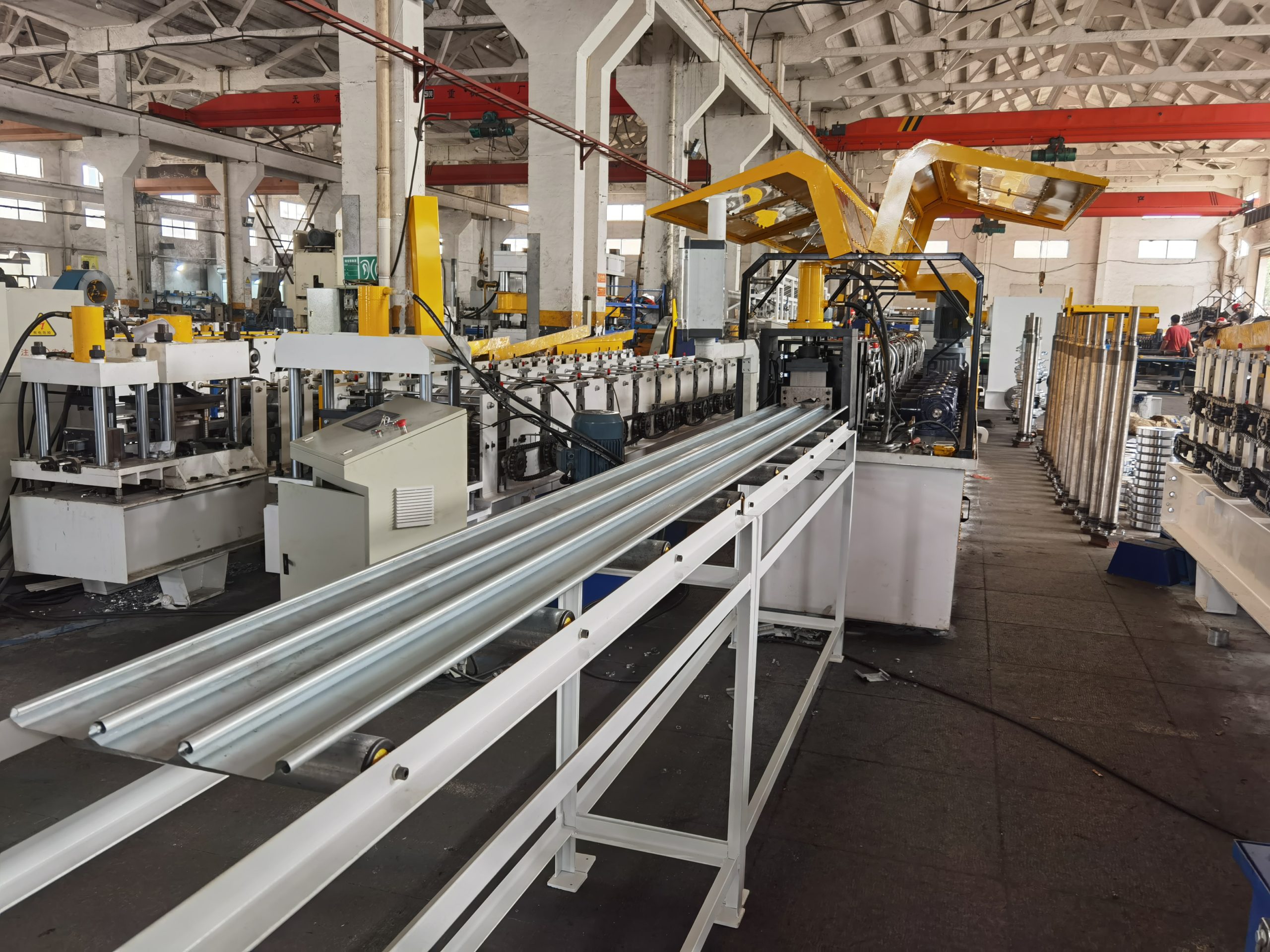

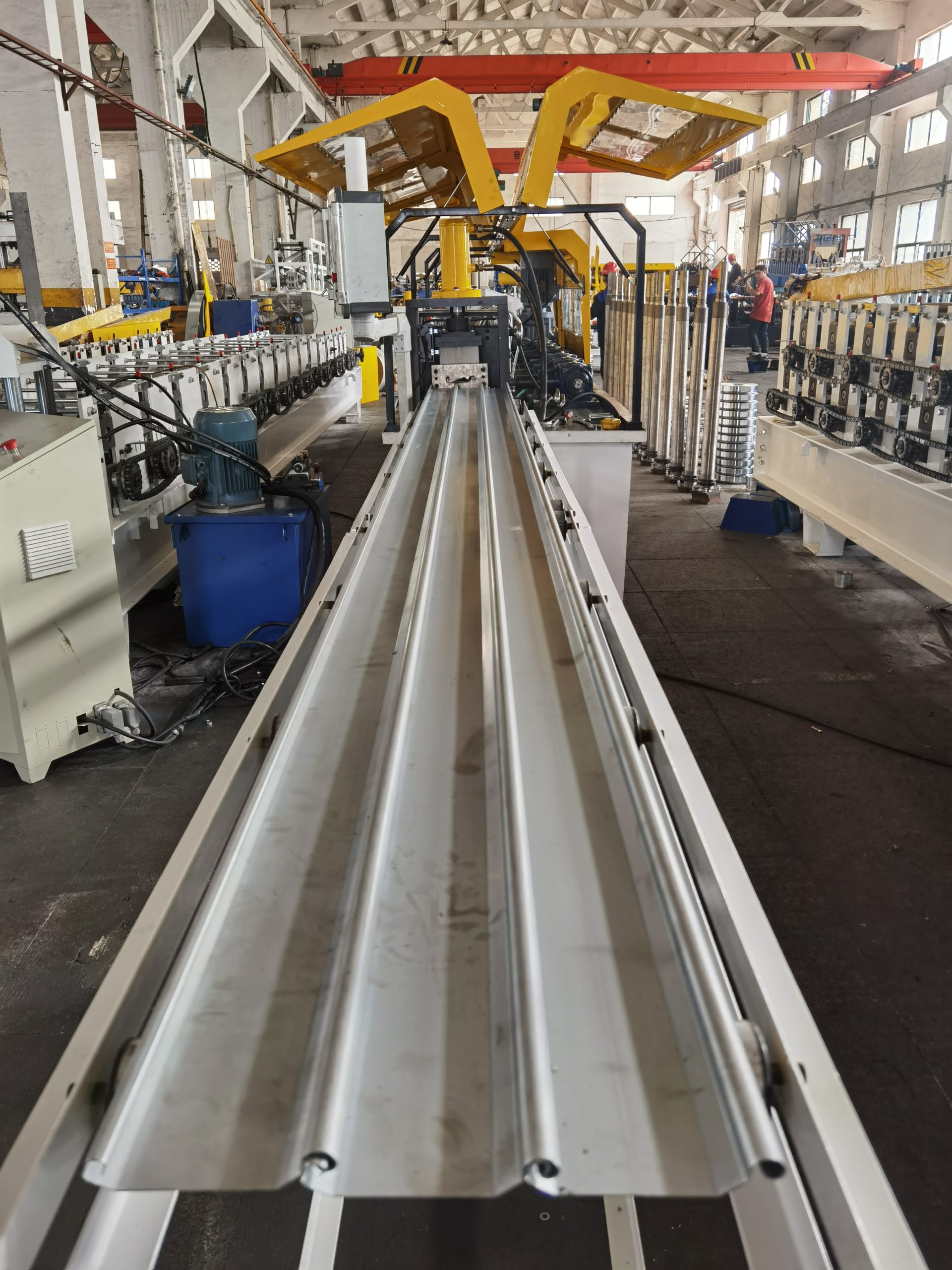

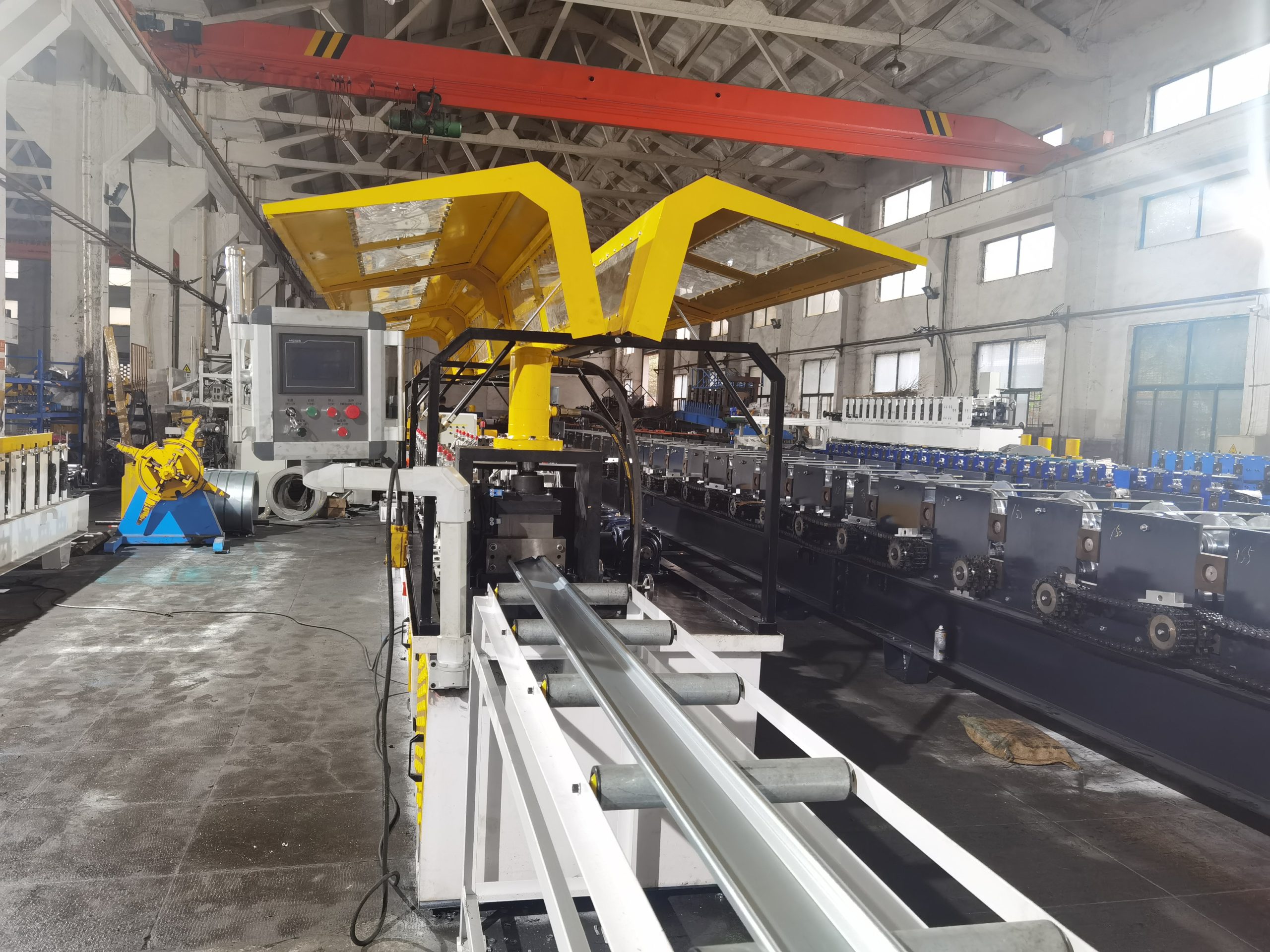

Rolling shutter doors roll forming machine
Rolling shutter doors are suitable for commercial facades, garages, shopping malls, hospitals, factories and mines and other public places or residences. In particular, the door opening is large, and it is inconvenient to install the ground door body, which is convenient and quick to open.
We have much experienced to produce the window&door frame roll forming machine,roller shutter slats roll forming machine,PU roller shutter slats machine,garage door frame roll forming machine etc.We exported these different kinds of roller shutter slats machines to India,Venezuela,Colombia,Turkey,Australia etc.
The roller shutter machine with high length precision and fast speed with gear box drive.Our company provides customers with turnkey services. The company adheres to the principle of “Honesty build the brand,Quality wins the world ” to provide 24-hour online services for domestic and foreign customers.
If you are interested in our machines, welcome to inquiry us.Bigpower whole group will always here to support and service for you.
Drawing:
Process:
Specification:
| NO | NAME | TECHNICAL DATA |
| 1 | Forming station | Normally 20stations or more.accroding to customer drawing to design. |
| 2 | Machine structure | wall panel style or cast iron rack system |
| 3 | Cutting | Hydraulic post cutting or fly shear or pre-cutting |
| 4 | Out table | Manual or automatic |
| 5 | Computer control system(PLC) | Panasonic or Simens |
| 6 | Roller material | GCr15,Cr12,SKD11 quenching treatment:HRC58-62（optional） |
| 7 | Inverter : | Yaskawa,Siemens,Mitsubishi, panasonic (option Brand). |
| 8 | Driving | Chain drive or gearbox drive. |
| 9 | Forming speed | 0-20m/min |
| 10 | Raw material request: | thickness 0.6-1.5mm,Q235,Q345 galvanized steel and hot rolled steel.cold rolled steel.stailness steel. |
Roller shutter slats roll forming machine components:
