Water channel roll forming machine
Gutter roll forming machine is suitable for companies who work on rainwater goods system.The Gutter thickness of gutter could be 0.4mm-0.6mm or as you request with raw material: Aluminum, Galvanized steel, Painted steel, Galvalume and Cooper etc.Gutter forming machine is used to produce”gutter channel for steel structure and roof drainage system.It is applicable to the villas,industrial and civil buildings,warehouses,special buildings,large span steel structure of the roof, walls and interior and exterior decoration,with light,high strength,construction convenient and fireproofing, long life usuage,maintenance free and other characteristics, has been widely promoted and applied.Bigpower machine can design according to your different drawings:
Drawings:
Flowchat:
Specification:
| Drain gutter roll forming machine | ||
| NO | NAME | TECHNICAL DATA |
| 1 | Forming station | Normally 16-20stations or more.according to customer drawing to design. |
| 2 | Machine structure | Chain drive or gearbox drive. |
| 3 | Speed | 0-20m/min. |
| 4 | Cutting | Hydraulic post cutting |
| 5 | Out table | Manual or automatic. |
| 6 | Computer control system(PLC) | Panasonic or Simens. |
| 7 | Roller material | GCr15,Cr12,SKD11 quenching treatment:HRC58-62（optional） |
| 8 | Structure | Wall panel or Torri station. |
| 10 | Raw material request: | Thickness:0.4-0.6mm,PPGI,copper,galvanized steel,Galvalume. |
| 11 | Shaft of diameter | Φ70mm quenching treatment (Harbin bearing). |
Customer case:
Drain gutter roll forming machine sold to Crotia.
Drain gutter roll forming machine sold to Mexico.
Drain gutter roll forming machine sold to Russia.

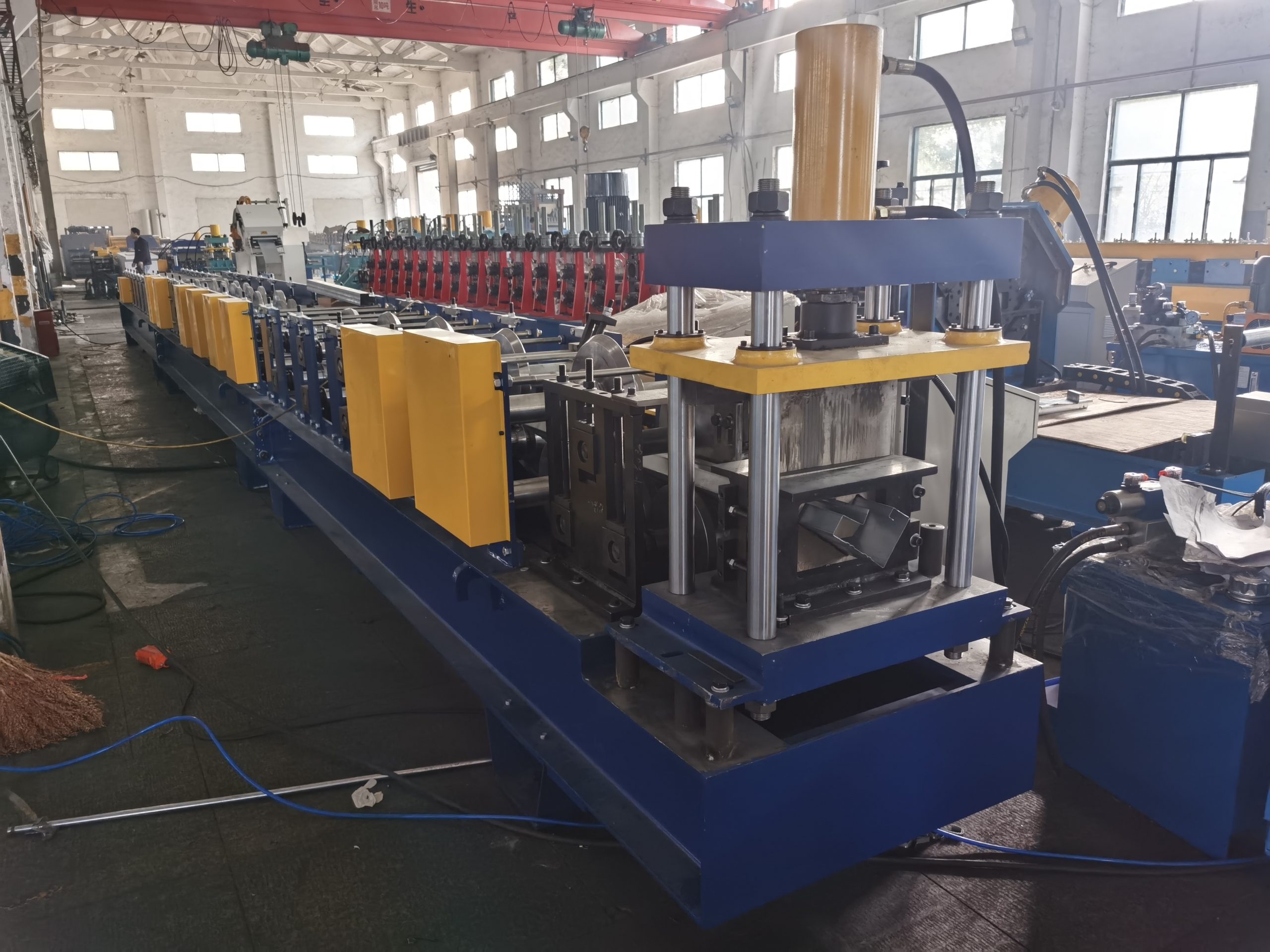

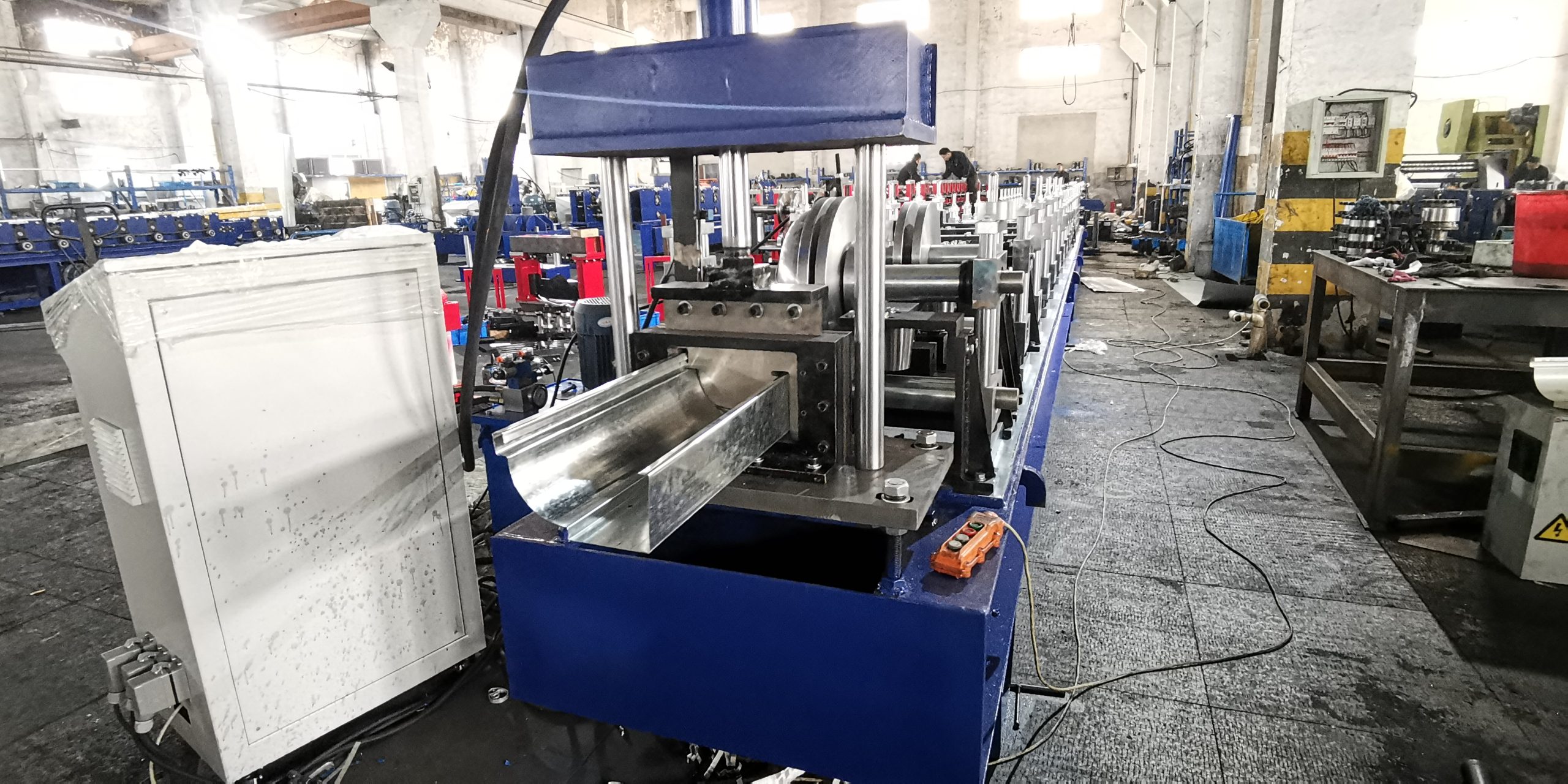

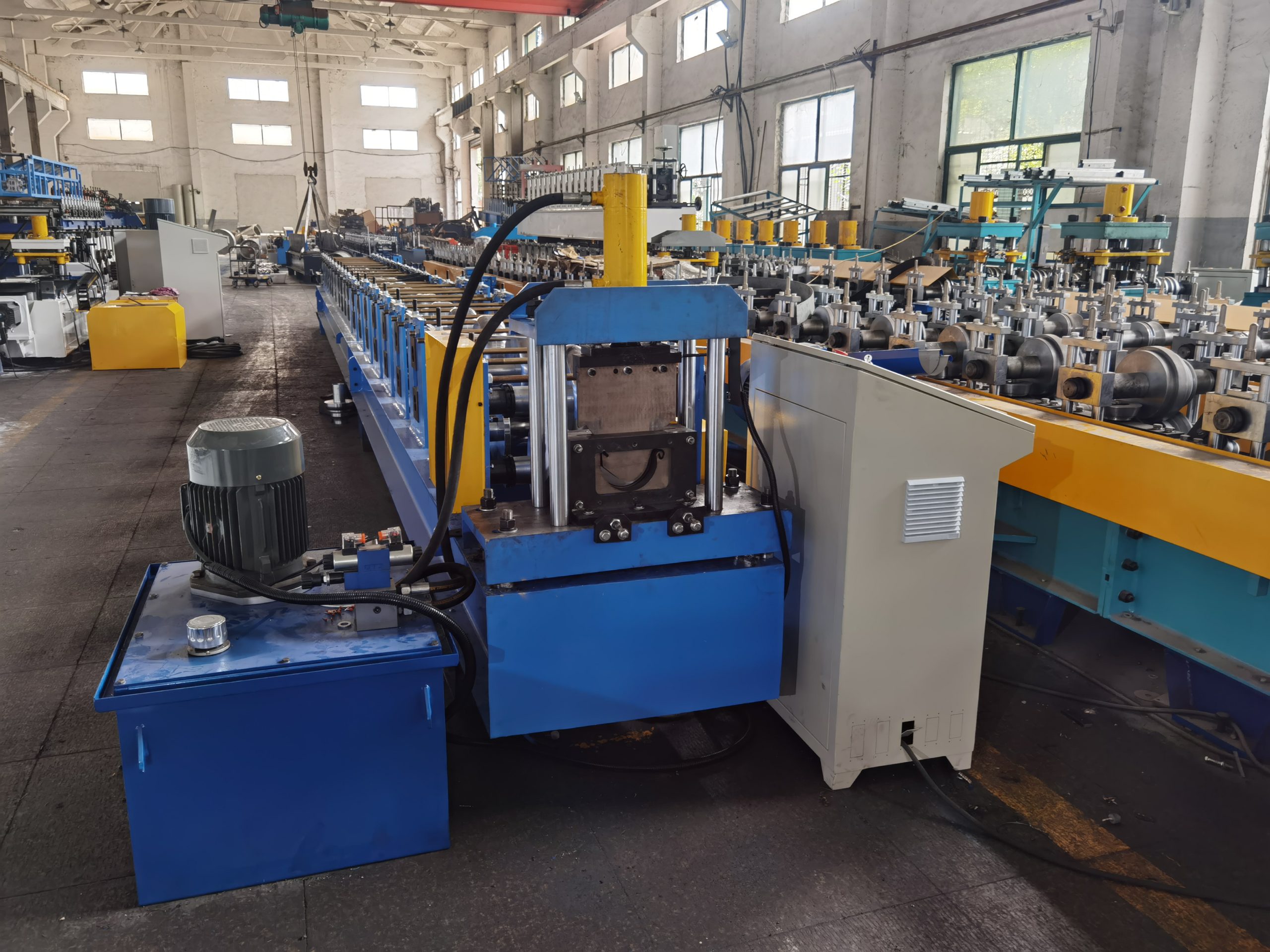

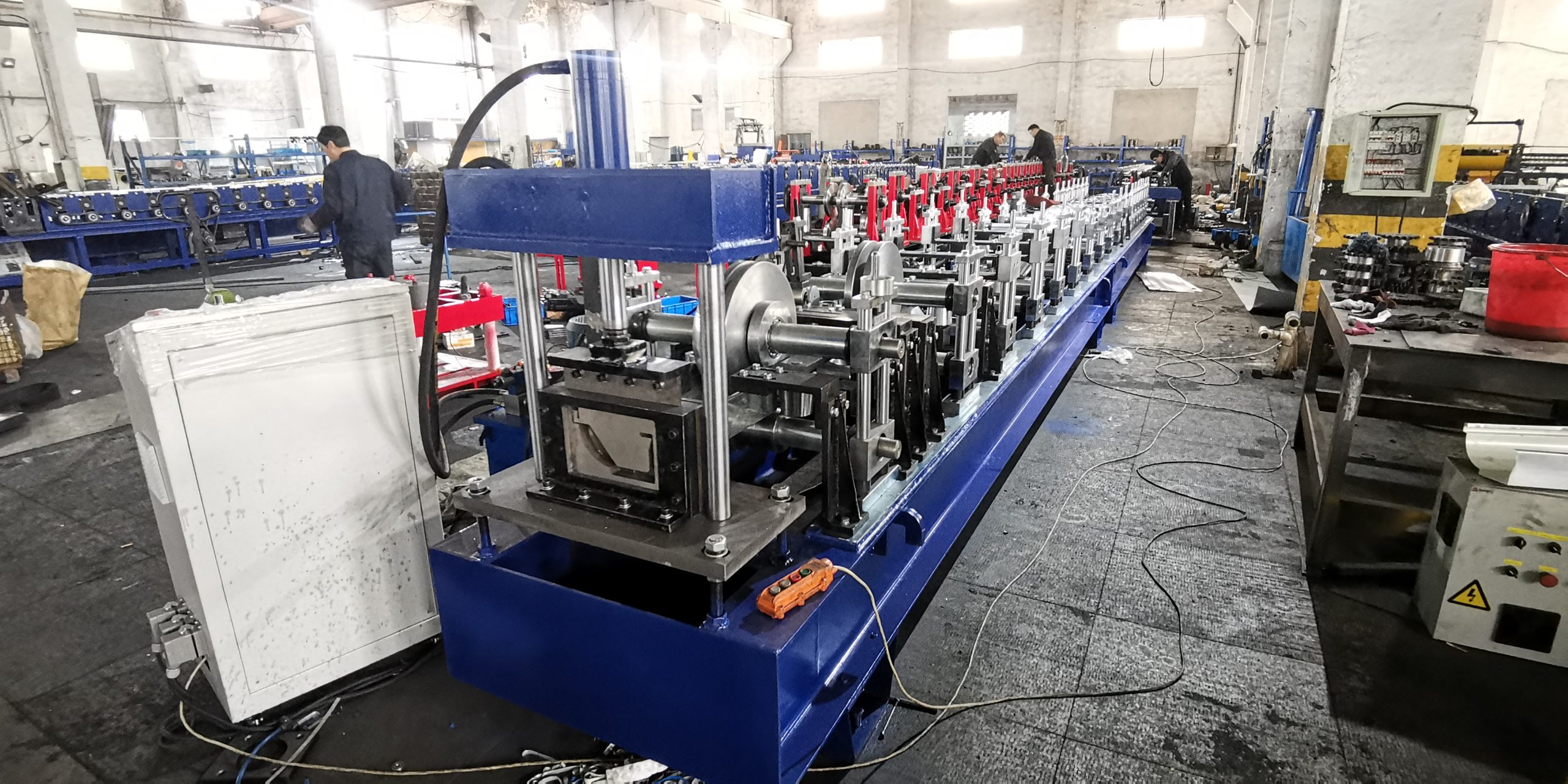

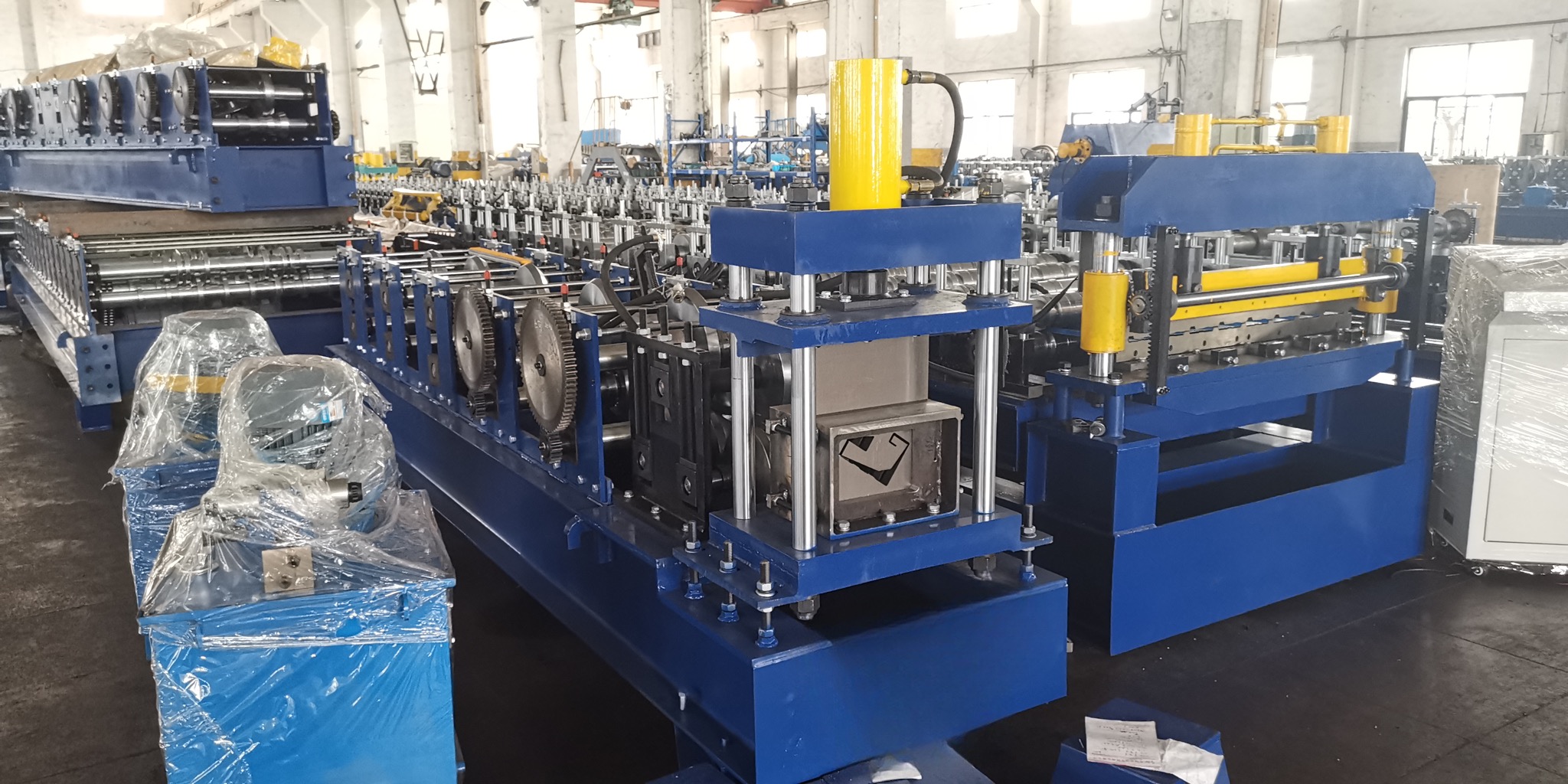

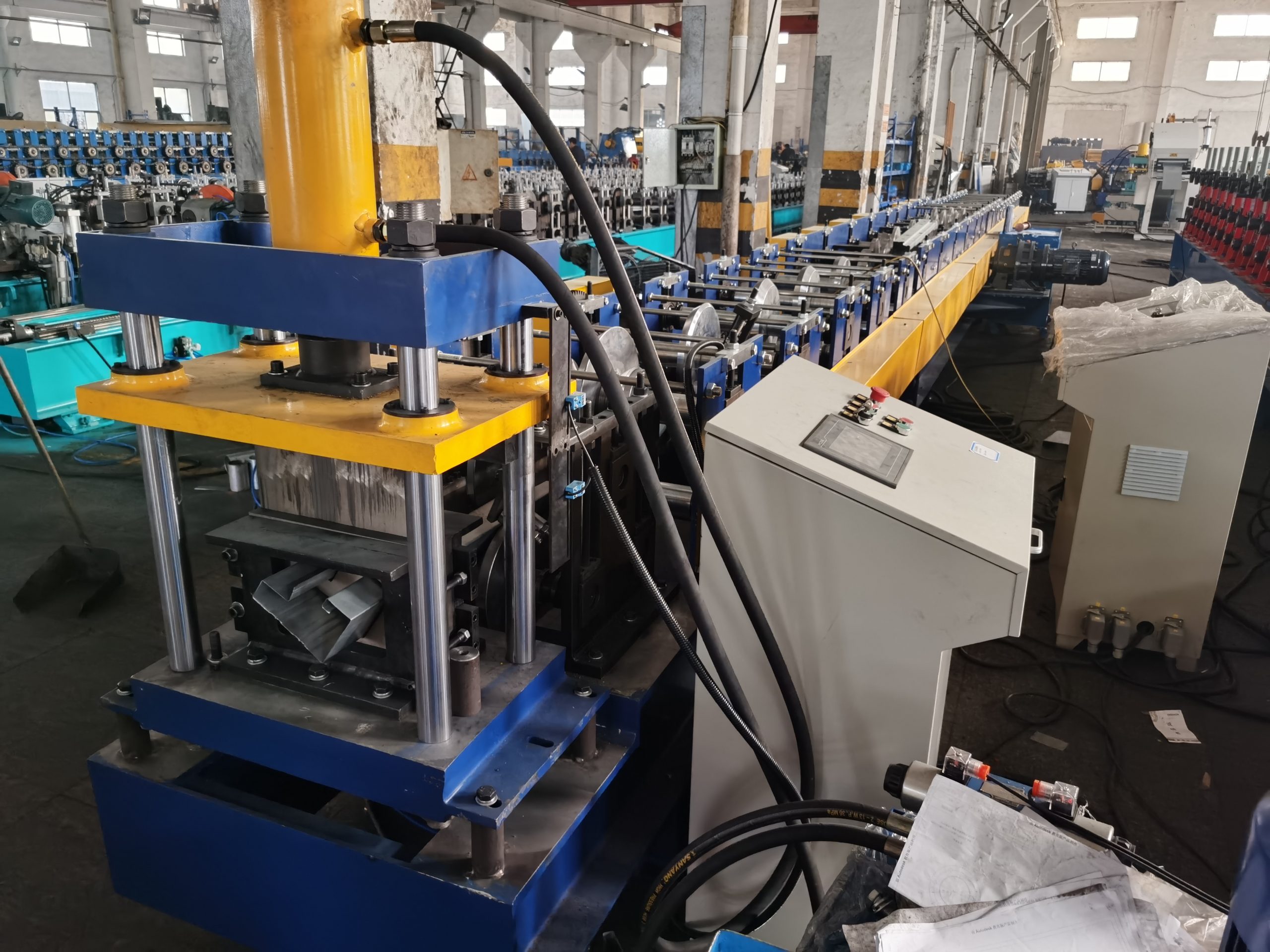

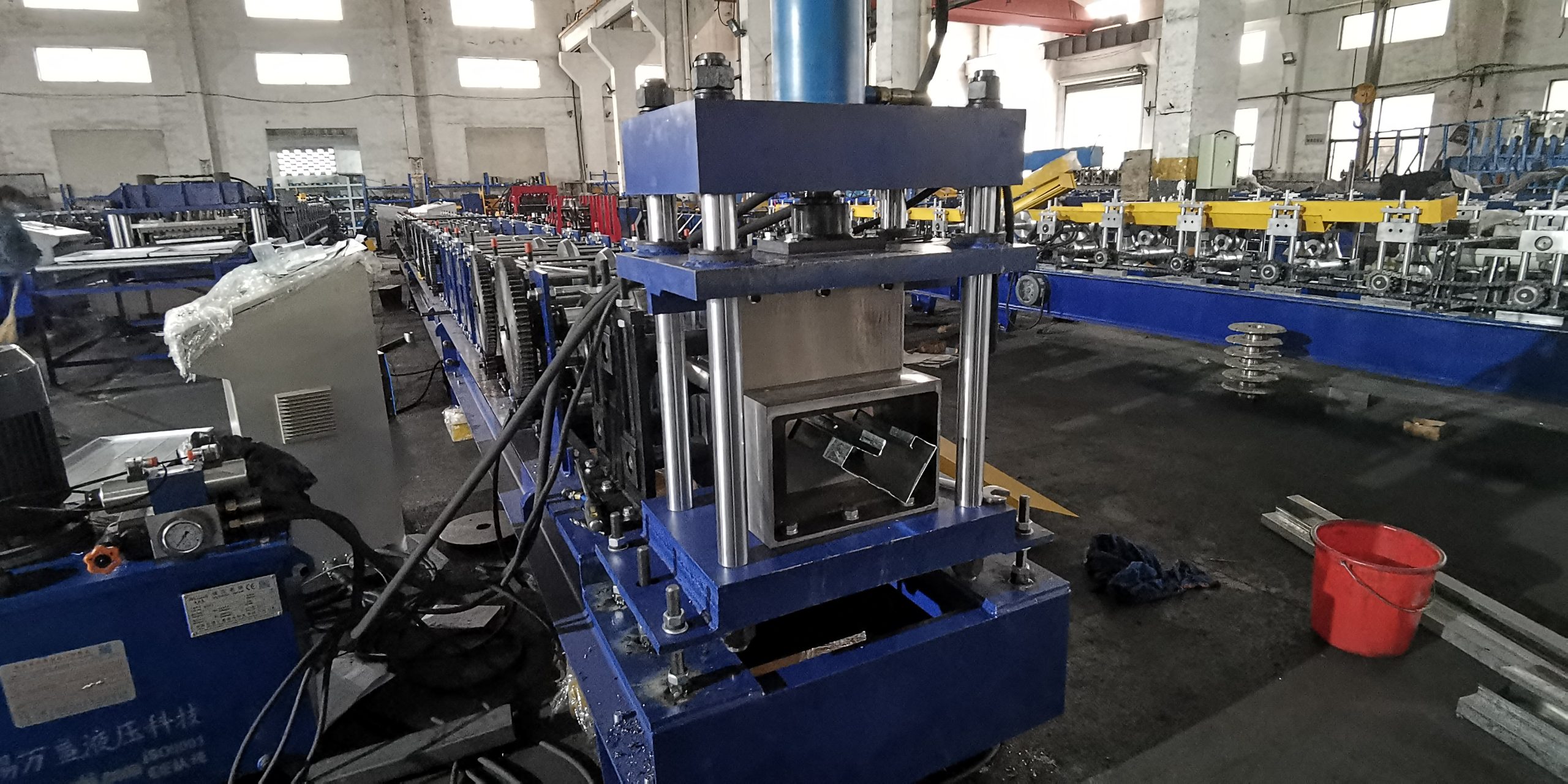

Machine components pictures:
